9 ITA-360 Series User Manual
Chapter 2 H/W Installation
2.3 Jumpers and Connector
2.3.1 Jumper Description
You may configure the ITA-360 to match the needs of your application by setting
jumpers. To close a jumper, you remove the clip. Sometime a jumper will have three
pins, labelled 1, 2 and 3. In this case you would connect either pins 1 and 2, or 2 and
3.

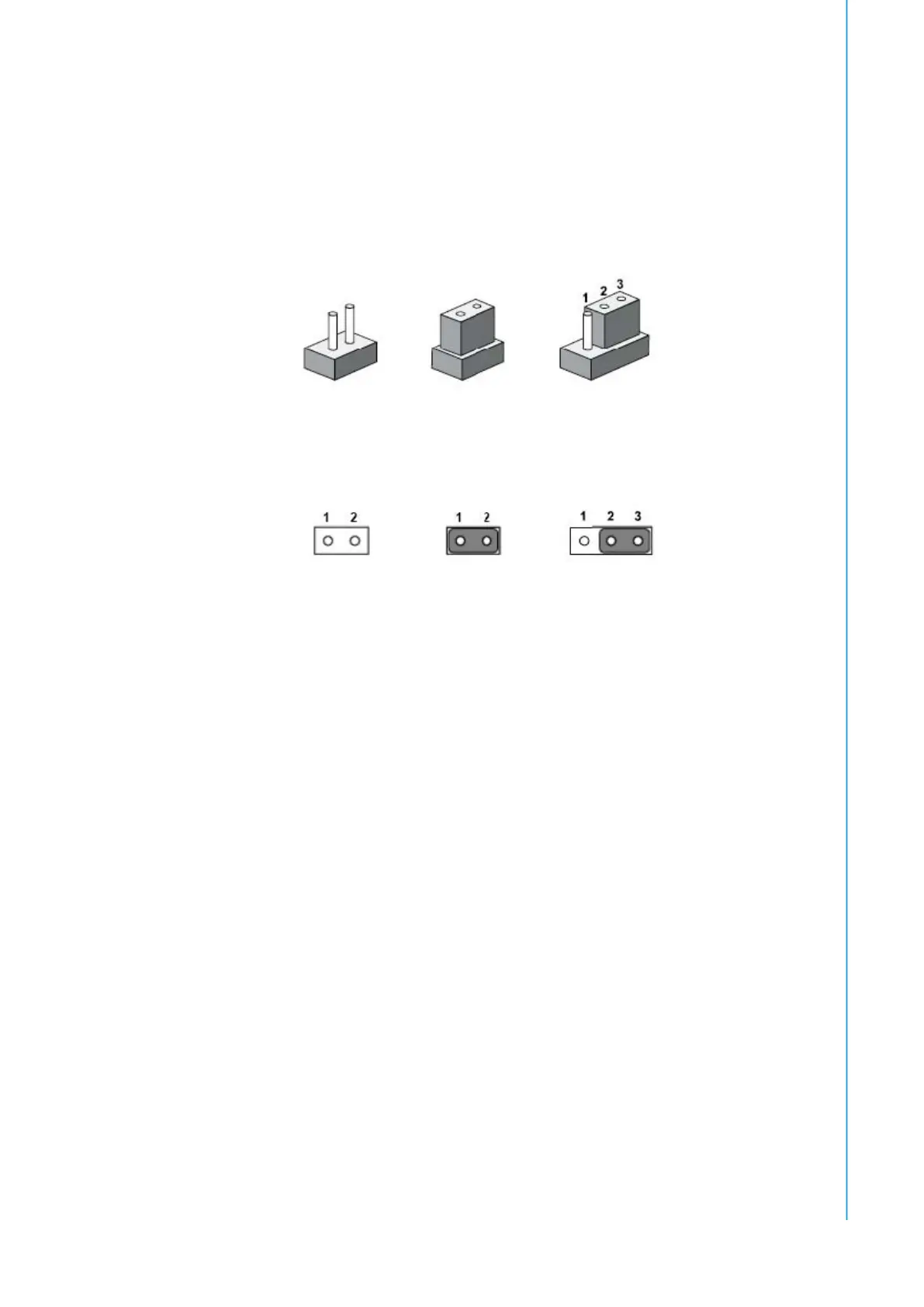

The jumpers setting are schematically depicted in this manual as follows.
A pair of needle-nose pliers may be helpful when working with jumpers. If you have
any doubts about the best hardware configuration for your application, contact your
local distributor or sales representative before you make any changes. Generally, you
simply need a standard cable to make most connections.
Open Closed
2-3 Closed
断开 闭合 闭合2-3
Open Closed
2-3 Closed
