9 ACP-4000/IPC-610 User Manual/ 用户手册
Chapter 2 System Setup/ 系统安装 / 系統安裝
2.1 Removing the Top Cover/ 移除顶盖 / 移除上蓋

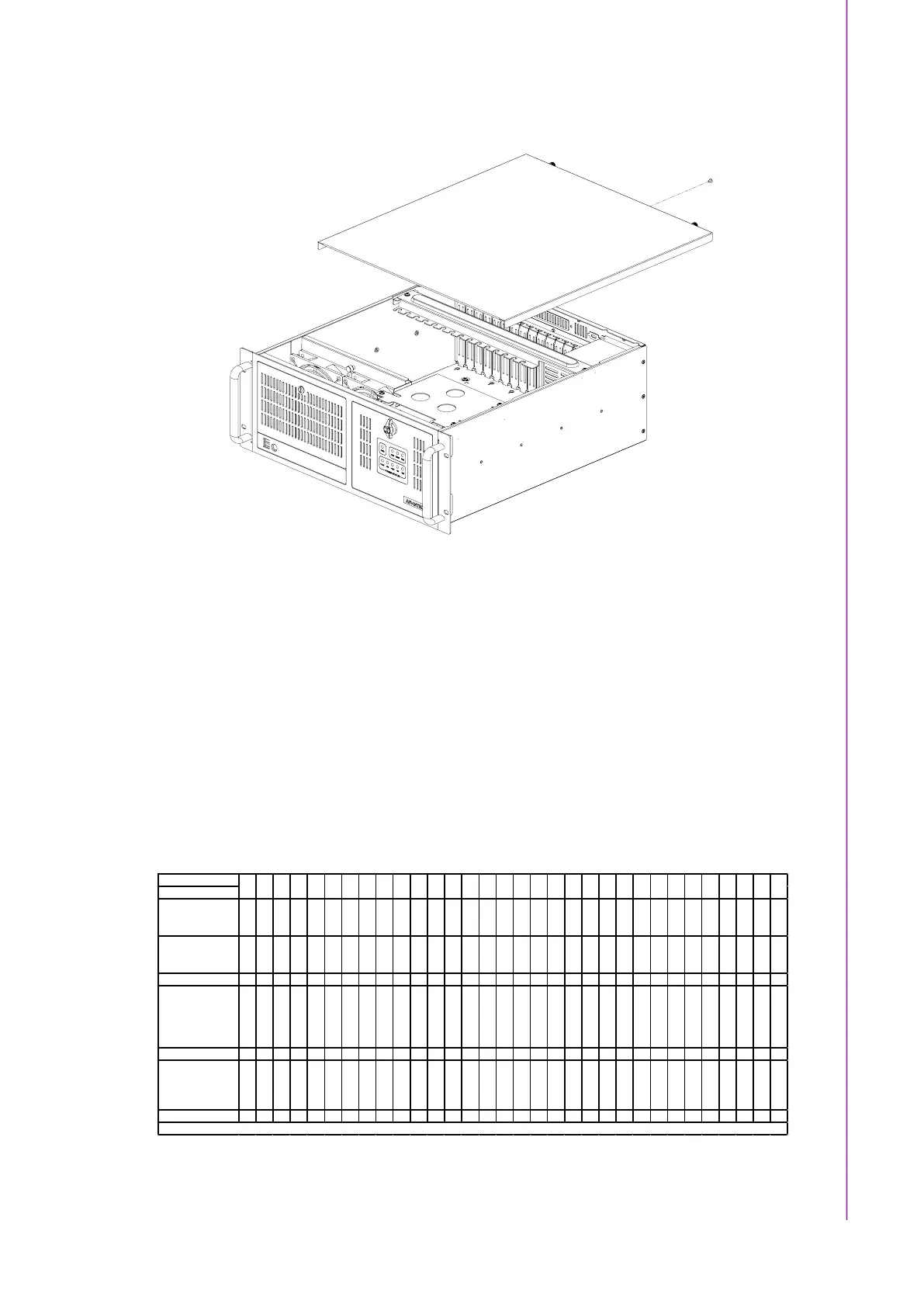

Figure 2.1 Removing the Top Cover/ 移除顶盖 / 移除上蓋
2.2 Installing the Backplane or Motherboard/ 安装底
板或母板 / 安裝背板或主機板
To install backplane or motherboard into the chassis, please find the yellow label in
the chassis and screw the cooper stubs into the correct locations.
安装底板或母板到機箱之前，请先找到机箱上的黄色标签，并将铜柱安装在正确位置。
安裝底板或主機板到機箱之前，請先找到機箱上的黃色標籤，並將銅柱安裝在正確位
置。
Figure 2.2 Yellow Label Indicating Copper Stub Locations/
指示铜柱位置的黄色标签 / 指示銅柱位置的黃色標籤
NUT number
BP/MB model
PCA-6113P4R
PCA-6114P7
PCA-6114P12
***** ******** ****
PCA-6114P4
PCA-6114P10
PCA-6113DP4
***** ******** ** *
PCA-6114 ***** ********
PCE-5B10
PCE-5B12
PCE-5B13
PCE-5B12D
PCE-7B13
***** * ** * * ** * **
AIMB-5 series ** * * * * *
AIMB-7 series
ASMB-7 series
ASMB-805
ASMB-815
*** *** * **
ASMB-816 *** *** ** *
678 C
Max. Torque of copper stub 10kgf.cm
M2019 21 22 23 2417 18 29 A12345 25 26 27 289 1011 151612 13 14
