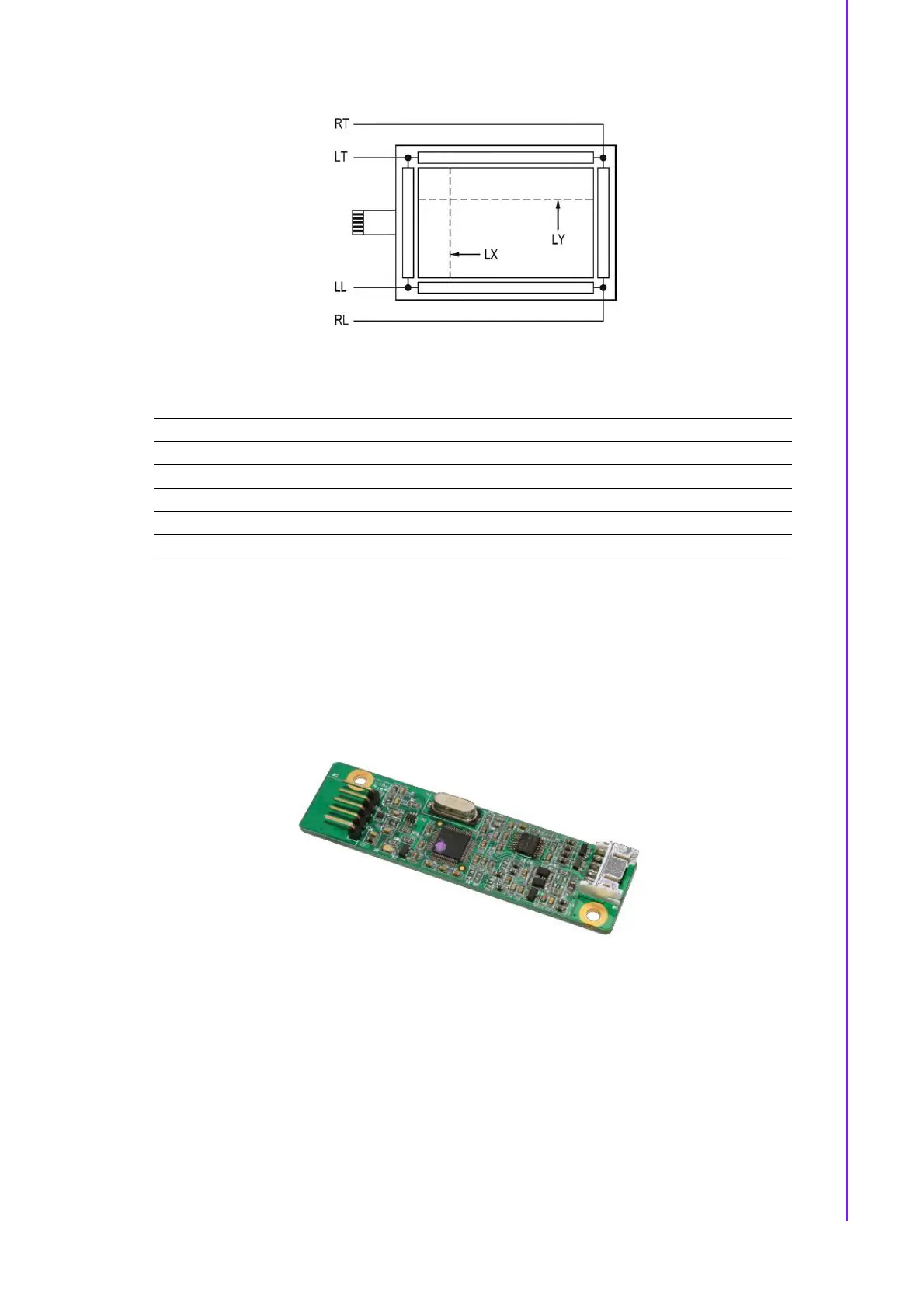

25 IDK-2115 User Manual
Chapter 5 Touchscreen and Touch Controller
5.1.6 General Specifications
5.2 Touch Controller (Optional: For IDK-2115R Only)
Advantech’s ETM-RES04C Touch Control Board is the ultimate combo board. This
touch panel controller provides optimal performance for 5-wire analog resistive touch
panels. It communicates with a PC system directly through USB and RS-232 connec-
tors. The superior design is sensitive, accurate and, friendly to operate. The touch
panel driver emulates mouse left and right button functions.
5.2.1 Touch Controller Characteristics
5.2.1.1 Specifications
Electrical Features
+5 Vdc/ 100 mA typical, 50mV peak to peak maximum ripple and noise.
Bi-directional RS-232 serial communication and USB 1.1 full speed
Report rate of RS-232 is 180 points/sec (max.). And, USB is 200 points/sec
(max.)
Unaffected by environmental EMI
Panel resistance of 5-wire resistive model is from 50 to 200 ohm (Pin to pin on
same layer)
Item Specifications
1 Frame Size 322.000.30 X 245.500.30 mm
2 View Area 309.000.30 X 233.500.20 mm
3 Active Area 303.000.30 X 227.500.20 mm
4 Total Thickness 2.200.20 mm
5 Tail Length 205.006.00 mm
