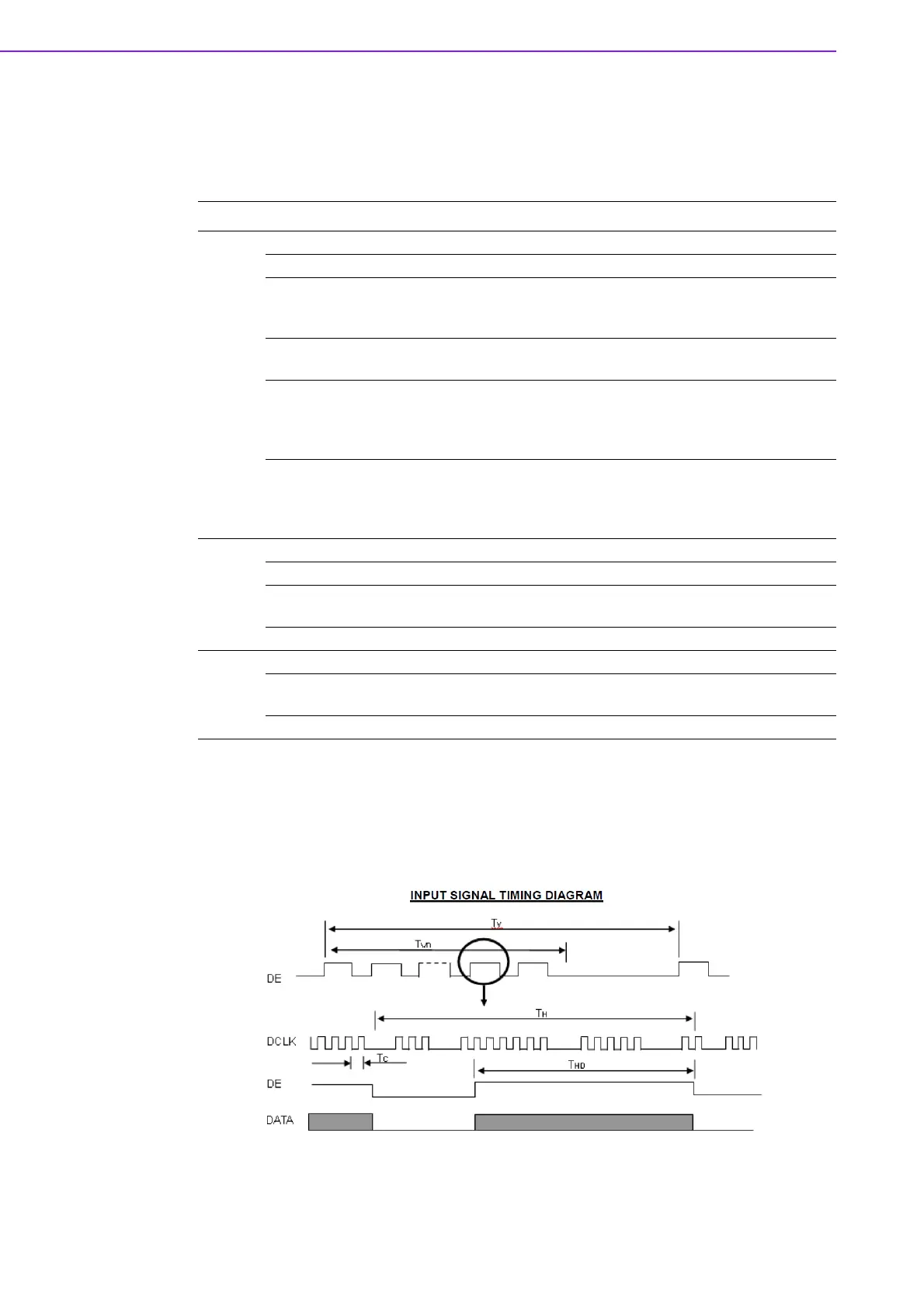

4.1 INPUT SIGNAL TIMING SPECIFICATIONS
The input signal timing specifications are shown in the following table and timing dia-
gram.
Note(1): Because this module is operated by DE only mode, Hsync and Vsync input
signals should be set to low logic level or ground. Otherwise, this module will operate
abnormally.
Note(2): The Tv(Tvd+Tvb) must be integer, otherwise, the module will operate abnor-
mally.
Signal Item Symbol Min. Typ. Max. Unit Note
LVDS
Clock
Frequency Fc 53.35 65 80 MHz
Period Tc 12.5 15.38 18.75 ns
Input Cycle
to Cycle Jit-
ter
T
rcl
- - 200 ns (a)
Input Clock
to Data Skew
TLVCCS -0.02*Tc - 0.02*Tc ns (b)
Spread
Spectrum
Modulation
Range
F
clkin_
mod
- - 1.02*Fc MHz (c)
Spread
Spectrum
Modulation
Frequency
F
SSM
--200KHz
Vertical
Display
Term
Frame Rate Fr 55 60 70 Hz Tv=Tvd+Tvb
Total Tv 780 806 840 Th -
Active
Display
Tvd 768 768 768 Th -
Blank Tvb Tv-Tvd 38 Tv-Tvd Th -
Horizon-
tal Dis-
playTer
m
Total Th 1240 1344 1360 Tc Th=Thd+Thb
Active
Display
Thd 1024 1024 1024 Tc -
Blank Thb Th-Thd 320 Th-Thd Tc -
