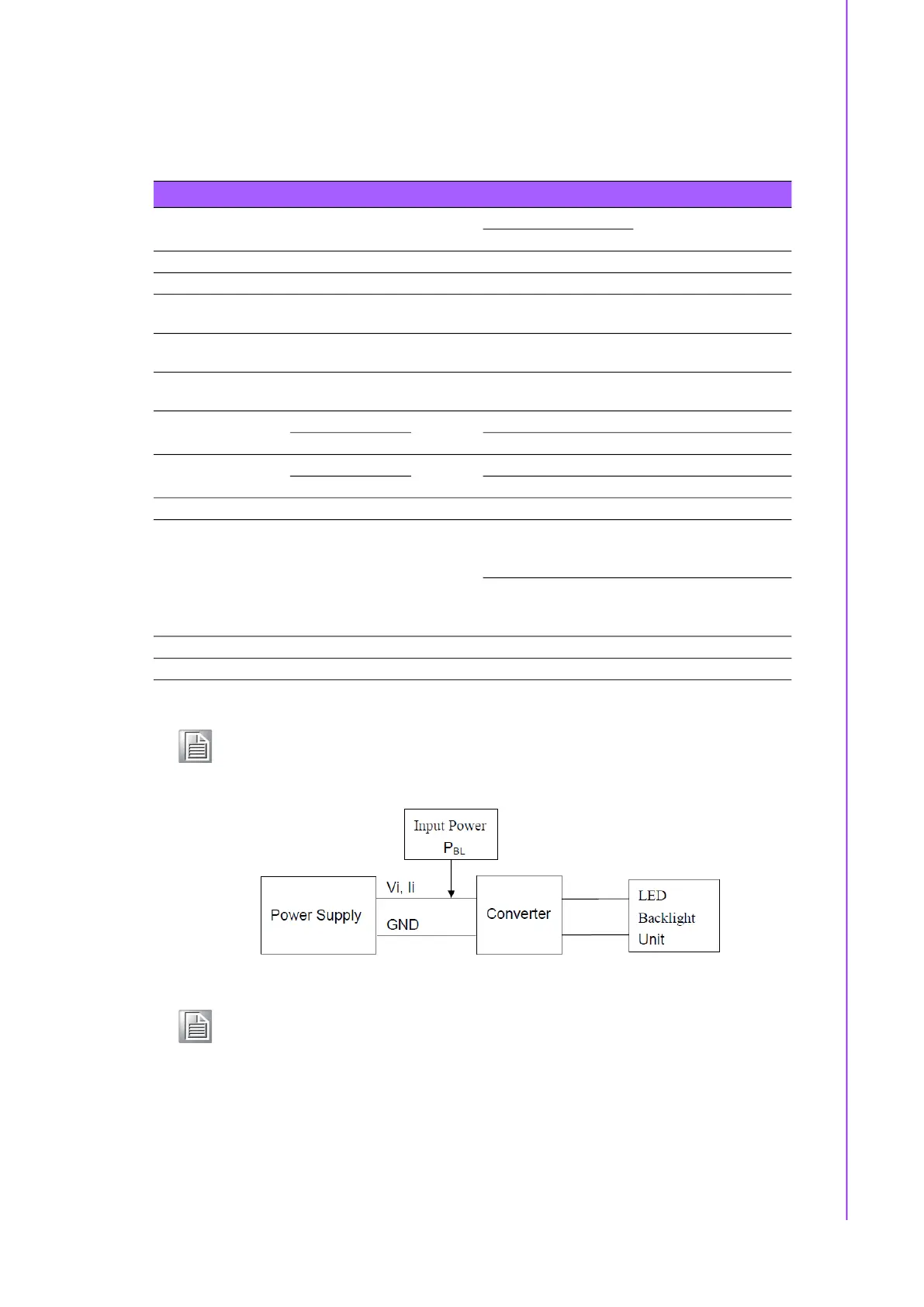

9 IDK-2110P-1KXGA1 User Manual
Chapter 2 LCD Display
2.4 Backlight Unit
The following characteristics are measured under a stable condition at 25°C (77°F).
Table 2.2: Backlight Driving Conditions
Parameter Symbol
Values
Unit Note
Min. Typ. Max.
Converter Power Supply Voltage Vi 10.8 12 13.2 V
Converter Power Supply Ripple Voltage ViRP - - 350 mV
Converter Power Supply Current Ii - 0.67 0.79 A
@ Vi = 12V
(Duty 100%)
Converter Inrush Current IiRUSH - - 3.0 A
@ Vi rising time
=10ms (Vi =12V)
Backlight Power Consumption PBL - 8.2 9.5 W
@ Vi = 12V
(Duty 100%)
EN Control Level
Backlight On
BLON
2.5 3.3 5 V
Backlight Off 0 - 0.3 V
PWM Control Level
PWM High Level
E_PWM
2.5 3.3 5 V
PWM Low Level 0 - 0.15 V
PWM Noise Range VNoise - - 0.1 V
PWM Control Duty Ratio
-
5 - 100 %
(2), Suggestion,
@190Hz<f
PWM
<
1kHz
20 - 100 %
(2), @
1kHz<f
PWM
<
20kHz
PWM Control Frequency fPWM 190 200 20k Hz (3)
LED Lifetime LL 50,000 - - Hrs (2)
Note (1) LED current is measured by utilizing a high-frequency current meter as
shown below:
Note (2) At 190 ~1kHz PWM control frequency, the duty ratio range is restricted
from 5% to 100%.
At 1K ~20kHz PWM control frequency, the duty ratio range is restricted
from 20% to 100%.
If PWM control frequency is applied in the range from 1KHz to 20KHZ,
the "non-linear" phenomenon on the Backlight Unit may be found. It is
suggested that PWM control frequency be less than 1KHz.
