IDK-2110 User Manual 4

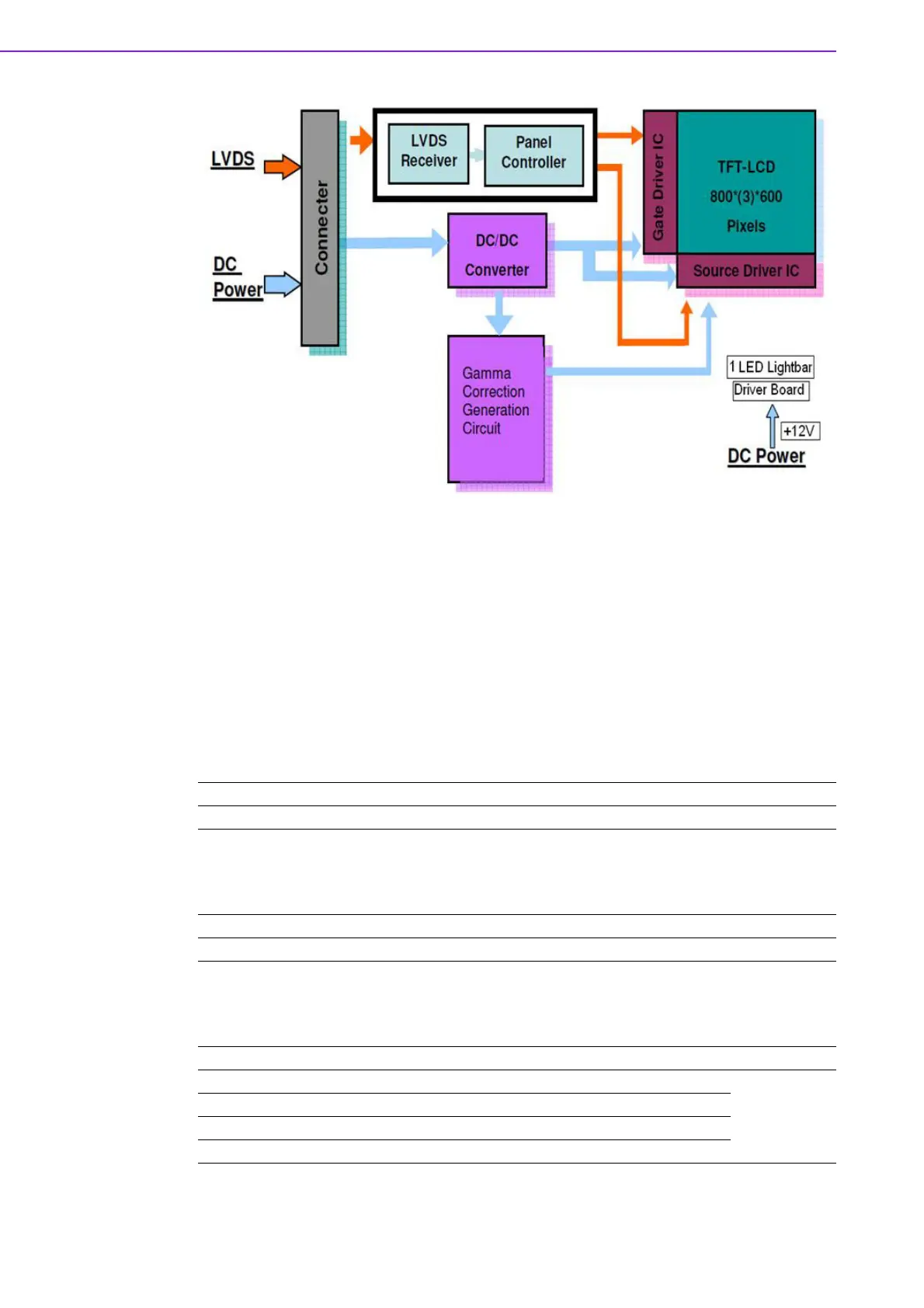

Figure 1.1 Function block diagram
1.5 Touch Screen driver
The T/S driver CD-ROM is in the accessory box and comes with the product.
1.6 Absolute Maximum Ratings
Absolute maximum ratings of the module is as following:
1.6.1 Absolute Ratings of TFT LCD Module
1.6.2 Absolute Ratings of Backlight Unit
1.6.3 Absolute Ratings of Environment
Note1: Maximum Wet-Bulb should be 39°C and no condensation.
Note2: Permanent damage to the device may occur if exceed maximum values.
Item Symbol Min. Max. Unit Conditions
Logic/LCD Drive Voltage Vin 0.3 +4.0 [Volt] Note 1, 2
Item Symbol Min. Max. Unit Conditions
LED Light Bar Current ILed 690 700 [mA] Note 1, 2
Item Symbol Min. Max. Unit Conditions
Operating Temperature TOP -10 60 [of]
Operation Humidity HOP 8 90 [%RH]
Storage Temperature TST -20 70 [of]
Storage Humidity HST 10 90 [%RH]
