29 IDK-2108 User Manual
Appendix A Optical Characteristics

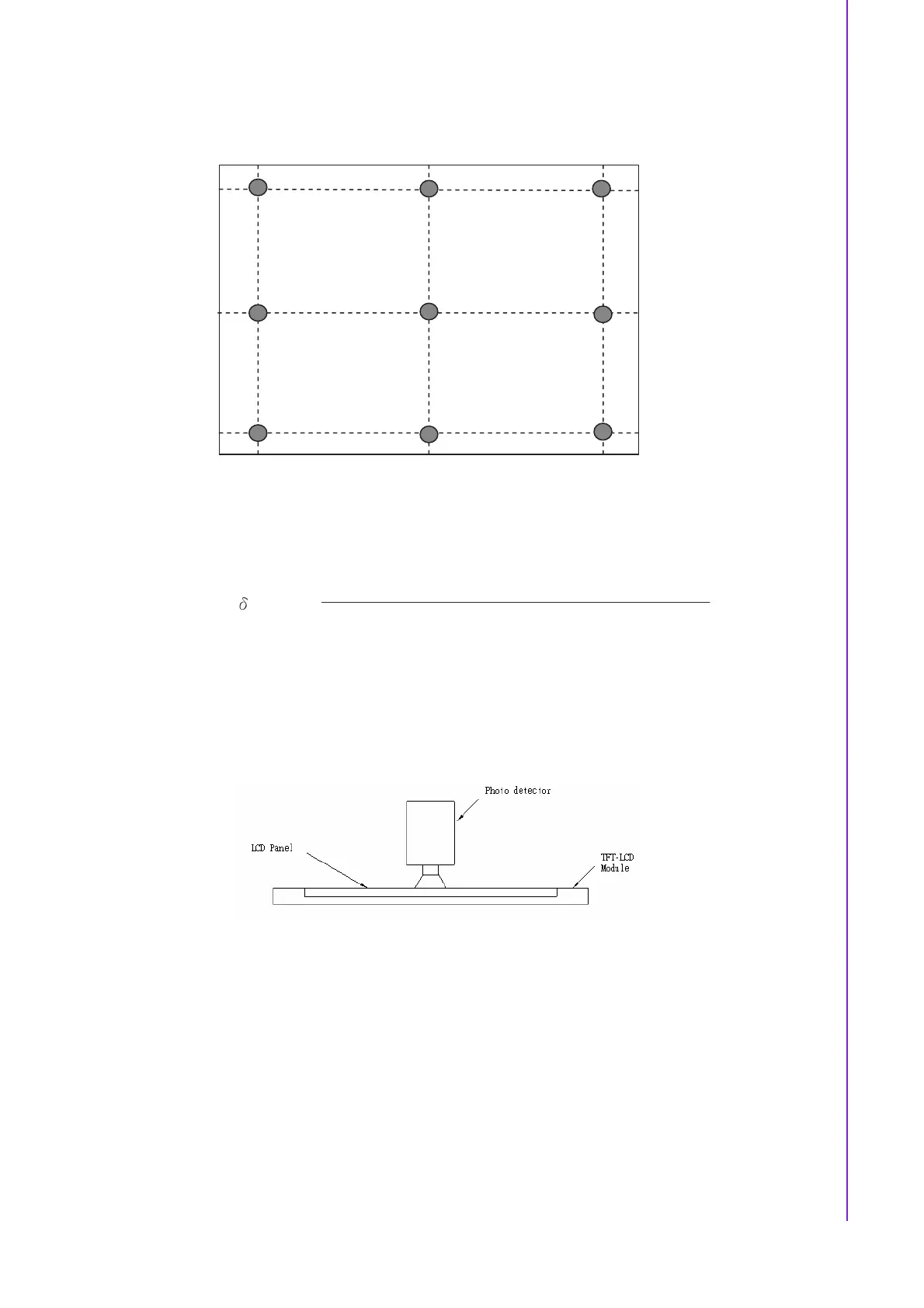

Note 2: 9-point position
Note 3: The luminance uniformity of 9 points is defined by dividing the maximum
luminance values by the minimum test point luminance
Note 4: Measurement method
The LCD module should be stabilized at a given temperature for 30 minutes to avoid
abrupt temperature changes during measuring. In order to stabilize the luminance,
the measurement should be executed after the backlight has been lit for 30 minutes
in a stable, windless and dark room using optical equipment: DT-100 or equivalent.
50 %
90 %
90 %
50 %
10 %
10 %
Minimum Bri
g
htness of nine points
W9
=
Maximum Bri
g
htness of nine points
