IDK-2108 User Manual 10

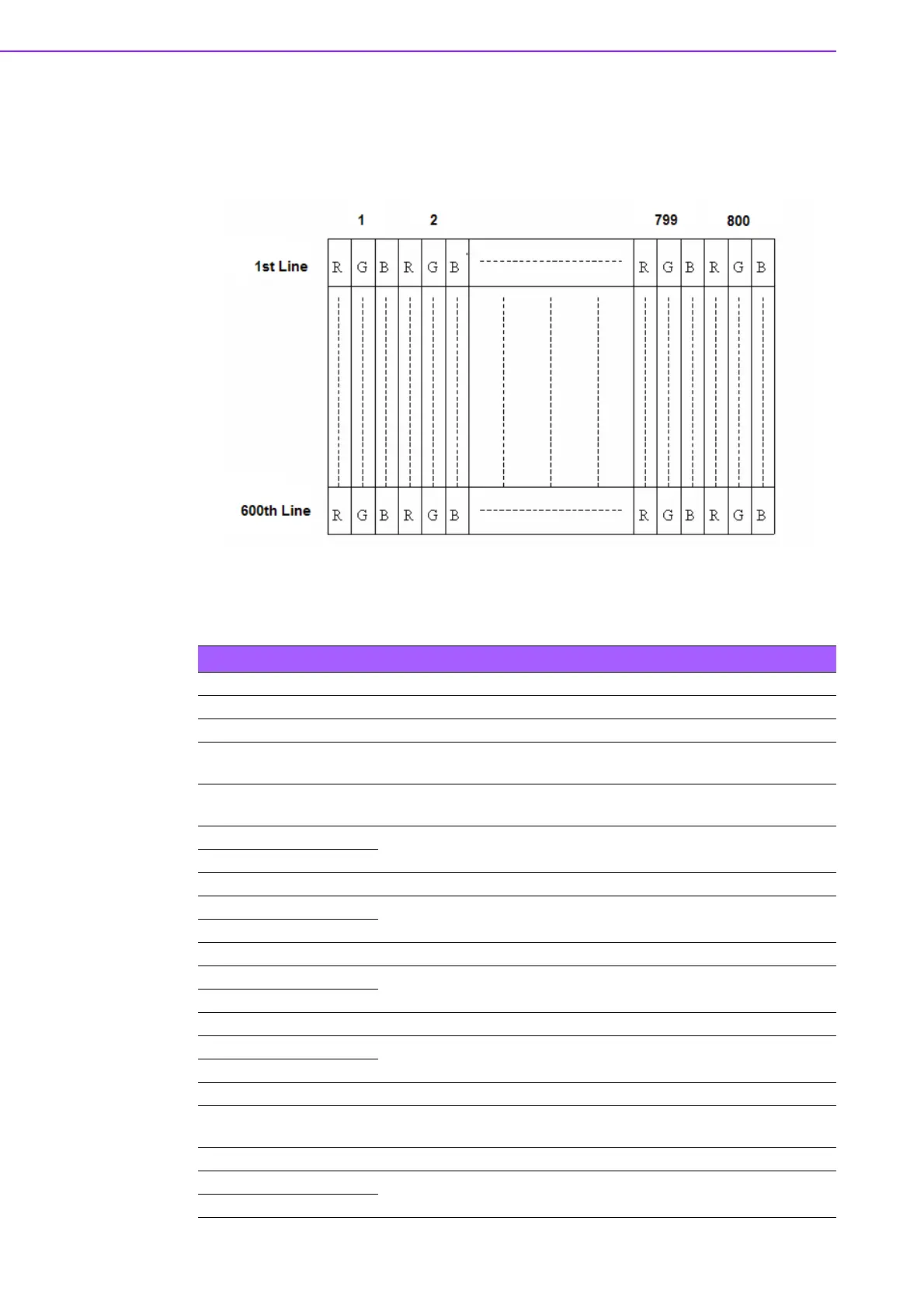

3.1 Pixel Format Image
The following figure shows the relationship between the input signal and LCD
pixel format.
3.2 Signal Description
Table 3.1: Symbol Description
Pin No. Symbol Description
1 VDD Power Supply, 3.3V (typical)
2 VDD Power Supply, 3.3V (typical)
3 UD Vertical Reverse Scan Control. Low or NC -> Normal mode,
Height -> Vertical Reverse Scan (Note)
4 LR Horizontal Reverse Scan Control. Low or NC -> Normal mode,
Height -> Vertical Reverse Scan (Note)
5RxIN1-
LVDS differential data input Pair 0
6RxIN1+
7 GND Ground
8RxIN2-
LVDS differential data input Pair 1
9RxIN2+
10 GND Ground
11 RxIN3-
LVDS differential data input Pair 2
12 RxIN3+
13 GND Ground
14 RxCLKIN-
LVDS differential Co-lock input Pair
15 RxCLKIN+
16 GND Ground
17 SEL68 LVDS 6/8 bit select function control, Low or NC 6 Bit Input Mode.
High 8-bit Input Mode (Node)
18 NC NC
19 RxIN4-
LVDS differential data input Pair 3. Must be connected to Ground
in 6-bit input mode.
20 RxIN4+
