IDK-1115WP-45FHA2 User Manual 10
2.5 LVDS Input Signal Specifications
2.5.1 LVDS Data Mapping Table
Note (2)

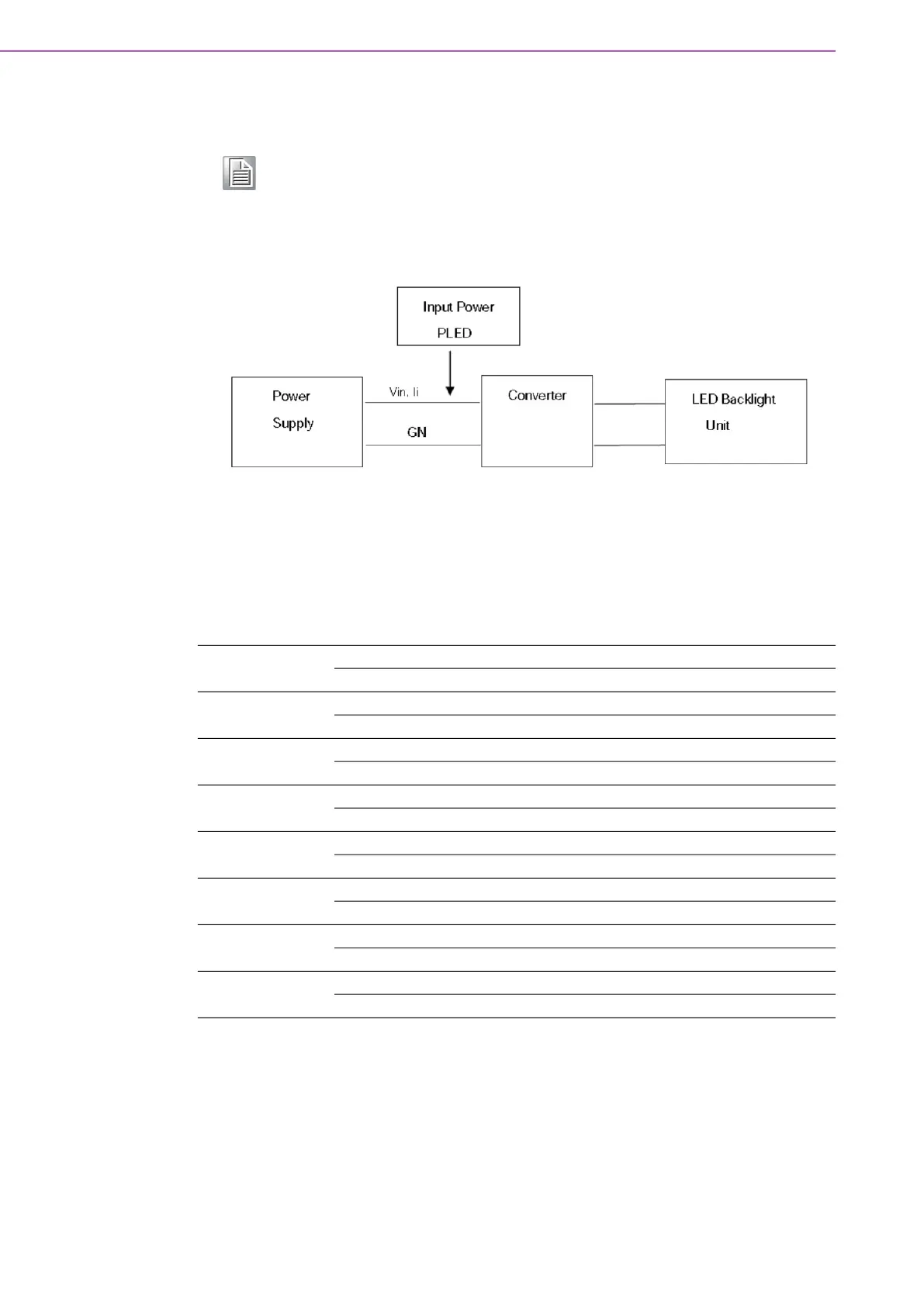

The lifetime of LED is estimated data and defined as the time when it continues
to operate under the conditions at Ta = 25 ± 2
°C (75 ± 3.6 °F) and Duty 100%
until the brightness becomes
≤ 50% of its original value.
Operating LED under high temperature environment will reduce life time and
lead to color shift
LVDS Channel O0
LVDS output D7 D6 D4 D3 D2 D1 D0
Data order OG0 OR5 OR4 OR3 OR2 OR1 OR0
LVDS Channel O1
LVDS output D18 D15 D14 D13 D12 D9 D8
Data order OB1 OB0 OG5 OG4 OG3 OG2 OG1
LVDS Channel O2
LVDS output D26 D25 D24 D22 D21 D20 D19
Data order DE NA NA OB5 OB4 OB3 OB2
LVDS Channel O3
LVDS output D23 D17 D16 D11 D10 D5 D27
Data order NA OB7 OB6 OG7 OG6 OR7 OR6
LVDS Channel E0
LVDS output D7 D6 D4 D3 D2 D1 D0
Data order EG0 ER5 ER4 ER3 ER2 ER1 ER0
LVDS Channel E1
LVDS output D18 D15 D14 D13 D12 D9 D8
Data order EB1 EB0 EG5 EG4 EG3 EG2 EG1
LVDS Channel E2
LVDS output D26 D25 D24 D22 D21 D20 D19
Data order DE NA NA EB5 EB4 EB3 EB2
LVDS Channel E3
LVDS output D23 D17 D16 D11 D10 D5 D27
Data order NA EB7 EB6 EG7 EG6 ER7 ER6
