IDK-1115WP-45FHA2 User Manual 6

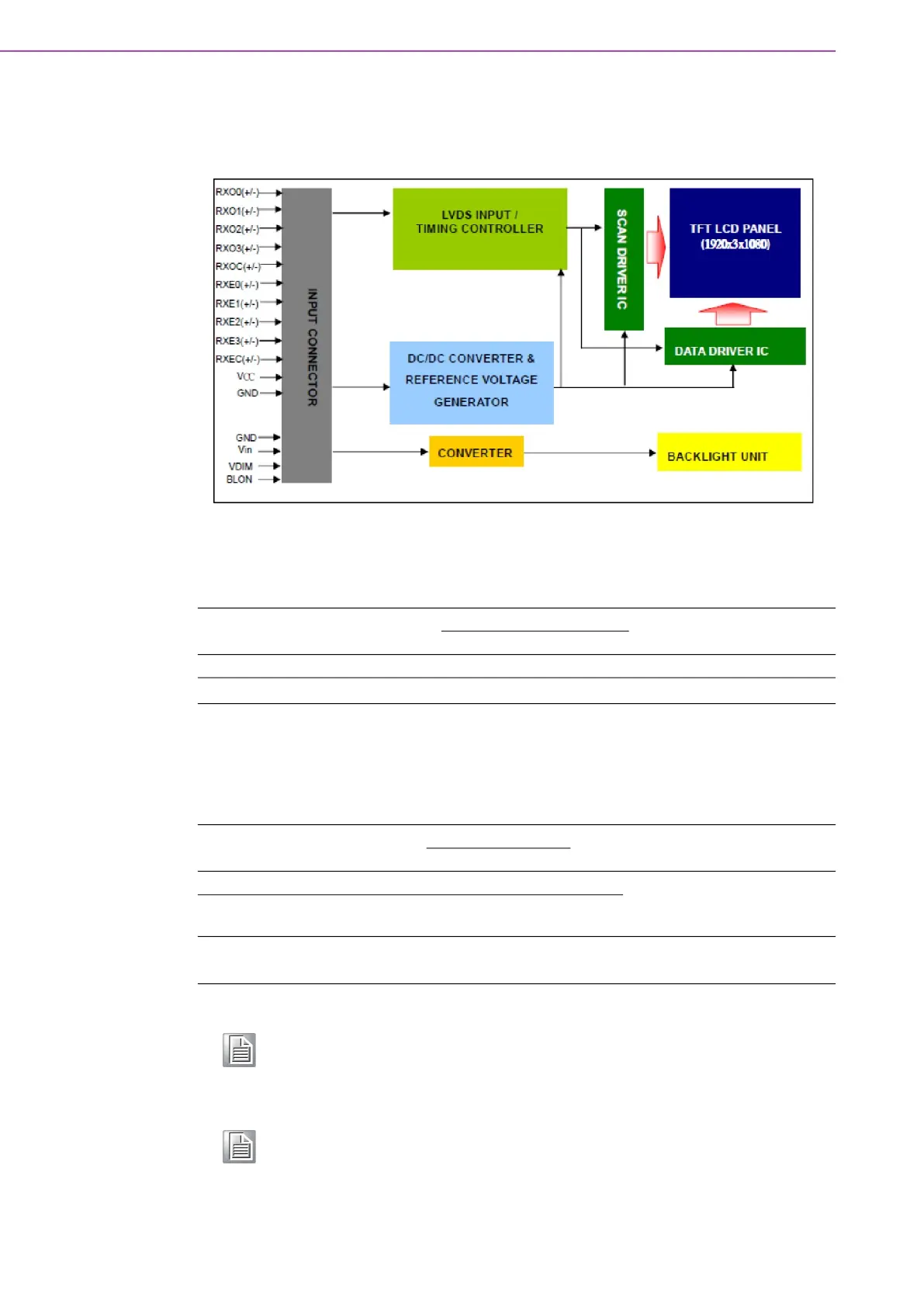

2.1 Functional Block Diagram
The following diagram details the 15.6” FHD Color TFT-LCD Module functional block.
2.2 Absolute Maximum Ratings
2.2.1 TFT LCD Module
2.2.1.1 Backlight Unit
Item Symbol
Value
Unit Note
Min. Max
Power Supply Voltage Vdc -0.3 3.6 V (1)
Logic Input Voltage
V
IN
-0.3 4 V
Item Symbol
Value
Unit Note
Min. Typ. Max.
Converter Voltage LED_Vin 0 12 18 V
(1), (2) Duty=100%
Enable Voltage
LED
LED_EN 0 3.3/5 7 V
Backlight Adjust LED_PWM 0 3.3/5 7 V
(1), (2) PulseWidth
10msec.
and Duty10%
Note (1) Permanent damage to the device may occur if maximum values are
exceeded. Operation should be restricted to the conditions described
under Normal Operating Conditions.
Note (2)
Specified values are for input pin of LED light bar at Ta= 25 ± 2 °C (75 ± 3.6 °F)
