25 IDK-1112P-50XGA2 User Manual

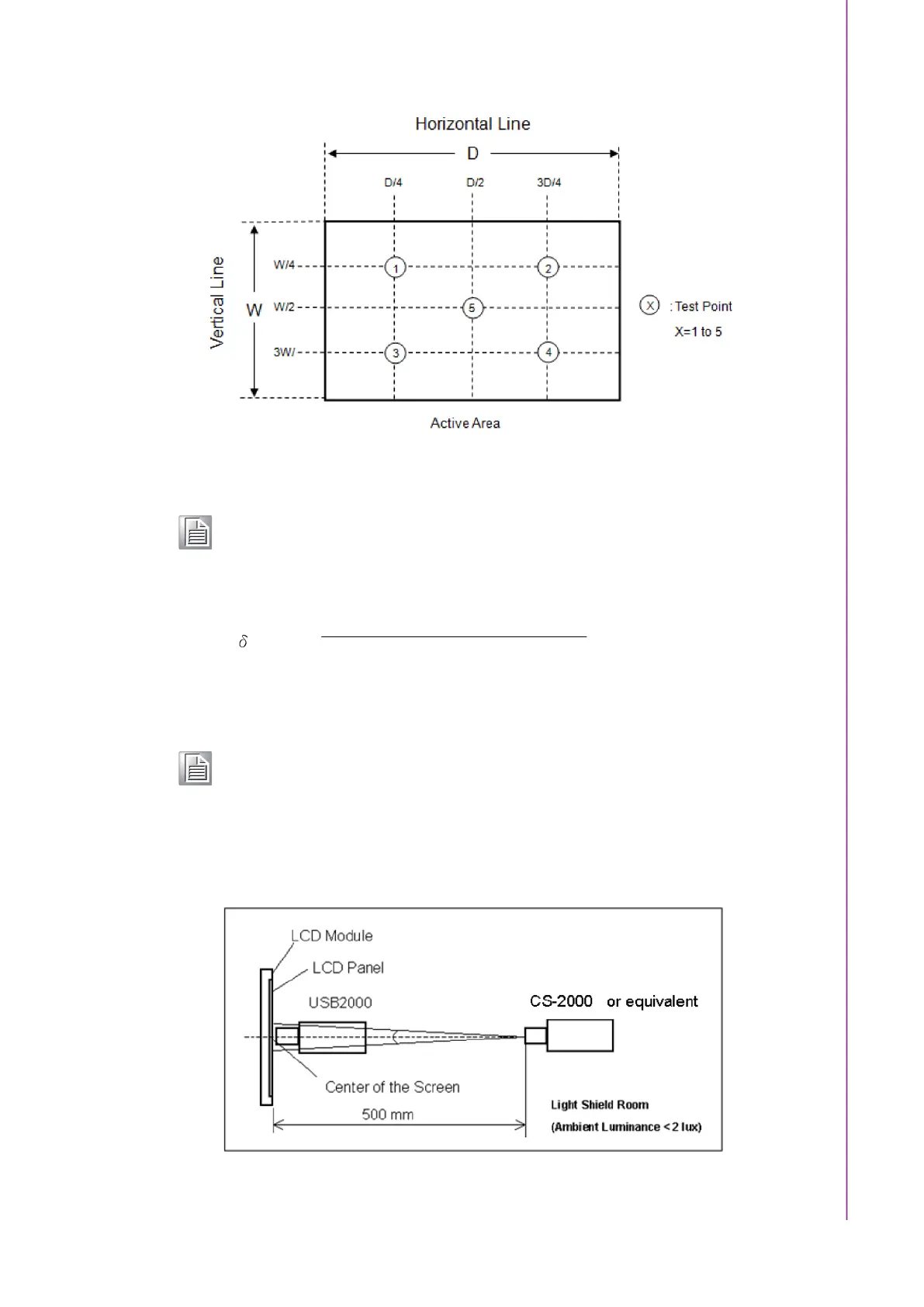

Appendix A LCD Optical Characteristics
Note! 5-point luminance uniformity is defined by dividing the maximum lumi-
nance values by the minimum test point luminance
Note! Measurement method
The LCD module should be stabilized at given temperature for 20 min-
utes to avoid abrupt temperature change during measuring. In order to
stabilize the luminance, the measurement should be executed after
lighting the backlight for 20 minutes in a stable, windless, and dark
room.
W5
=
Maximum [L (1) ~ L (5)]
Minimum [L (1) ~ L (5)]
