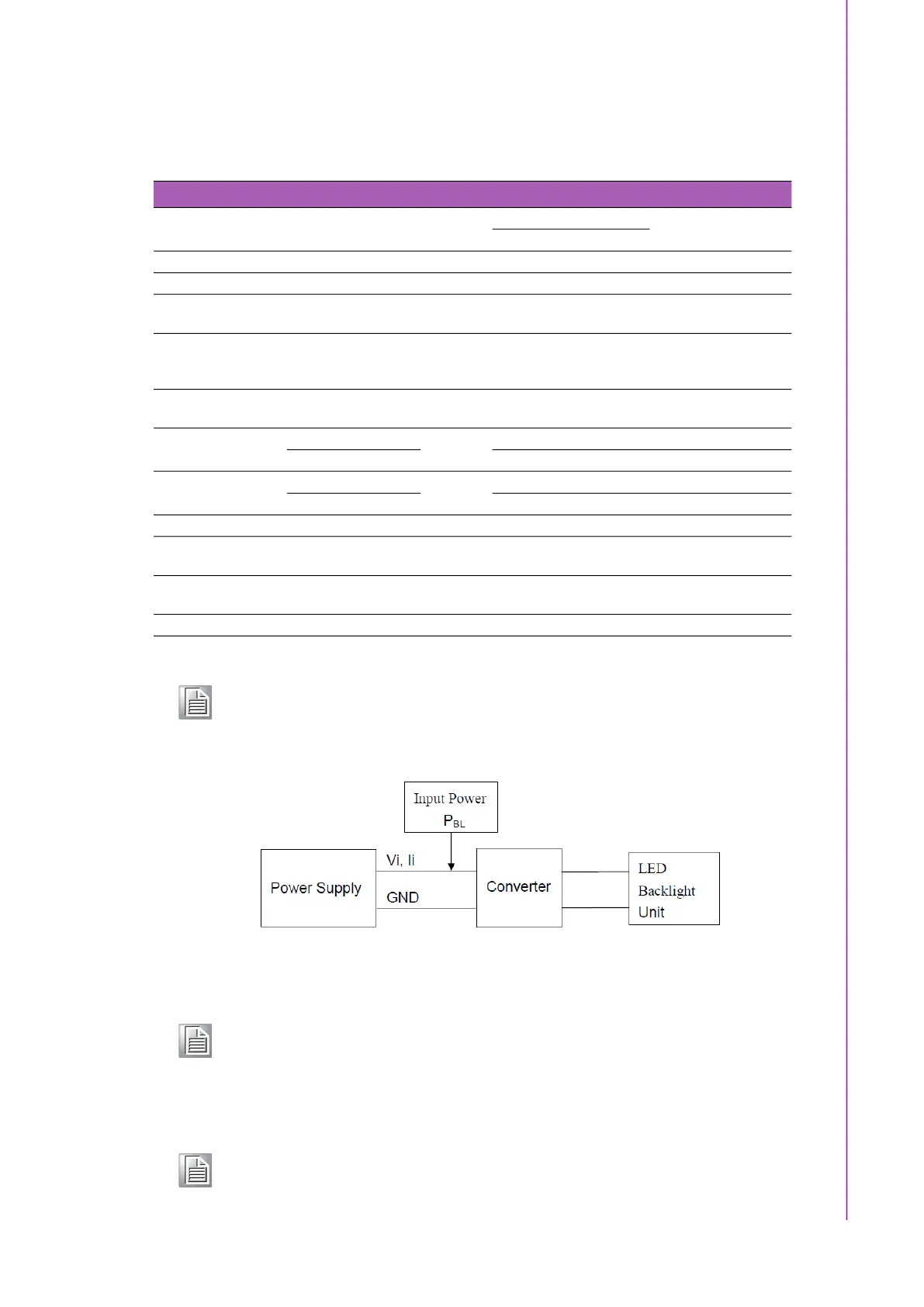

9 IDK-1112P-50XGA2 User Manual
Chapter 2 LCD Display
2.4 Backlight Unit
The following characteristics are measured under stable conditions at 25 °C (77 °F)
Table 2.2: Backlight Driving Conditions
Parameter Symbol
Values
Unit Note
Min. Typ. Max.
Converter Power Supply Voltage Vi 10.8 12 13.2 V
Converter Power Supply Ripple Voltage ViRP - - 500 mV
Converter Power Supply Current Ii - 0.7 0.85 A
@ Vi = 12V
(Duty 100%)
Converter Inrush Current IiRUSH - - 3.0 A
@ Vi rising
time =10ms
(Vi =12V)
Backlight Power Consumption PBL - 8.4 10.2 W
@ Vi = 12V
(Duty 100%)
EN Control Level
Backlight On
BLON
2.5 3.3 5 V
Backlight Off 0 - 0.3 V
PWM Control Level
PWM High Level
E_PWM
2.5 3.3 5 V
PWM Low Level 0 - 0.15 V
PWM Noise Range VNoise - - 0.1 V
PWM Control Duty
Ratio
-
2 - 100 % @200Hz
PWM Control Fre-
quency
fPWM 190 200 20k Hz (3)
LED Life Time LL 30,000 - - Hrs (2)
Note (1) LED current is measured by utilizing a high frequency current meter as
shown below:
Note (2) LED lifetime is estimated data and defined as the time the device
endures continued operation under Ta = 25 ± 2 °C conditions at 100%
duty until the brightness becomes
≤50% of its original value. Operating
an LED at high temperature conditions reduces lifetime and leads to
color shifts.
Note (3) At 200Hz PWM control frequency, duty ratio range is restricted from 2 to
100%, When PWM control frequency is 20kHz, duty ratio range is
restricted from 10 to 100%.
