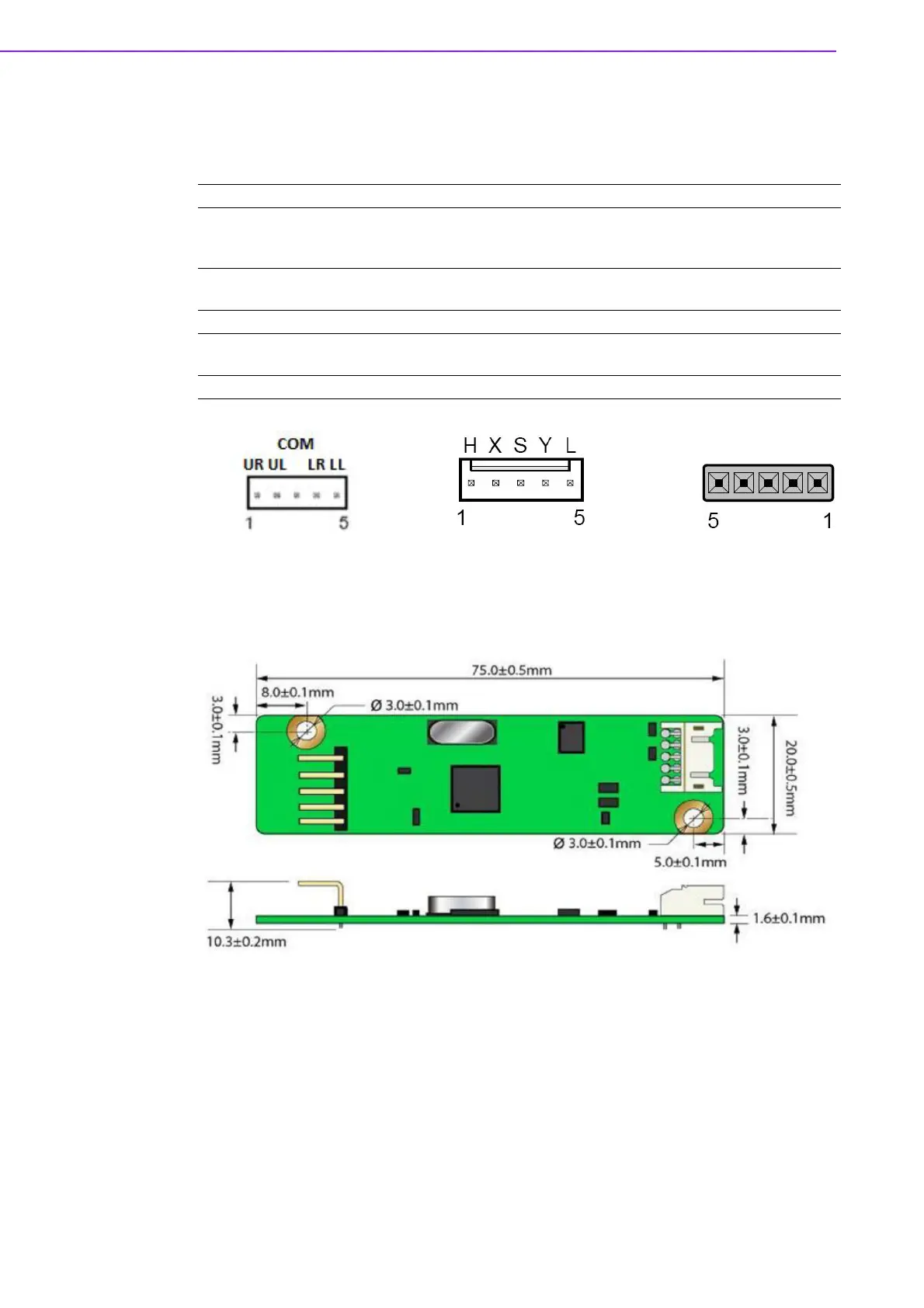

IDK-1112R-50XGA1 User Manual 28
4.2.3 Touch Screen Connector, JP2, Pins and Signal Descriptions
The Touch Screen connector, JP2, is a single row by 2.54mm 5-pins 90 degree, Male
type connector. The pins are numbered as shown in the table below.
4.3 Physical Dimension
ETM-RES04C-EEH4EE Touch Control Board (Unit: mm)
JP2 Pin # Signal Name Signal Description
1 H / UR Drive signal attached to the touchscreen substrate
upper right corner when viewed from a user's perspec-
tive.
2 Y / UL Drive signal attached to the substrate upper left cor-
ner.
3COM-
4 X / LR Drive signal attached to the substrate lower right cor-
ner.
5 L / LL Drive signal attached to the substrate lower left corner.
