19 IDK-1112R-50XGA1 User Manual
Chapter 2 LCD Display
2.10 Scanning Direction

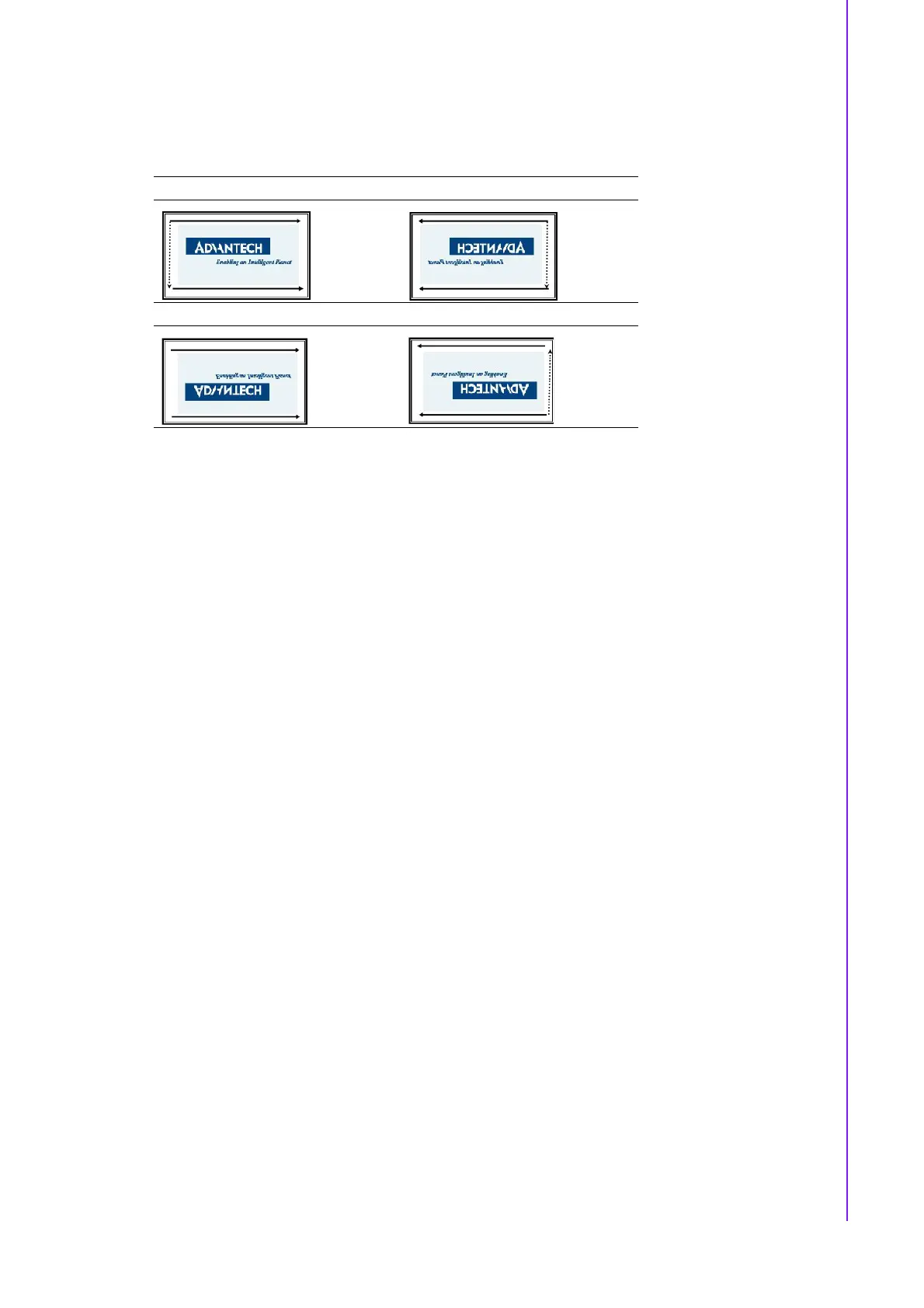

The following figures show the image seen from the front view. The arrow indicates
the direction of the scan.
Fig. 1 Normal scan ( pin 17, reLR = Low, pin 18, reUD = Low )
Fig. 2 Reverse scan ( pin 17, reLR = High, pin 18, reUD = Low )
Fig. 3 Reverse scan ( pin 17, reLR = Low, pin 18, reUD = High )
Fig. 4 Reverse scan ( pin 17, reLR = High, pin 18, reUD = High )
Fig.1 Normal Scan Fig.2 Reverse Scan
Fig.3 Reverse Scan Fig.4 Reverse Scan
