IDK-1112R-50XGA1 User Manual 6

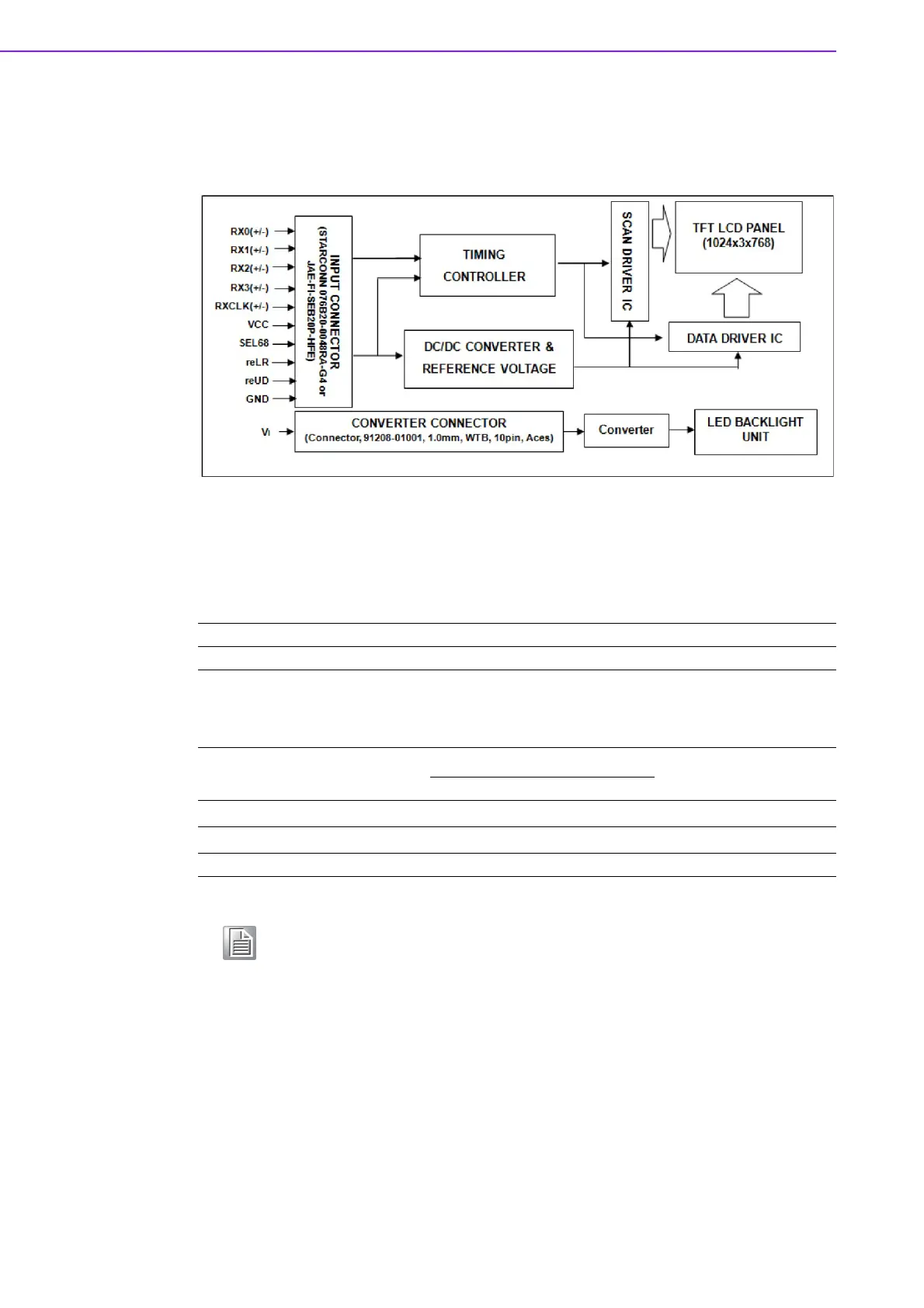

2.1 Functional Block Diagram
The following diagram shows the functional block of the 12.1" Color TFT-LCD Mod-
ule:
2.2 Absolute Maximum Ratings
2.2.1 TFT LCD Module
2.2.2 Backlight Unit
Item Symbol Min. Max. Unit Note
Power Supply Voltage VCC -0.3 4 [Volt]
Item Symbol
Value
Unit Note
Min. Max.
Converter Voltage
V
i
-0.3 18 [Volt]
Enable Voltage EN - 5.5 [Volt]
Backlight Adjust ADJ - 5.5 [Volt]
Note! Permanent damage to the device may occur if maximum values are
exceeded. Function operation should be restricted to the conditions
described under Normal Operating Conditions.
