IDK-1110R User Manual 16

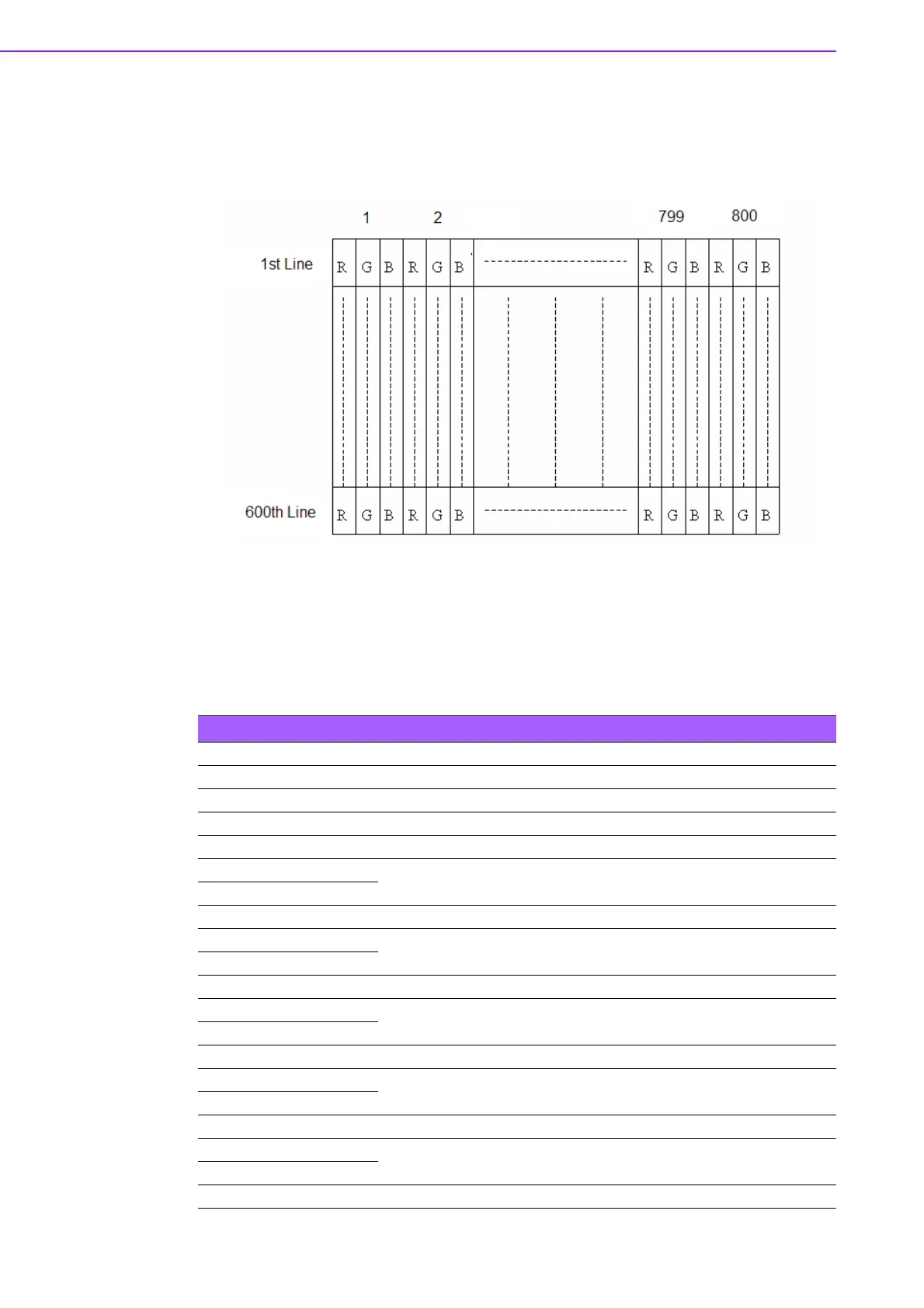

3.1 Pixel Format Image
Following figure shows the relationship between input signal and LCD pixel
format.
3.2 Pin Description
LVDS is a differential signal technology for LCD interface and high speed data trans-
fer device. The connector pin definition is as below.
Note “Low” stands for 0V. “High” stands for 3.3V. “NC” stands for “No Connected.”
Table 3.1: Pin Description
Pin No. Symbol Description
1 VDD Power Supply,3.3V(typical)
2 VDD Power Supply,3.3V(typical)
3 GND Ground
4 DPS Reverse Scan Function [H: Enable; L/NC: Disable]
5RxIN0-
LVDS differential signal channel 0
LVDS Differential Data Input (R0, R1, R2, R3, R4, R5, G0)
6RxIN0+
7 GND Ground
8RxIN1-
LVDS differential signal channel 1
LVDS Differential Data Input (G1, G2, G3, G4, G5, B0, B1)
9RxIN1+
10 GND Ground
11 RxIN2-
LVDS differential signal channel 2
LVDS Differential Data Input (B2, B3, B4, B5, DE)
12 RxIN2+
13 GND Ground
14 RxCLKIN-
LVDS differential signal clock
15 RxCLKIN+
16 GND Ground
17 RxIN3- LVDS receiver signal channel 3, NC for 6 bit LVDS Input
LVDS Differential Data Input (R6, R7, G6, G7, B6, B7, RSV)
18 RxIN3+
19 RSV Reserved for AUO internal test. Please treat it as NC.
