IDK-1110R User Manual 12

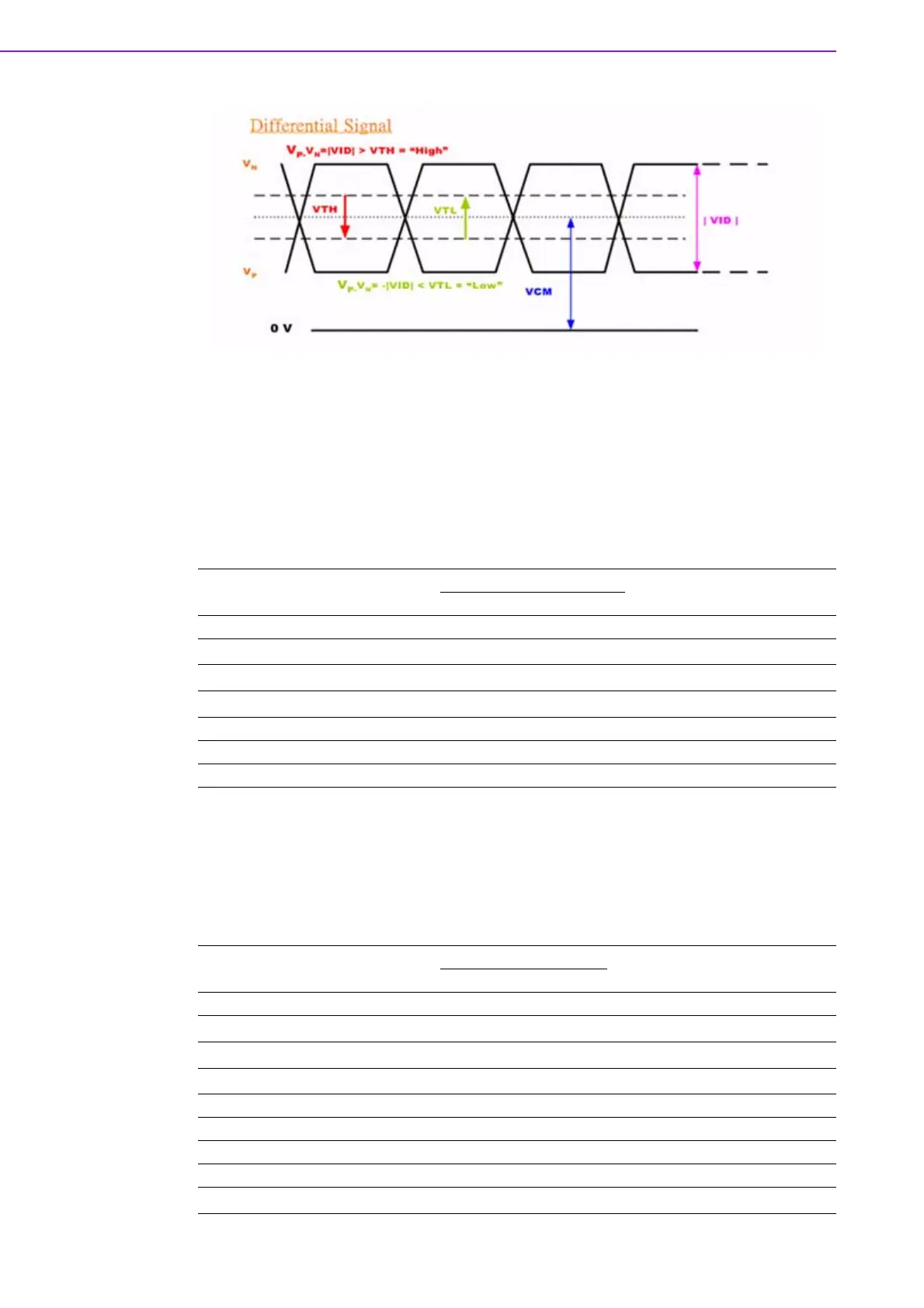

2.2 Backlight Unit
2.2.1 Parameter guideline for LED backlight (For IDK-1110R-
40SVA1E)
Following characteristics are measured under a stable condition using an inverter at
25°C (Room Temperature):
2.2.2 Parameter guideline for LED backlight (For IDK-1110R-
23SVA1E)
Following characteristics are measured under a stable condition using an inverter at
25°C (Room Temperature):
Parameter Symbol
Value
Unit Remark
Min. Typ. Max.
Input Voltage VCC 10.8 12 12.6 [Volt]
Input Current I
VCC
- 0.32 - [A] 100% PWM Duty
Power Consumption P
VCC
- 3.8 - [Watt] 100% PWM Duty
Dimming Frequency F
PWM
200 - 20K [Hz]
Swing Voltage 3 3.3 5.5 [Volt]
Dimming Duty Cycle 5 - 100 %
Operation Lifetime 50,000 - - Hrs IF = 80mA, Ta = 25°C
Parameter Symbol
Value
Unit Remark
Min. Typ. Max.
Input Voltage VCC 10.8 12 12.6 [Volt]
Input Current I
VCC
- 0.12 - [A] 100% PWM Duty
Power Consumption P
VCC
- 1.44 - [Watt] 100% PWM Duty
Dimming Frequency F
PWM
200 - 10K [Hz]
Swing Voltage 3 3.3 5.5 [Volt]
Dimming Duty Cycle 5 - 100 %
Dimming Voltage 0.6 - 3 [Volt]
5- 100%
LED Forward Current I
F
-25- mATa = 25°C
