9 IDK-1110P-50XGB1 User Manual
Chapter 2 LCD Display
2.4 Backlight Unit
The following characteristics are measured under stable condition at 25 °C (77 ° F).

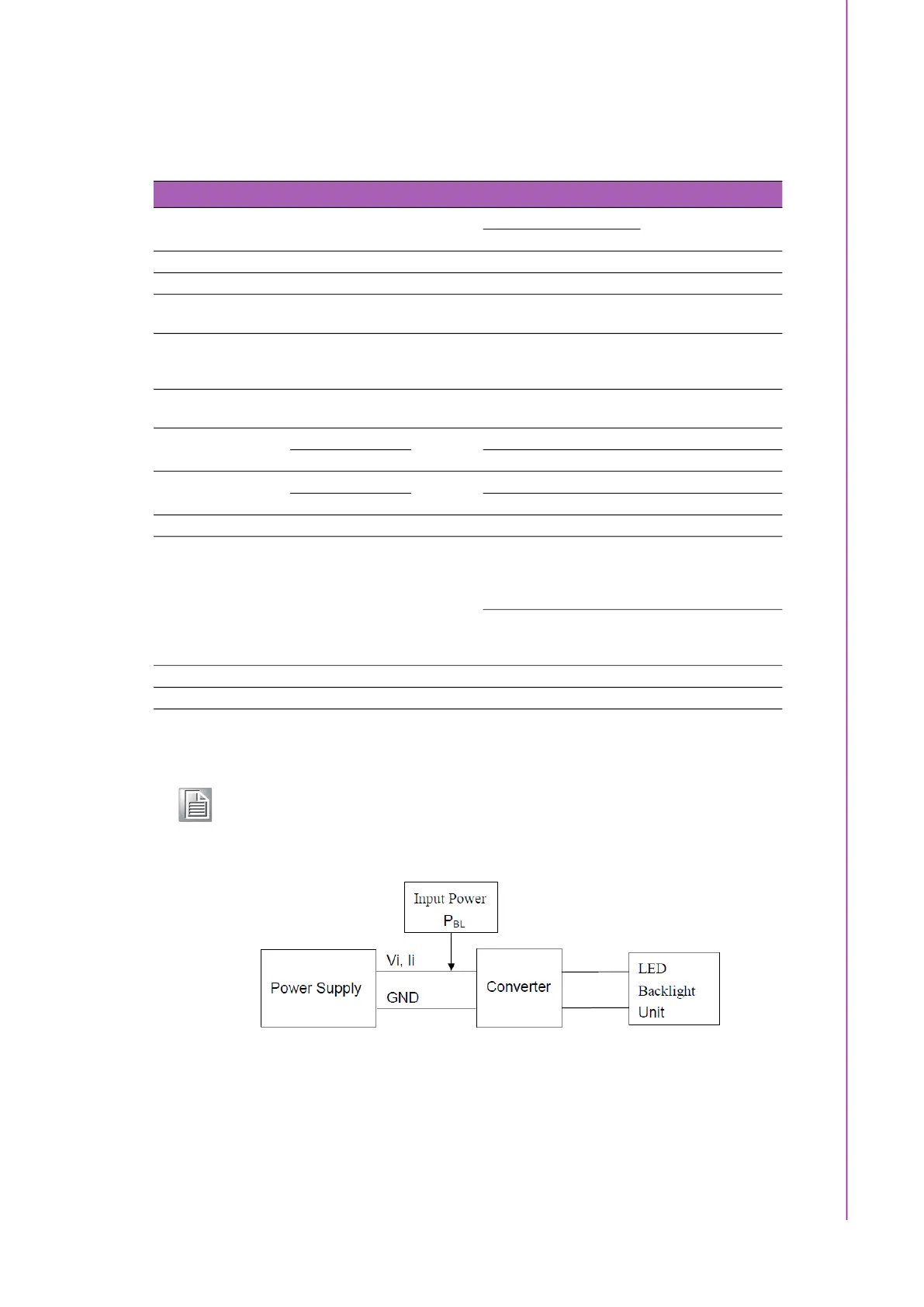

Table 2.2: Backlight Driving Conditions
Parameter Symbol
Values
Unit Note
Min. Typ. Max.
Converter Power Supply Voltage Vi 10.8 12 13.2 V
Converter Power Supply Ripple Voltage ViRP - - 350 mV
Converter Power Supply Current Ii - 0.48 0.55 A
@ Vi = 12V
(Duty 100%)
Converter Inrush Current IiRUSH - - 3.0 A
@ Vi rising
time =10ms
(Vi =12V)
Backlight Power Consumption PBL - 5.8 6.6 W
@ Vi = 12V
(Duty 100%)
EN Control Level
Backlight On
BLON
2.5 3.3 5 V
Backlight Off 0 - 0.3 V
PWM Control Level
PWM High Level
E_PWM
2.5 3.3 5 V
PWM Low Level 0 - 0.15 V
PWM Noise Range VNoise - - 0.1 V
PWM Control Duty Ratio
-
5 - 100 %
(2), Sugges-
tion,
@190Hz<fP
WM<1kHz
20 - 100 %
(2), @
1kHz?fPWM
<20kHz
PWM Control Frequency fPWM 190 200 20k Hz (3)
LED Life Time LL 50,000 - - Hrs (2)
Note (1) LED current is measured by utilizing a high frequency current meter
shown below:
