IDK-1110R-50XGB1 User Manual 30

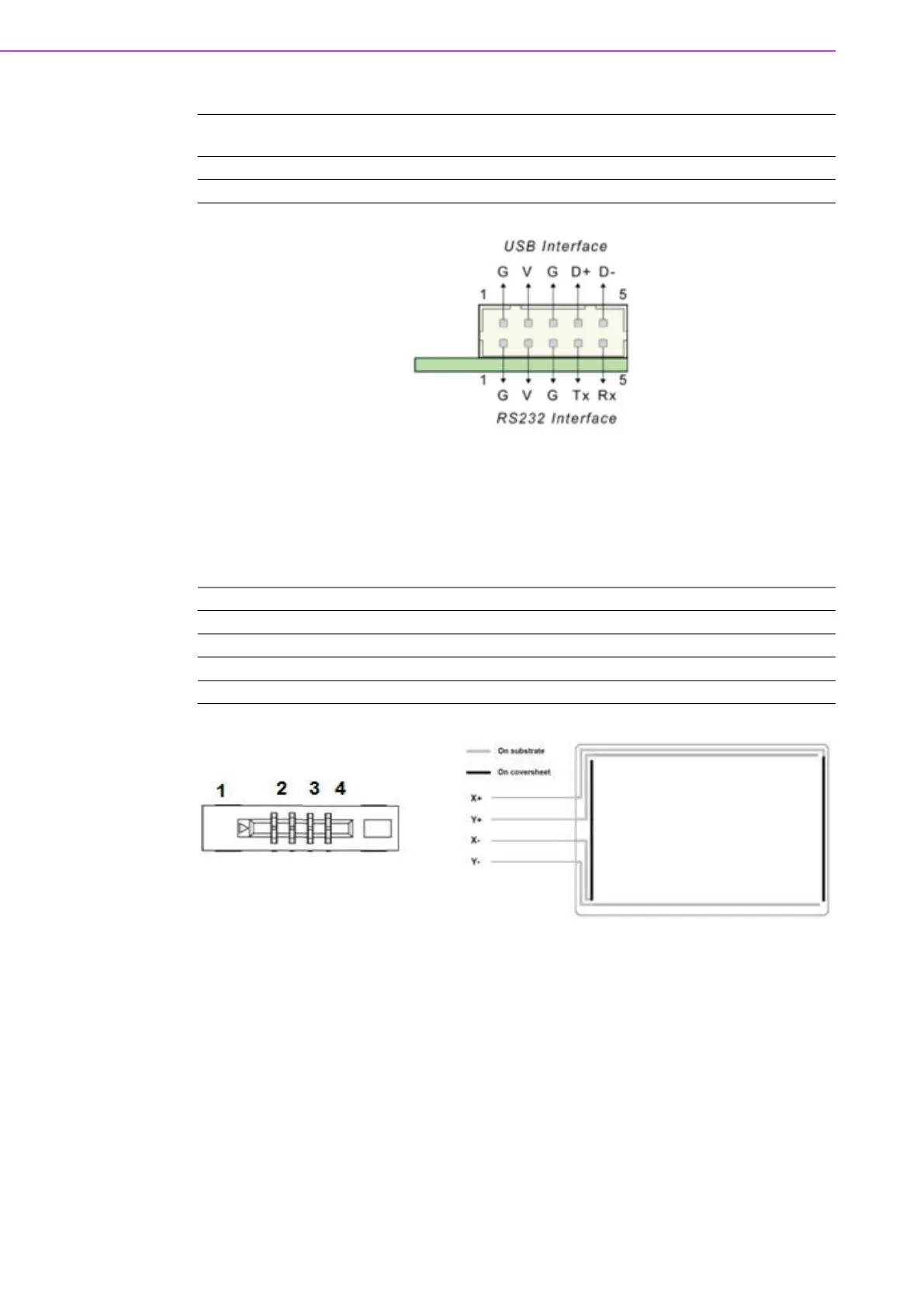

Figure 4.1 Board-Mounted Header
4.4.3 Touchscreen Connector, JP2, Pins, and Signal Descriptions
The touchscreen connector, JP2, is a FFC/FPC SMD 1.0mm 4-pin 90-degree
female-type connector. The pins are numbered as shown in the table below.
Signal
Name
DB-9 Pin# RS-232 Pin# Sourced By Signal Description
RxD 2 5 ctlr serial data from controller to host
TxD 3 4 host serial data from host to controller
TS4 Pin # Signal Name Signal Description
1 YB Bottom
2 XL Left
3 YT Top
4 XR Right
4-Wire touchscreen ZIF connector 4-Wire screen viewed from the cover sheet side
