21 IDK-1110R-50XGB1 User Manual
Chapter 2 LCD Display
2.8 Power On/Off Sequence

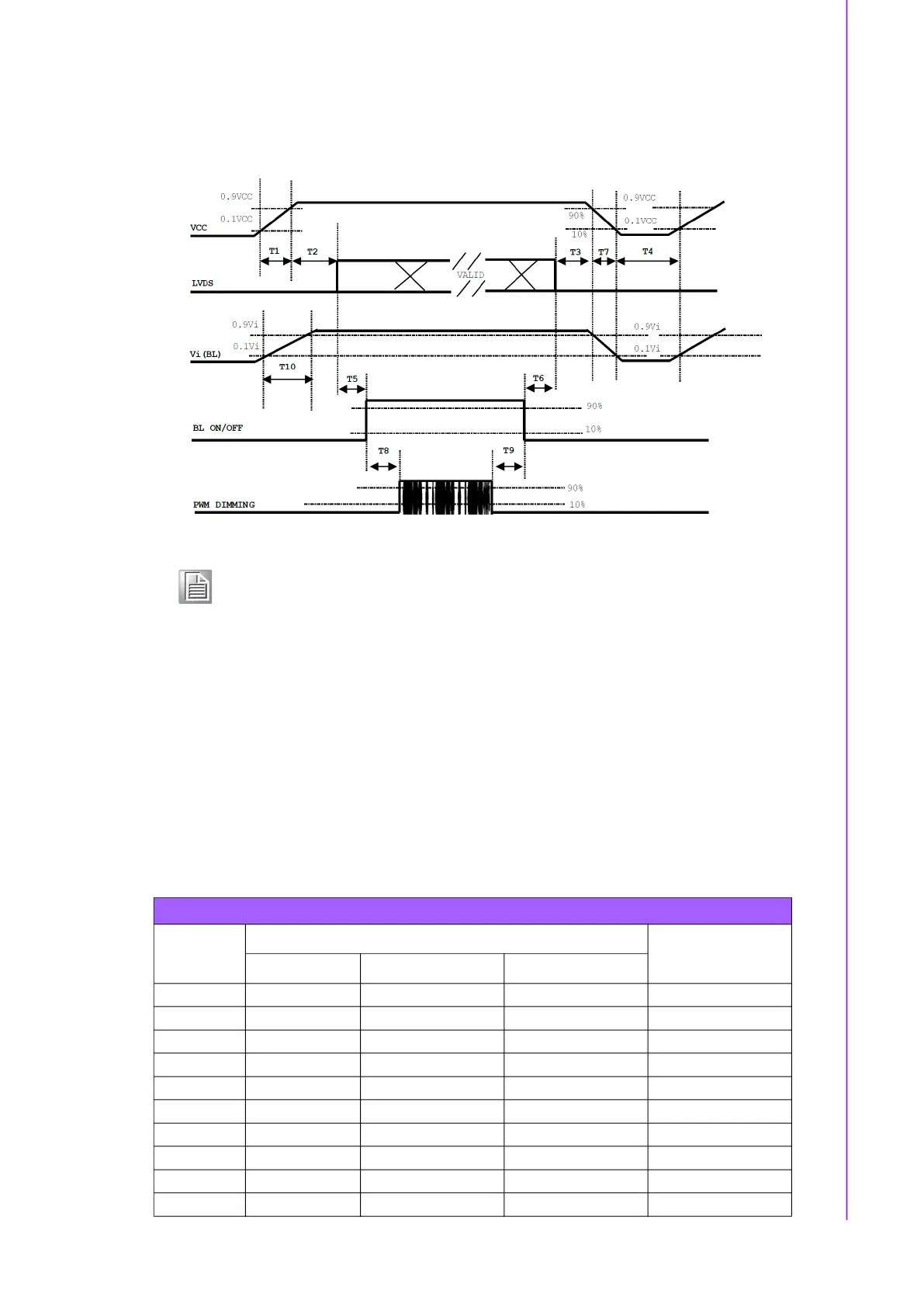

The power sequence specifications are shown in the following table and diagram.
Note: (1)The supply voltage of the external system for the module input should
be the same as the definition of Vcc.
(2)When the backlight turns on before the LCD operation of the LCD
turns off, the display may momentarily show an abnormal screen.
(3)In case of VCC = off level, please keep the level of input signals on
low or keep a high impedance.
(4)T4 should be measured after the module has been fully discharged
between power off and on.
(5)The interface signal shall not be kept at high impedance when the
power is on.
(6)INX won't take any responsibility for the products which are damaged
by the customer not following the Power Sequence.
(7)There might be slight electronic noise when the LCD is turned off
(even if the backlight unit is also off). To avoid this symptom, we suggest
"Vcc falling timing" to follow "T7 spec".
Table 2.8: Timing Specifications:
Parameter
Value
Units
Min Typ Max
T1 0.5 - 10 ms
T2 0 - 50 ms
T3 0 - 50 ms
T4 500 - - ms
T5 450 - - ms
T6 200 - - ms
T7 10 - 100 ms
T8 10 - - ms
T9 10 - - ms
T10 20 - 50 ms
