IDK-1110R-50XGB1 User Manual 14

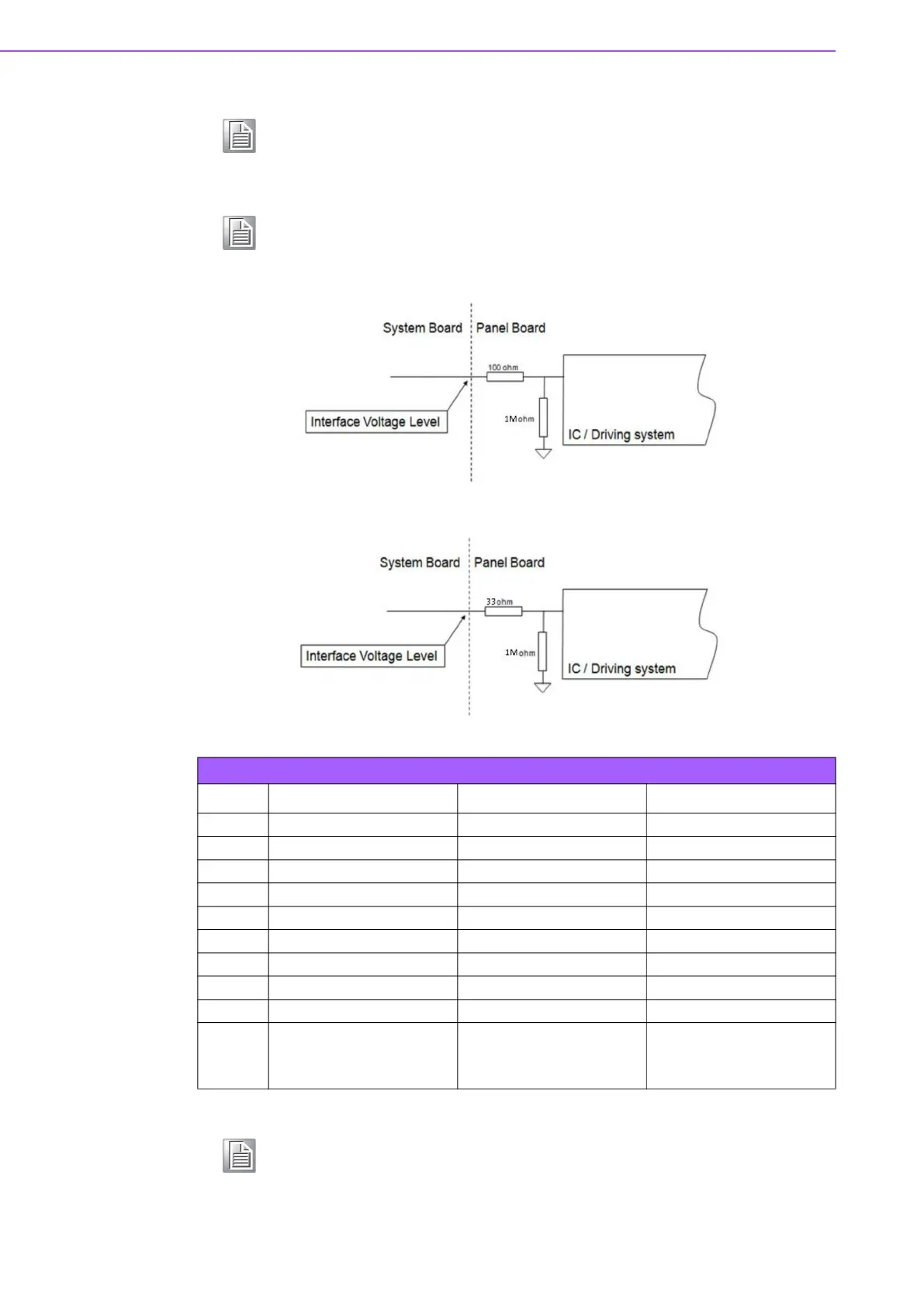

RPFI pin:
SEL 6/8 pin:
Note (3) "Low" stands for 0V. "High" stands for 3.3V. "NC" stands for "No Con-
nection".
Note (4) Pin8, Pin9, Pin10, Pin13, Pin30 input signals should be set to no con-
nection or ground for this module to operate normally.
Table 2.4: Backlight Pin Assignment
Pin Symbol Description Remark
1 Vi Converter Input Voltage 12V
2 Vi Converter Input Voltage 12V
3 Vi Converter Input Voltage 12V
4 Vi Converter Input Voltage 12V
5 VGND Converter Ground Ground
6 VGND Converter Ground Ground
7 VGND Converter Ground Ground
8 VGND Converter Ground Ground
9 EN Enable Pin 3.3 V, Note (3)
10 ADJ Backlight Adjustment
PWM Dimming
(190-210Hz, Hi: 3.3V
DC
,
Lo: 0V
DC
), Note (3)
Note (1) Connector Part No.: ACES,91208-01001-H01 or equivalent
