9 IDK-1108R-50SVB1 User Manual
Chapter 2 LCD Display
L = Active area length
W = Active area width
B
max
: The measured maximum luminance of all measurement positions
B
min
: The measured minimum luminance of all measurement positions
2.3 Electrical Characteristics
2.3.1 Power Specifications

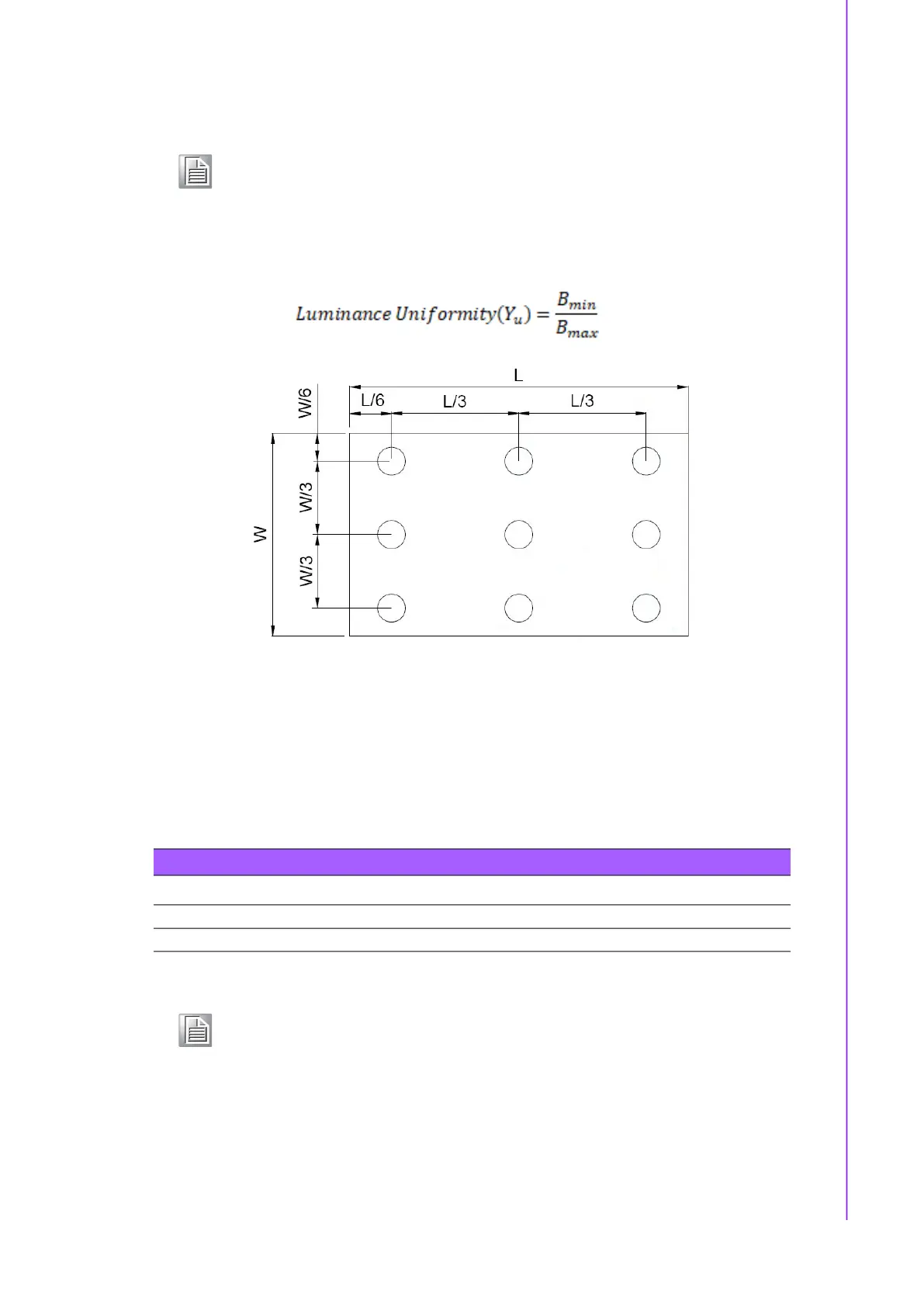

Note6! Definition of Brightness Uniformity
The active area is divided into 9 measurement areas (refer to the below
figure). Every measurement point is placed at the center of each mea-
surement area.
Table 2.3: Power Specifications
Item Symbol Min. Typ. Max. Unit Note
Logic / LCD Drive Voltage VCC 3.0 3.3 3.6 V
VCC Current ICC 180. mA (1)
Note! fV =60Hz, Ta=25°C, Display pattern: All Black
