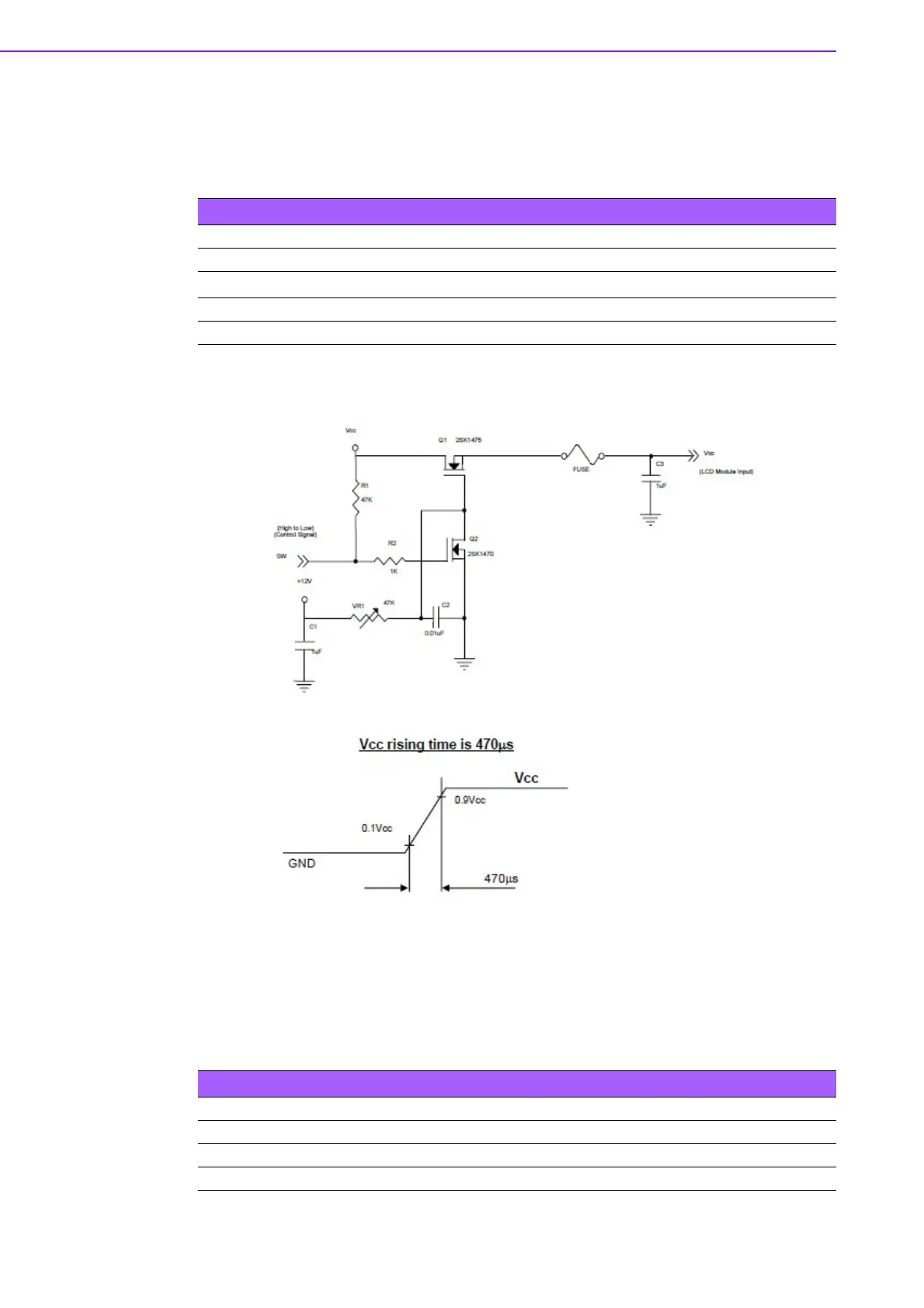

IDK-1107WP User Manual 8
2.1 TFT LCD Module
2.1.1 Power Specification
Note 1: The assembly should be always operated within the above ranges.
Note 2: Measurement condition:
Note 3: The specified power supply current is under the conditions at Vcc=3.3V,
Ta=25± 2oC, fv=60Hz, whereas a power dissipation check pattern below is
displayed.
2.1.2 Signal Electrical Characteristics
Table 2.1: Power Specification
Symbol Parameter Min. Typ. Max. Unit Remark
Vcc Power Supply Voltage 3.0 3.3 3.6 V
I
RUSH
Rush Current 1.5 A
Power Supply Current White 140 mA 3
Black 170 mA 3
Table 2.2: Signal Electrical Characteristics
Symbol Item Min. Typ. Max. Unit Remark
VTH Differential Input High Threshold - - 100 [mV] VCM=1.2V
VTL Differential Input Low Threshold -100 - - [mV] VCM=1.2V
VCM Common Mode Voltage 1.2 [V]
