IDK-1106R-80VGA1 User Manual 6

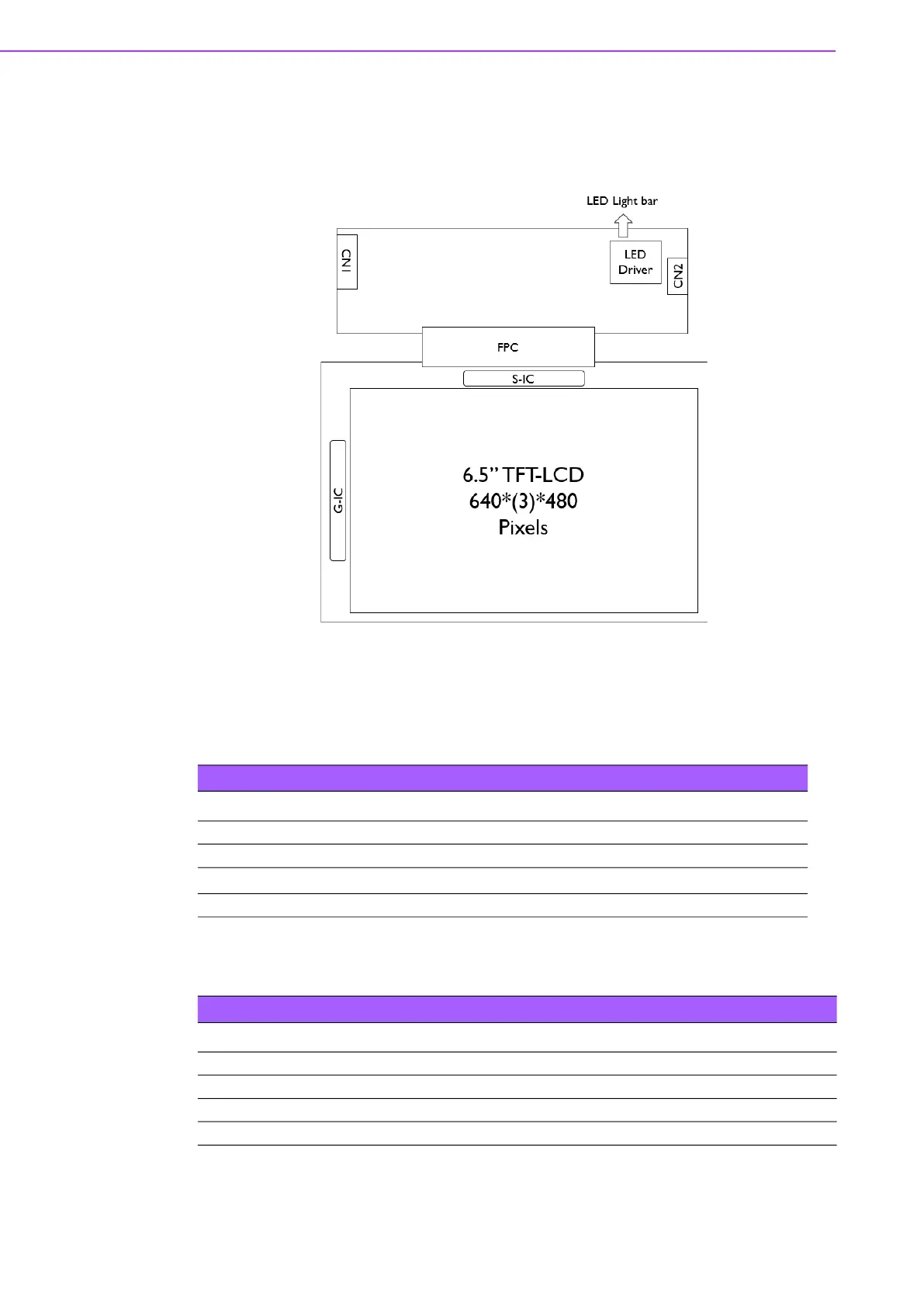

2.1 Functional Block Diagram
The following diagram shows the functional block for the 6.5" Color TFT-LCD Mod-
ule:
2.2 Absolute Maximum Ratings
2.2.1 Absolute Ratings
2.2.2 Absolute Ratings of the Environment
Note 1: Maximum wet-bulb temperature should be 39°C with no condensation.
Note 2: Only operation is guaranteed. Optical and display performance should be
evaluated at 25°C
only.
Table 2.1: Absolute Ratings
Item Symbol Min Max Unit Remark
Logic/LCD Drive Voltage VDD -0.3 +3.6 Volt Ta = 25°C
LCD Input Signal Voltage VIN -0.3 +3.6 Volt Ta = 25°C
LED BLU Drive Voltage
V
LED
0 16 Volt Ta = 25°C
LED Dimming Input Voltage VPWM 0 6 Volt Ta = 25°C
Table 2.2: Absolute Ratings of the Environment
Item Symbol Min Max Unit Remark
Operating Temperature TOP -30 +80* °C Note 1, 2
Operation Humidity HOP 5 95 %RH Note 1, 2
Storage Temperature TST -30 +80* °C Note 1
Storage Humidity HST 5 95 %RH Note 1
