IDK-1105R-50VGB1 User Manual 22
Note(6) Luminance is measured at point 5 of the display.

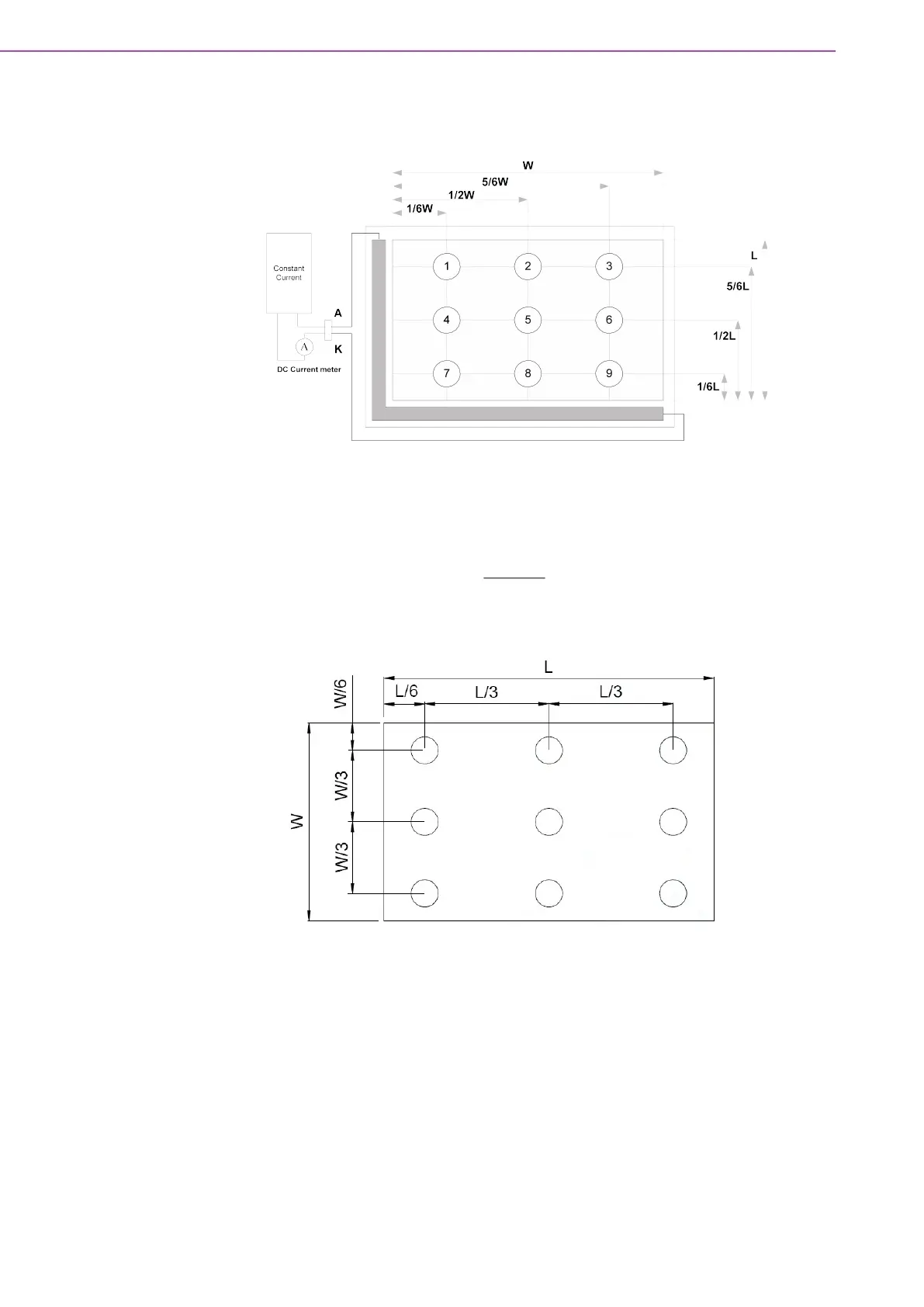

Note(7) Definition of Luminance Uniformity
The active area is divided into 9 measuring areas (Refer to the figure below).
Every measuring point is placed at the center of each measuring area.
L ----- Active area length W ----- Active area width
Bmax: The measured maximum luminance of all measurement positions.
Bmin: The measured minimum luminance of all measurement positions.
Luminance Uniformity (Yu) =
Bmin
Bmax
