7 IDK-1105R-50VGB1 User Manual
Chapter 2 LCD Display
2.2 Interface Pin Assignment
LVDS J2: CSTAR CP100-S20G-H16
LED J3: ENTERY 3808K-F04N-03L (Mating connector: ENTERY H2808K-P04N-
02B)
Pin No. Symbol Function
1 VDD POWER SUPPLY:3.3V
2 VDD POWER SUPPLY:3.3V
3 Gnd Power Ground
4 Gnd Power Ground
5 IN0- Transmission Data of Pixels
6 IN0+ Transmission Data of Pixels
7 Gnd Power Ground
8 IN1- Transmission Data of Pixels 1
9 IN1+ Transmission Data of Pixels 1
10 Gnd Power Ground
11 IN2- Transmission Data of Pixels 2
12 IN2+ Transmission Data of Pixels 2
13 Gnd Power Ground
14 CLK- Sampling Clock
15 CLK+ Sampling Clock
16 Gnd Power Ground
17 NC No Connect
18 NC No Connect
19 Gnd Power Ground
20 Gnd Power Ground

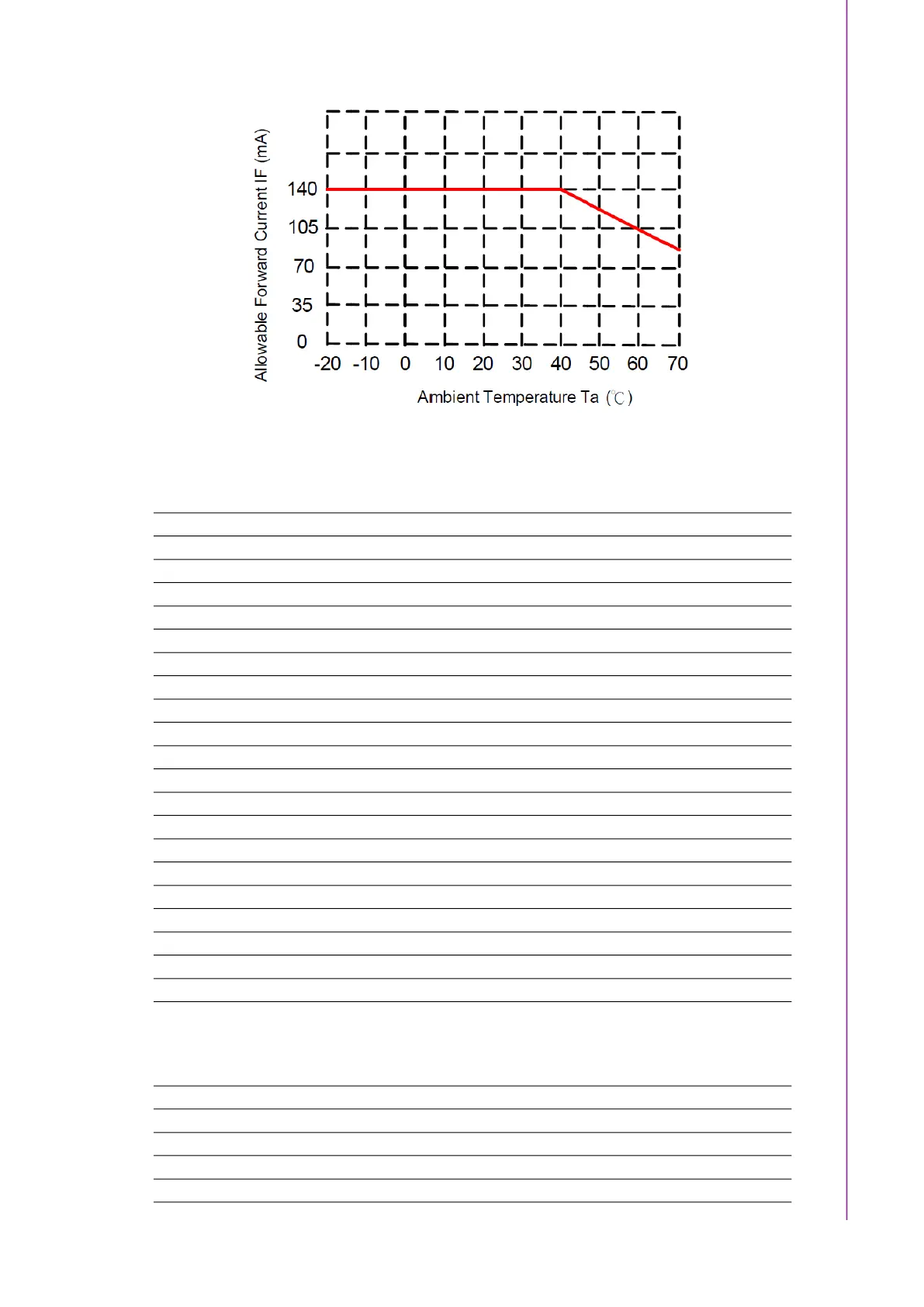

Pin no Symbol Function
1 VLED Power Supply for LED 5V
2 GND Power Ground
3 LED_ON LED backlight ON/OFF, “H”: LED ON, “L”: LED OFF
4 PWM PWM input for LED Brightness*
