iDAQ-817_821 User Manual 16

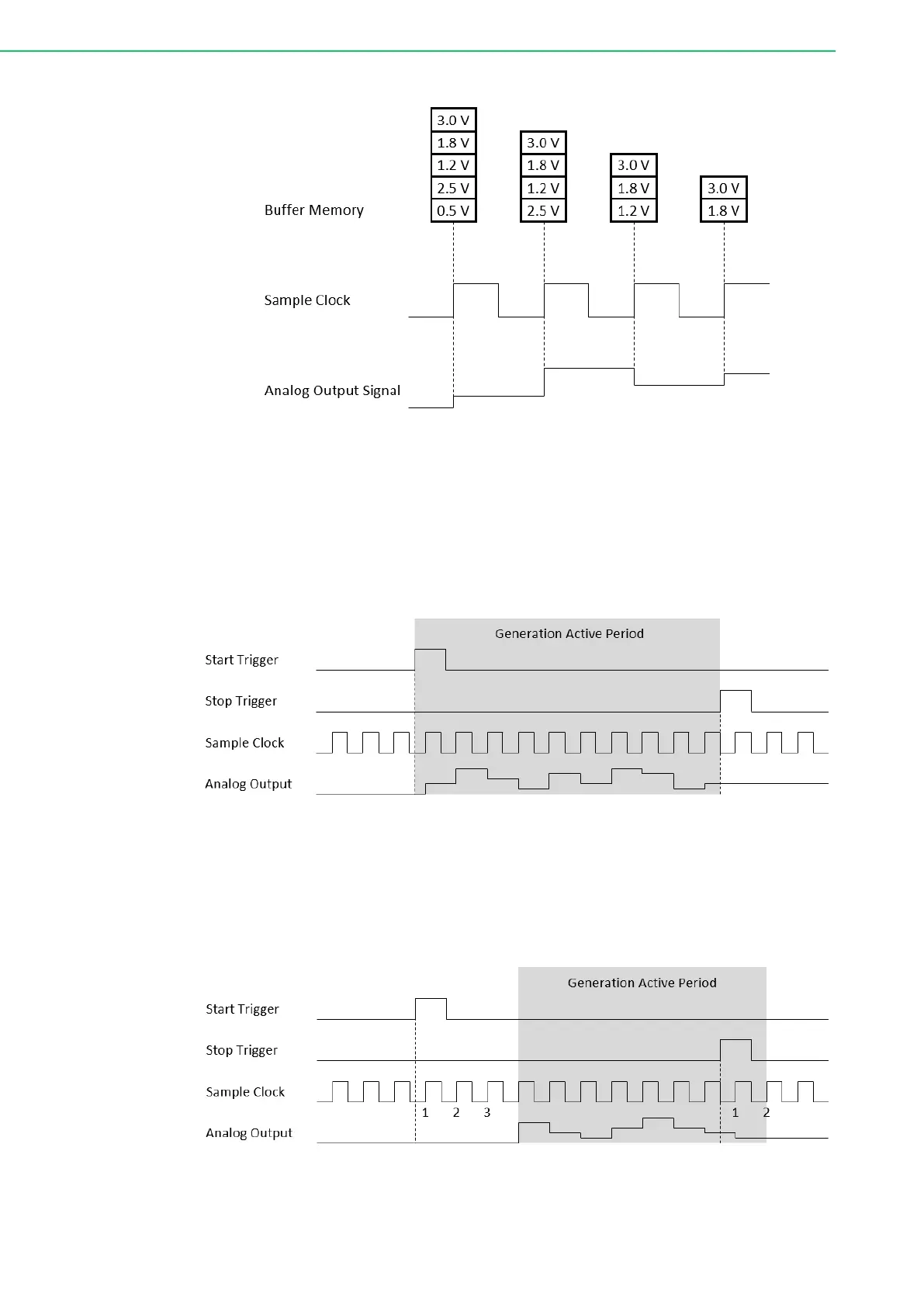

Figure 3.7 Buffered analog output waveform generation
The start and stop of the generation are controlled by the start trigger and stop trig-
ger, respectively. When configuration is completed, the acquisition engine of the
iDAQ chassis is at standby state. After receiving a start trigger, generation becomes
active and each rising edge of the sample clock converts one analog output sample.
The generation active period lasts until a stop trigger is received, which ends the gen-
eration. This is shown in Figure 3.8.
Figure 3.8 Start and stop of the analog output waveform generation
The start and stop of generation can also be delayed in number of samples after
receiving the corresponding trigger signal. As shown in Figure 3.9, the start of gener-
ation is delayed by 3 samples after receiving a start trigger, and the stop of genera-
tion is delayed by 2 samples after receiving a stop trigger.
Figure 3.9 Start and stop of the analog output waveform generation with delay.
