ICR-2412
1.3 Hardware Overview
The router case preview is shown in Figure 5. A short description of hardware parts of the
router is listed in Table 1, including the links to the chapters with a detailed description.

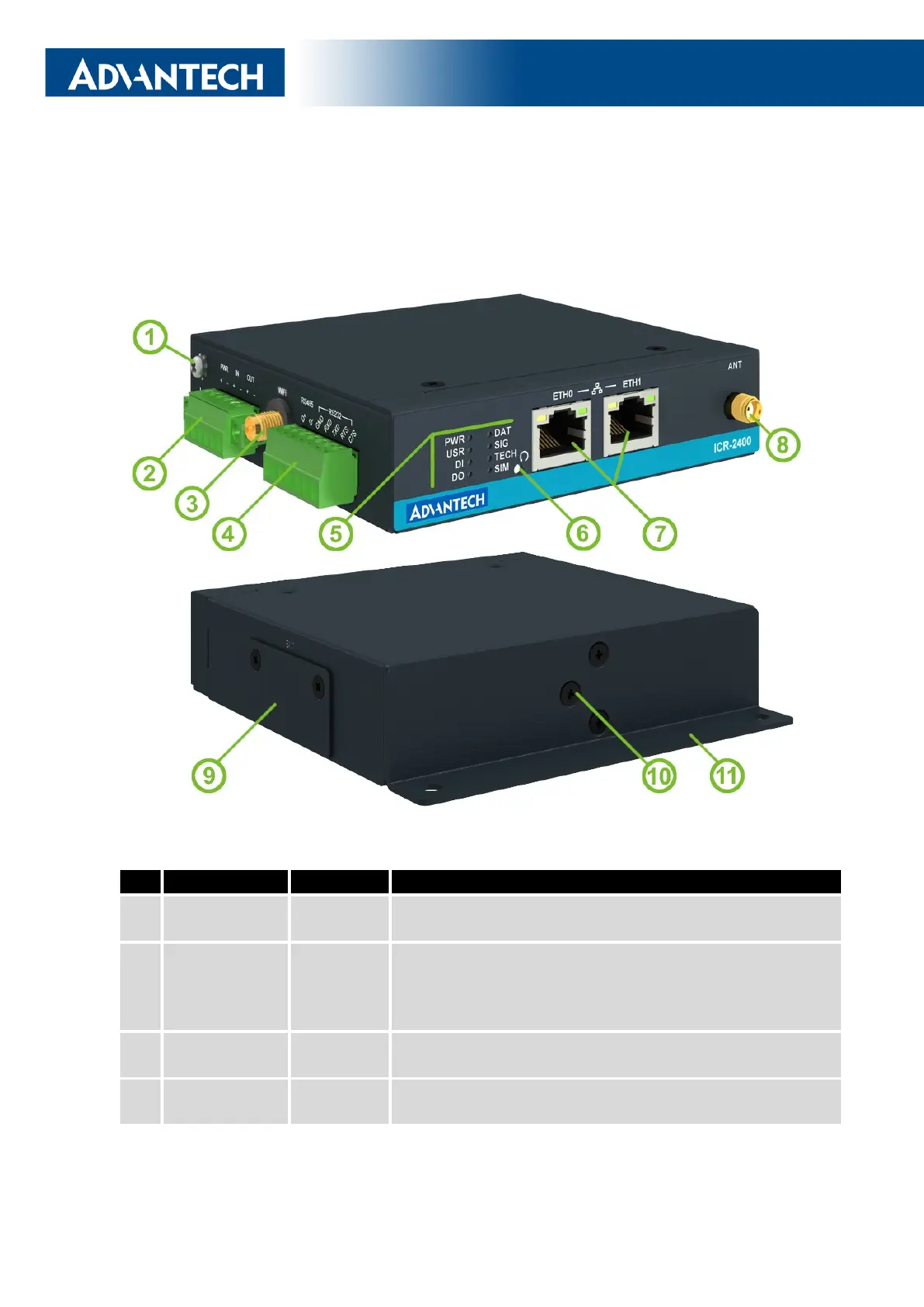

Figure 5: Hardware Overview of the Router
# Item/Caption Type Description
1 Grounding
screw
M3 Pay attention to proper grounding; see Chapter 2.4.
2 PWR
IN/OUT
6-pin
terminal
Power supply, binary input, and binary output interfaces.
See Chapter 2.4, Chapter 2.5, Chapter 2.6 for more infor-
mation, Chapter 4.6 for I/O parameters, and Chapter 4.7
for serial interface parameters.
3 WiFi RP-SMA
female
Connector for the WiFi antenna; see Chapter 2.2 and
Chapter 4.5 for WiFi parameters.
4 RS485/RS232 7-pin
terminal
RS232 & RS485 serial interfaces; see Chapter 2.6.
Continued on the next page
5
