ICR-2041
1.3 Hardware Overview
The router case preview is shown in Figure 4. A short description of hardware parts of the
router is listed in Table 1, including the links to the chapters with a detailed description.

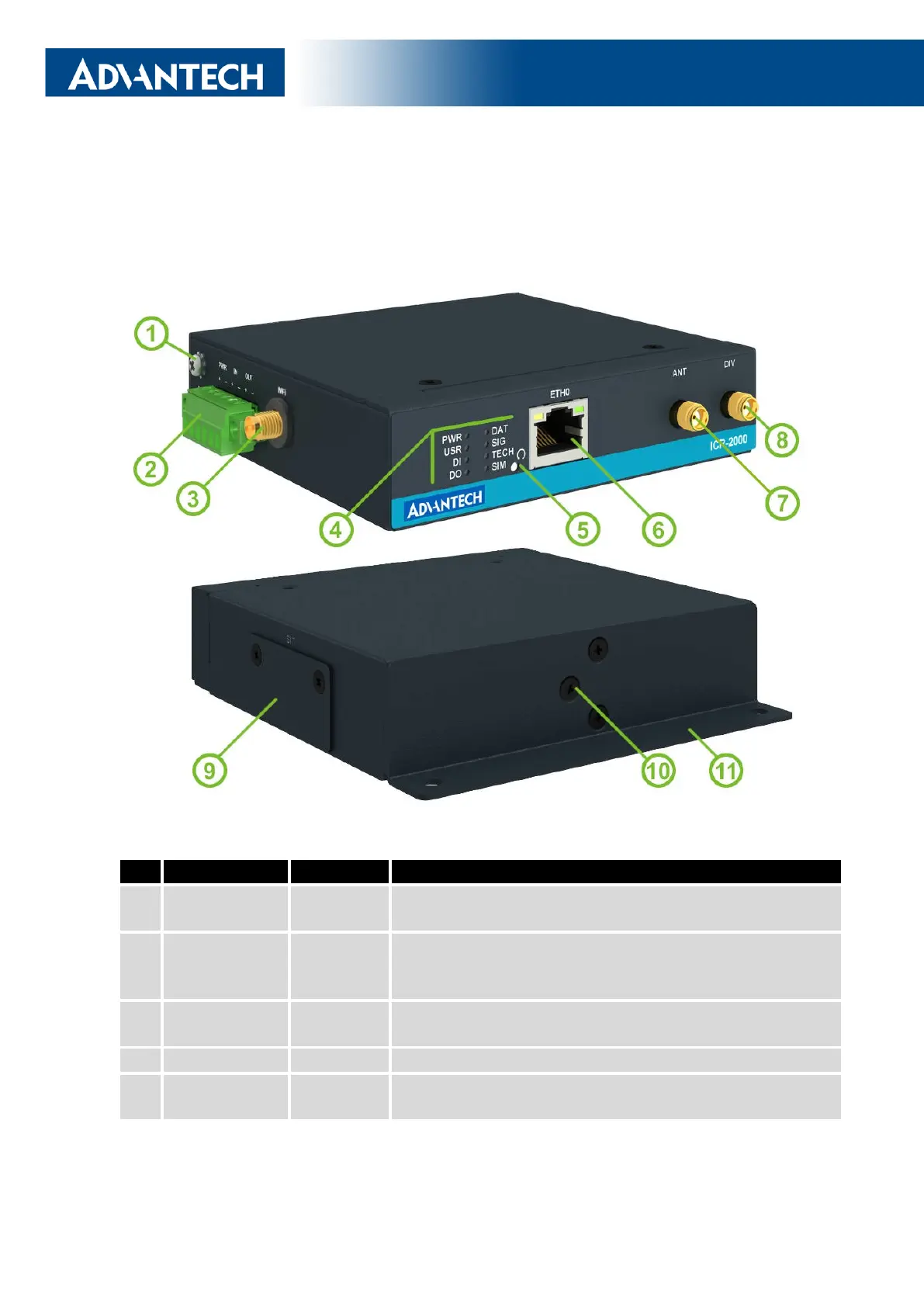

Figure 4: Hardware Overview of the Router
# Item/Caption Type Description
1 Grounding
screw
M3 Pay attention to proper grounding; see Chapter 2.4.
2 PWR
IN/OUT
6-pin
terminal
Power supply, binary input, and binary output interfaces.
See Chapter 2.4, Chapter 2.5 for more information, Chap-
ter 4.6 for I/O parameters.
3 WiFi RP-SMA
female
Connector for the WiFi antenna; see Chapter 2.2 and
Chapter 4.5 for WiFi parameters.
4 LEDs - Status LED indication; see Chapter 2.6.
5 RST - Button to reboot the router or to restore the default
configuration; see Chapter 2.7.
Continued on the next page
5
