3.2.2 System Memory
The FWA-6172 supports a total of 16 DDR5 DIMMs. Each processor socket accommodates one DIMM
socket per DDR5 channel, and a total of 8 DDR5 channels are supported by each processor socket.
The system supports up to 64GB of DDR5 RDIMM per socket, allowing for a total capacity of up to
1TB (4800/5600 MHz).
Optimal memory performance can be achieved by populating these DIMM modules with pairs of
memory modules of the same type and size, resulting in interleaved memory configuration.
3.2.3 Memory Installation Procedures
Each memory channel supports 1 DIMM socket, totaling 16 DIMM sockets for the FWA-6172. Please
refer to the following table for guidance on installing DRAM in the system DIMM sockets. For specific
DIMM slot locations, refer to Appendix 5.1 for detailed mapping. It is crucial to follow the
recommended DIMM populations, as failure to do so may result in the CPU being unable to utilize
(initiate) the installed memory modules.

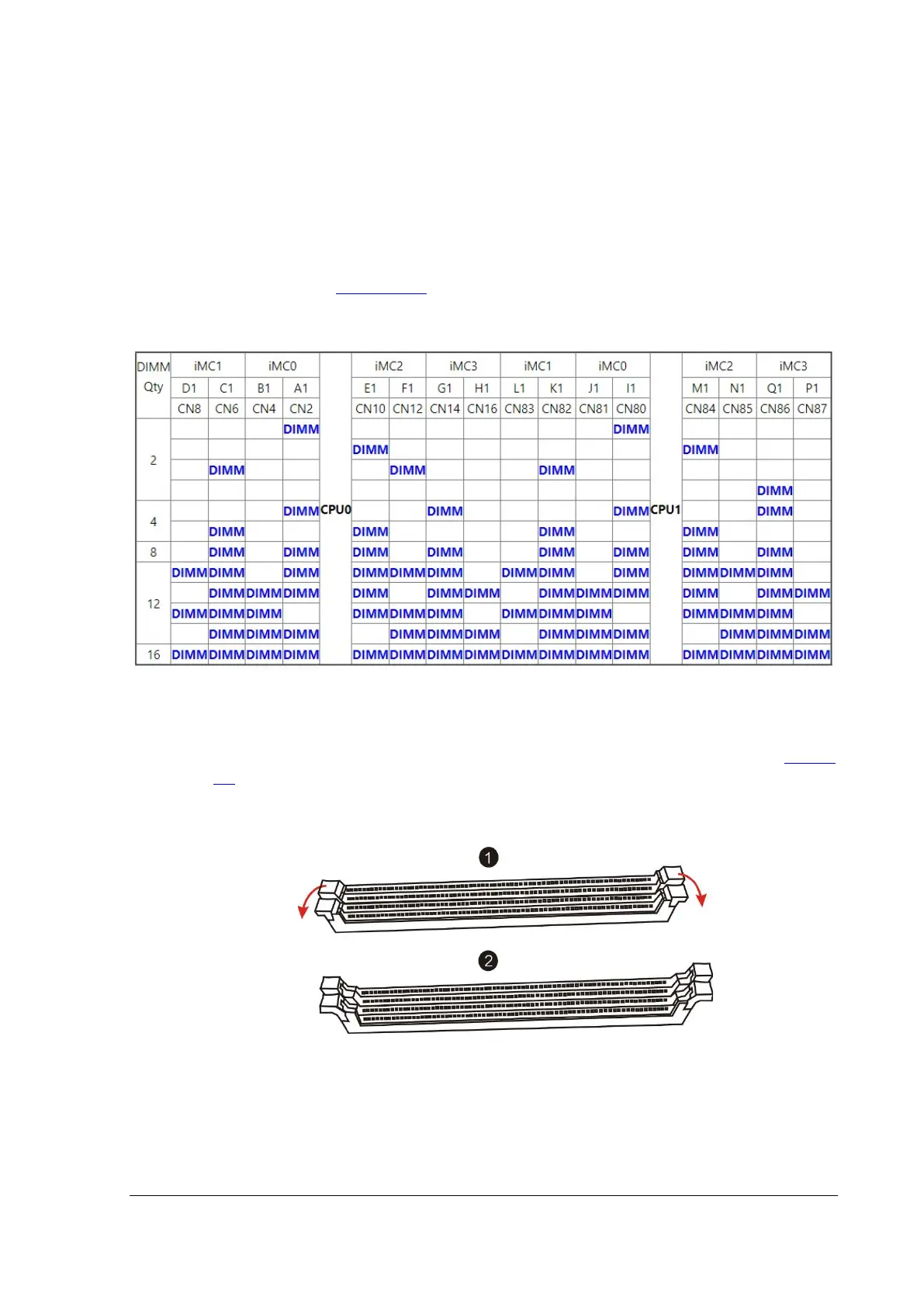

Figure 3.2-5 DIMM populations
1. Double-check that the installation of DIMMs aligns with the requirements outlined in Section
4.4 and ensure adherence to the DIMM population rules specified in that section.
2. Open the latches on the left and right sides of the DIMMs by turning them outward, following
the arrows' indications below.
Figure 3.2-6 Opening DIMM Latches
