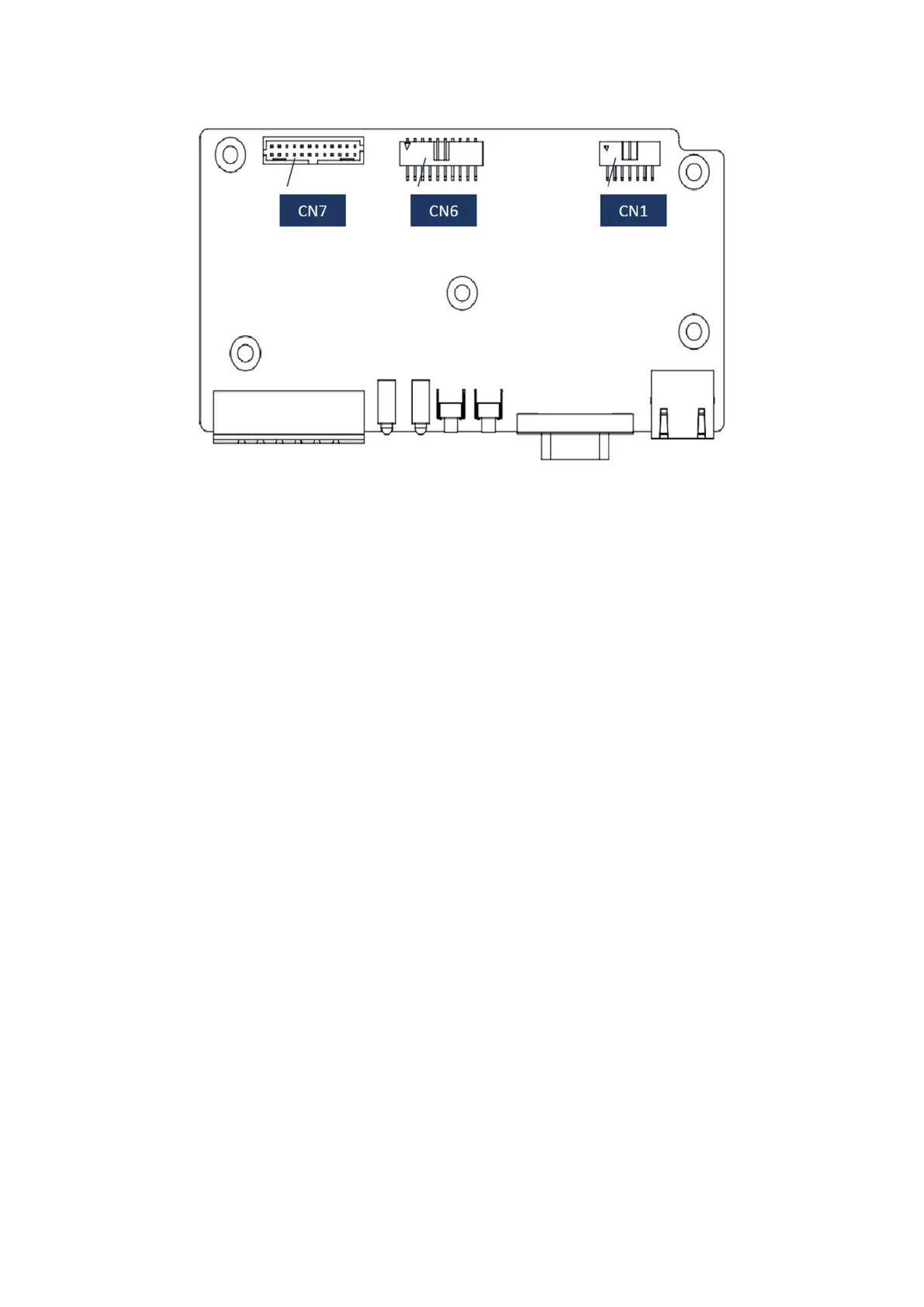

Figure 4.1-3 Main board connectors (BUTTON)
4.2 BIOS Setup Menu
FWA-1214 BIOS is based on AMI’s APTIO BIOS and compliant to the UEFI, SMBIOS and ACPI specifications.
The BIOS performs probing, initialization and configuration of the FWA-1214 and initializes the OS boot
process at the end of POST (Power-On-Self-Test).
Regular BIOS output as well as the setup menu are displayed via console port and please note that the FWA-
1214 does not have any on-board POST Code LEDs. A special POST code adapter is required to retrieve BIOS
error codes.
All BIOS configuration parameters bare stored in NVRAM, a dedicated section of the BIOS flash chip.
Parameters are no longer stored in legacy CMOS RAM by the platform BIOS. I.e. BIOS configuration
parameters will not be lost due to an empty battery.
4.2.1 BIOS Defaults
The BIOS comes with a set of configuration parameters when shipped by Advantech referred to as
“Optimized Defaults” or “factory defaults”. The user can change BIOS settings via the setup menu either
temporarily or permanently by saving the changes as “User defaults”.
The BIOS loads Optimized Defaults by the option “Restore Defaults; and loads User defaults by the option
“Restore User Defaults”. If no User defaults have been defined, the BIOS will do nothing.
4.2.2 BIOS Setup Menu
This section describes the FWA-1214’s UEFI BIOS based on AMI’s APTIO BIOS.
Users can modify BIOS settings and control the special features of the FWA-1214 using the BIOS setup menu.
