11
TPC-B300 使用手冊
3.1 Panel Mount Installation
Before installing the TPC panel computer into the panel opening, ensure that the
adhesive waterproof gasket on the front bezel is correctly positioned. Ensuring

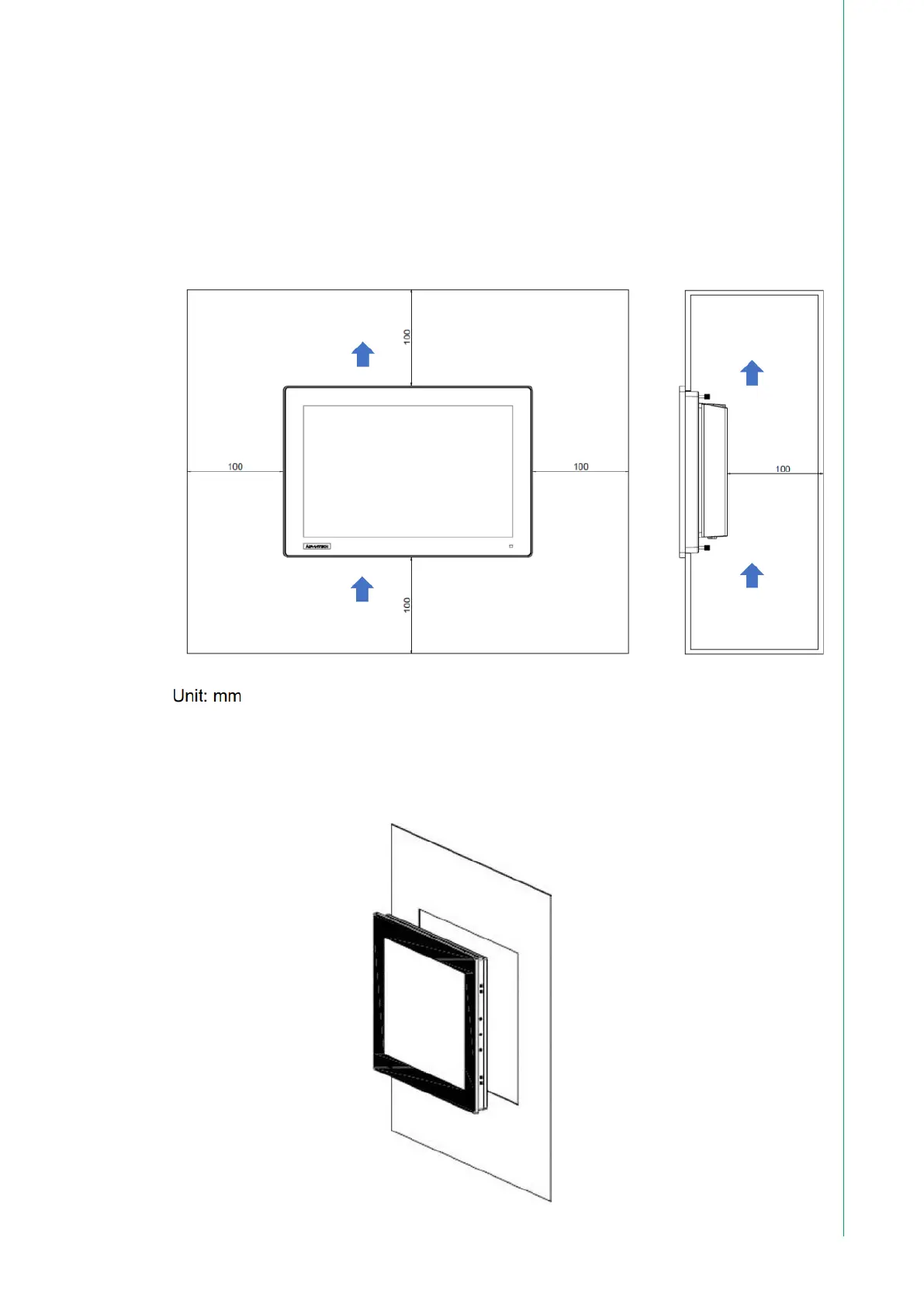

adequate air circulation with a required clearance on all sides. Refer to the
diagram for the minimum clearance (100mm), air inlet and outlet directions (blue
arrows), and a suggested mounting panel thickness of less than 6mm (0.236").
1. The front panel is equipped with a waterproof gasket strip with adhesive
on it. Before installing the TPC into the panel opening, please ensure that
the waterproof gasket is fixed correctly.
2. Place the TPC into the panel opening.
Picture 3.1 Place FPM+TPC into the panel opening
第
1
章
產品資訊
