7 ECU-4553 User Manual
Chapter 2 Hardware Function

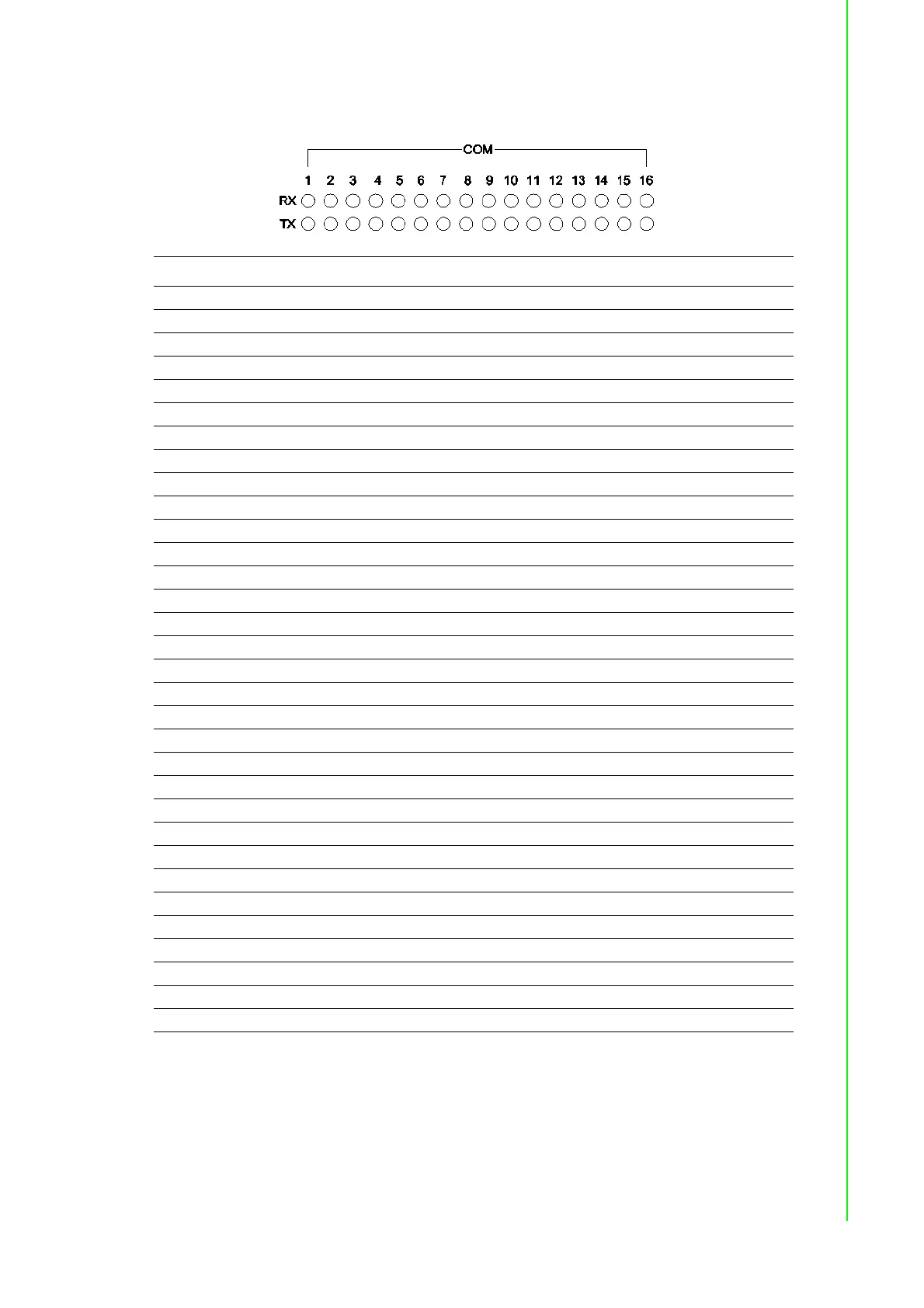

2.2.2 Serial Communication Status Indicator
LED Color Description
TX1 Orange Blinking, Serial port 1 data being transmitted
RX1 Green Blinking, Serial port 1 data being received
TX2 Orange Blinking, Serial port 2 data being transmitted
RX2 Green Blinking, Serial port 2 data being received
TX3 Orange Blinking, Serial port 3 data being transmitted
RX3 Green Blinking, Serial port 3 data being received
TX4 Orange Blinking, Serial port 4 data being transmitted
RX4 Green Blinking, Serial port 4 data being received
TX5 Orange Blinking, Serial port 5 data being transmitted
RX5 Green Blinking, Serial port 5 data being received
TX6 Orange Blinking, Serial port 6 data being transmitted
RX6 Green Blinking, Serial port 6 data being received
TX7 Orange Blinking, Serial port 7 data being transmitted
RX7 Green Blinking, Serial port 7 data being received
TX8 Orange Blinking, Serial port 8 data being transmitted
RX8 Green Blinking, Serial port 8 data being received
TX9 Orange Blinking, Serial port 9 data being transmitted
RX9 Green Blinking, Serial port 9 data being received
TX10 Orange Blinking, Serial port 10 data being transmitted
RX10 Green Blinking, Serial port 10 data being received
TX11 Orange Blinking, Serial port 11 data being transmitted
RX11 Green Blinking, Serial port 11 data being received
TX12 Orange Blinking, Serial port 12 data being transmitted
RX12 Green Blinking, Serial port 12 data being received
TX13 Orange Blinking, Serial port 13 data being transmitted
RX13 Green Blinking, Serial port 13 data being received
TX14 Orange Blinking, Serial port 14 data being transmitted
RX14 Green Blinking, Serial port 14 data being received
TX15 Orange Blinking, Serial port 15 data being transmitted
RX15 Green Blinking, Serial port 15 data being received
TX16 Orange Blinking, Serial port 16 data being transmitted
RX16 Green Blinking, Serial port 16 data being received
