25 ADAM-3600 Series User Manual
Chapter 4 Advantech iRTU Studio
4.2.2.1 OnBoard I/O Configuration
The ADAM-3600-C2G is equipped with 8-ch AI, 8-ch DI, and 4-ch DO ports which users can
map the real input signals to the IO tag. The configuration method of analog and discrete
input is different and the specific configuration method is as follows:
Onboard IO Analog Configuration
Besides the basic information of IO tag, the configuration of analog also includes advanced
configuration. The specified way is as the following figure shows.

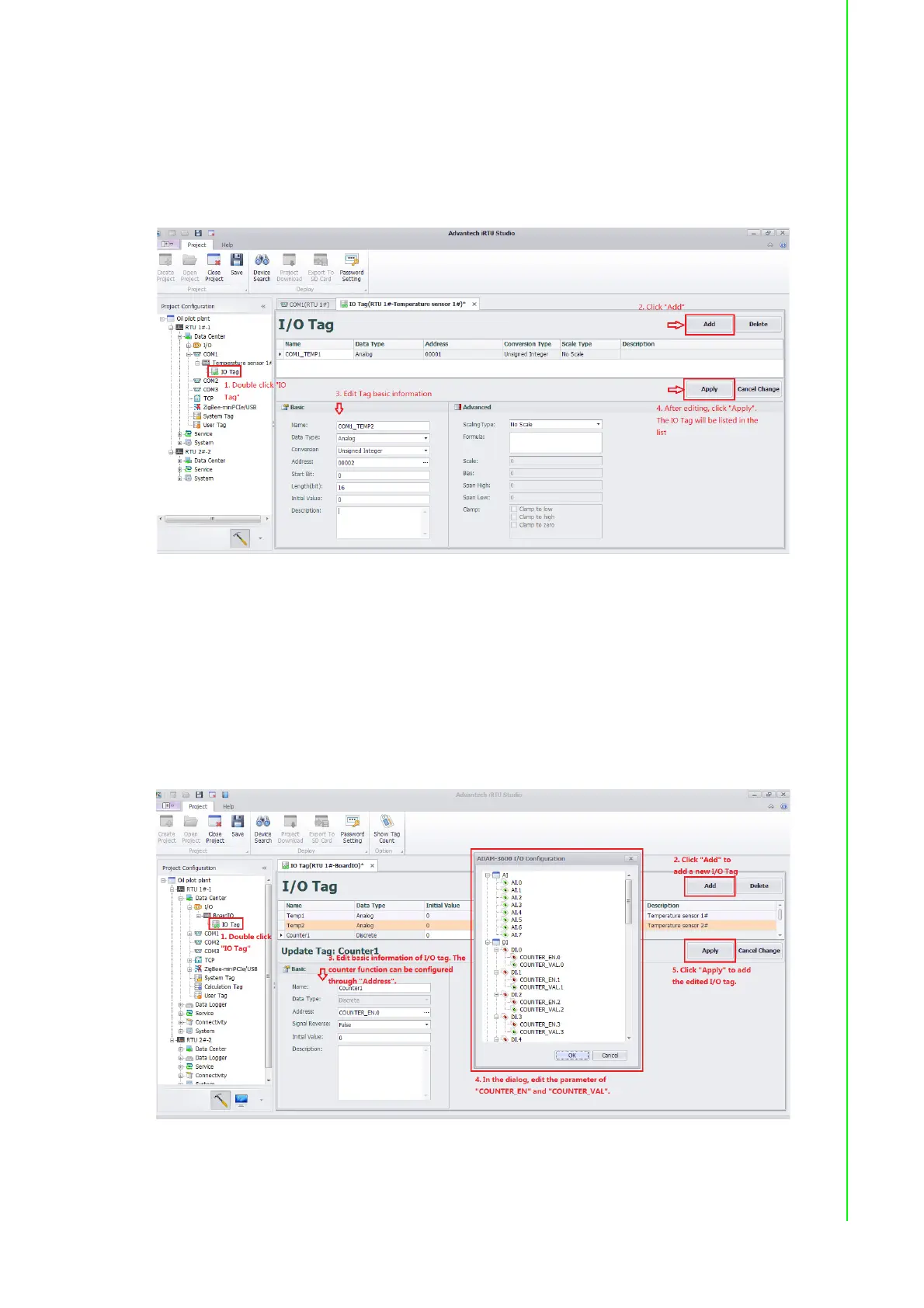

Figure 4.5 Configuring Onboard I/O Analog
Onboard IO Discrete Configuration
Configuration of the discrete onboard IO is identical with analog configuration, except that it
has no advanced configuration. Moreover, ADAM-3600-C2G’s on board DI and DO could
separately provide counter and Pulse Width Modulation (PWM) function. Users can set these
functions as described in 4-2-6-2. After selecting Counter and PWM functions, users have to
configure them through iRTU Studio. The specific configuration method is as follows.
– Counter Function Configuration
The DI interface’s counter function could compute the number of pulses within a certain sam-
ple time. Users can configure it as the following figure shows.
Figure 4.6 DI interfaces counter function configuration
With configuring counter function, some parameters are required and their meaning and set-
ting are as follows:
