13 ADAM-3600 Series User Manual
Chapter 3 Wiring and Installation

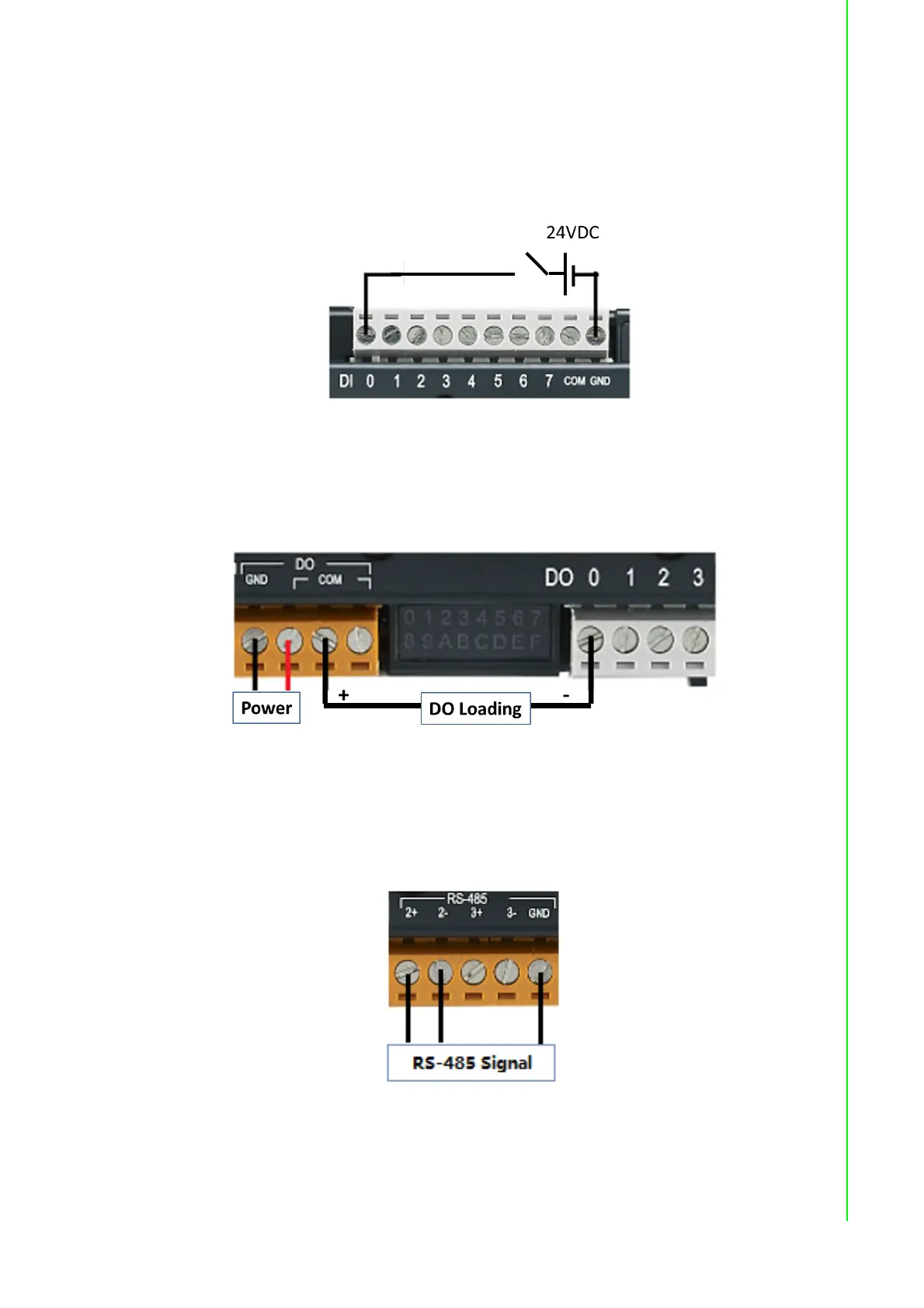

3.1.2.2 Digital Input Wiring
The ADAM-3600-C2G is equipped with 8 channels DI, follow the below diagram for
wiring. The pin “COM” is for positive voltage wiring and provides a pull high voltage to
the unwired pins. Normally user can leave it empty, and consider wiring while the field
interference is significant.
Figure 3.3 Digital Input Wiring
3.1.2.3 Digital Output Wiring
ADAM-3600-C2G is equipped with 4 channels DO, follow the below diagram for wir-
ing
Figure 3.4 Digital Output Wiring
3.1.3 Serial Port Wiring
ADAM-3600-C2G is equipped with 3 serial ports, the COM2/3 are for RS-485 and
locate on the orange terminal, please follow the below diagram for wiring:
Figure 3.5 Serial Port Wiring
