EPM-880 User Manual 8

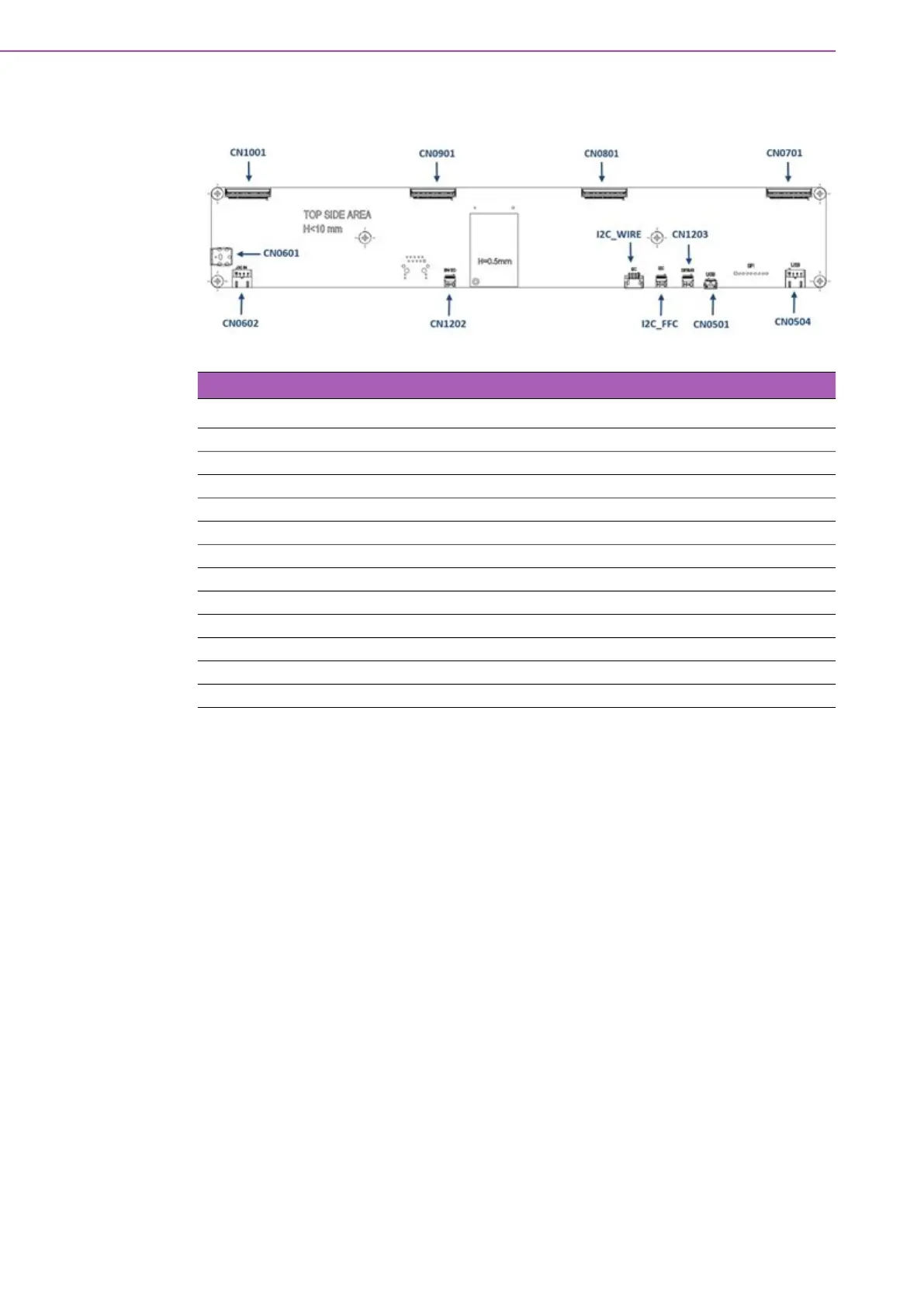

2.2 Board Level I/O
Table 2.1: I/O Connector
NAME Description
CN0501 External Micro USB Port
CN0504 4-pin wafer connector for USB
CN0601 2-pin DC jack for DC-IN power
CN0602 4-pin Wafer connector for DC-IN power
CN0701 50-pin FPC to connect to e-paper panel
CN0801 50-pin FPC to connect to e-paper panel
CN0901 50-pin FPC to connect to e-paper panel
CN1001 50-pin FPC to connect to e-paper panel
CN1202 10-pin FFC connector for external GPIO
CN1203 10-pin FFC connector for debug
I2C_FFC 10-pin FFC connector for I2C
I2C_WIRE 4-pin Wafer connector for I2C
