EPD-230/232 User Manual 6
2.1 System Architecture

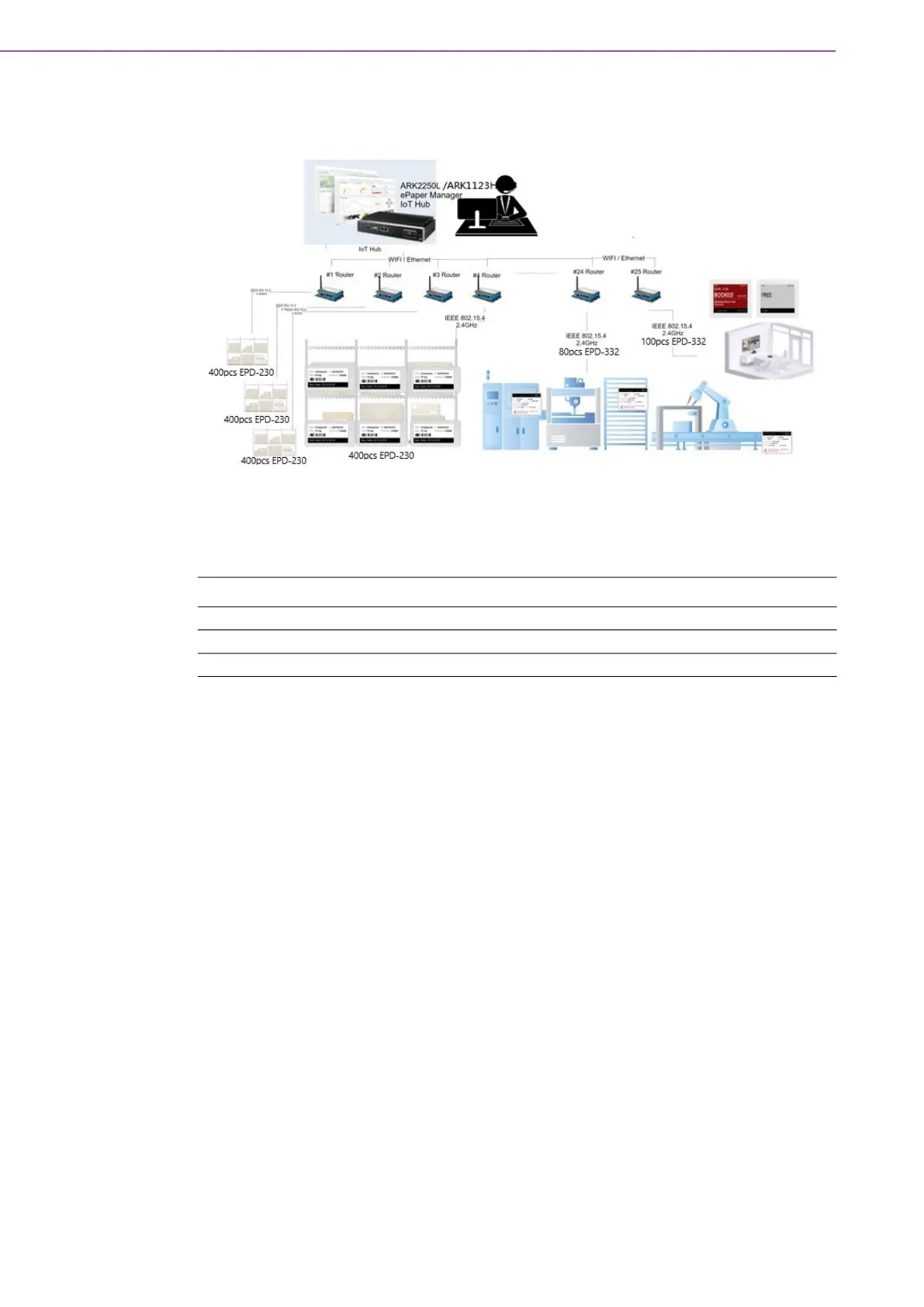

Figure 2.1 EPD-230, EPD-232 Network Topology
2.1.1 System Environment
2.2 System Specification
1. One single network can be built by WISE-3240.
2. One WISE-3240 can support up to 400 EPD devices in one channel.
3. Supports 11 channels in this system.
4. Supports up to 10000 EPD devices in one system by 25 pcs routers.
5. System supports whitelists to join the system from DeviceOn/ePaper.
6. Supports changeable encrypted keys.
2.2.1 DeviceOn/ePaper
GUI operate the system, EPD device and Router.
Through RESTFul API, the external system can operate the whole system as
shown below:
1.DeviceOn/ePaper can perform WISE Router actions and control WISE
Router.
2.DeviceOn/ePaper can perform EPD device actions and control EPD series
device.
3.DeviceOn/ePaper can import the EPD device onto the whitelist to join the net-
work.
4.DeviceOn/ePaper can deliver the image/firmware to EPD device through
WISE Router.
5.Device can periodically report status back to DeviceOn/ePaper.
No Device1 OS Version
1 ARK 2250L/DeviceOn/ePaper Ubuntu 18.04
4 WISE Router: WISE3240 OpenWRT 15.05.1
6 EPD Device CC2650 TI RTOS zstack 1.2.2a
