13 EPC-R3220 User Manual
Chapter 2 H/W Installation
2.5 Quick Start Guide
2.5.1 Debug Port Connection
1. Connect debug cable to debug port
2. Connect the other side of debug adapter to USB-to-RS232 cable then connect
to your PC
2.5.2 Debug Port Settings
EPC-R3220 can communicate with a host server by using serial cables. Common
serial communication programs such as HyperTerminal, Tera Term or PuTTY can be
used in this case. The example below describes the serial terminal setup using
HyperTerminal on a Windows host:
1. Connect EPC-R3220 with your PC by using a serial cable.
2. Open HyperTerminal on your Windows PC, and select the settings as shown in
Figure 2-7.
3. After the bootloader is programmed on SD card, insert power adapter connector
to DC jack on EPC-R3220 to power up the board. The bootloader prompt is dis-
played on the terminal screen.

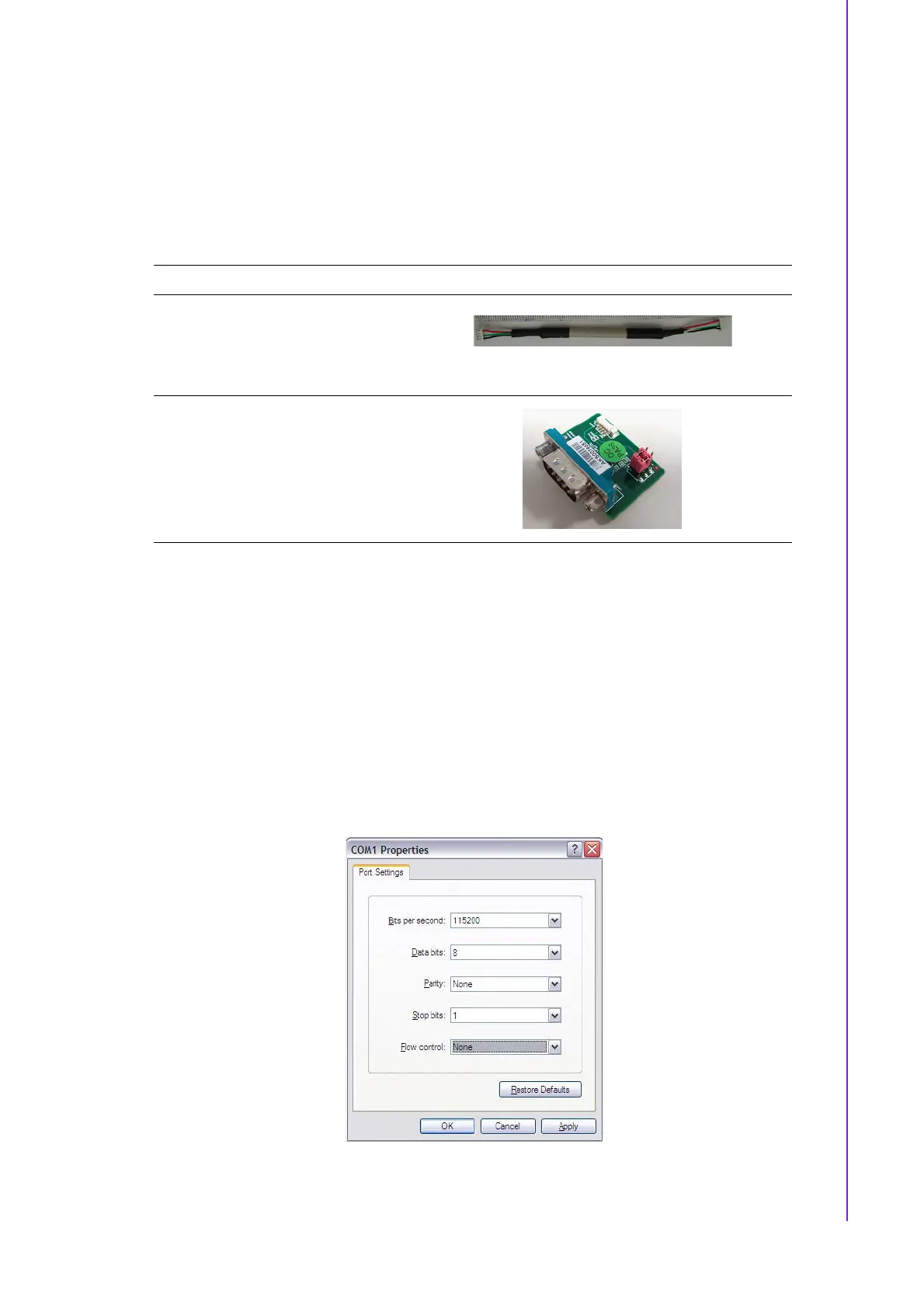

Figure 2.1 HyperTerminal Settings for Terminal Setup
Item PN Picture
Debug cable 1700020442-01
Debug adapter ROM-ED20-00A1E
