PRODUCT OVERVIEW
19
The following view applies to EKI-5725FP and EKI-5725FPI.

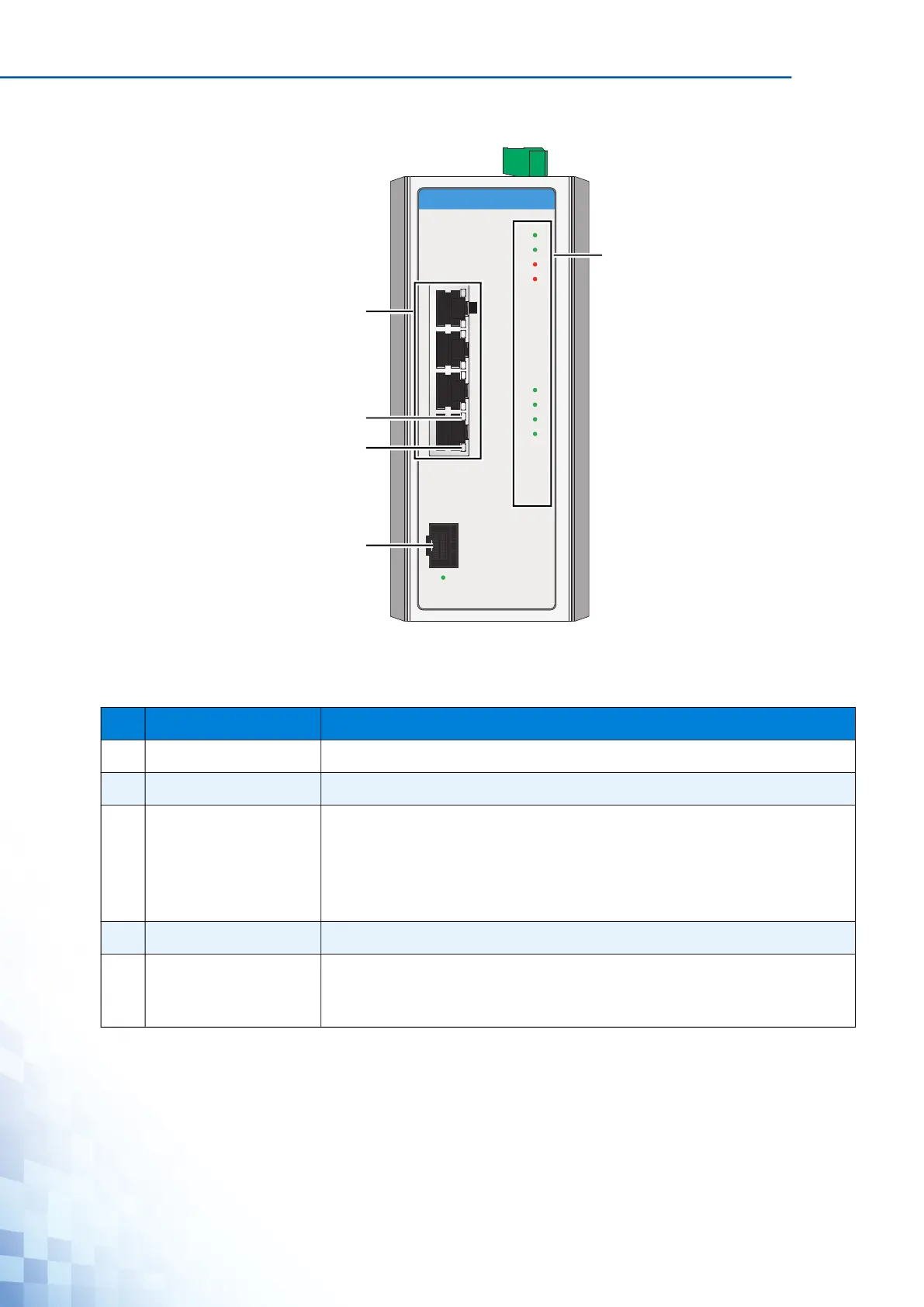

Figure 1-12. Front View
Table 1-15. Front View
No. Item Description
1 ETH port Four 10/100/1000BaseT(X) with PoE ports.
2 LNK/ACT LED Link activity LED.
3 Speed LED Gigabit Ethernet:
Green: 1000M
Amber: 100M
Off: 10M
4 ETH port One 100/1000Base-FX, SFP port.
5 System LED panel See “System LED Panel (only for EKI-5725FP/EKI-5725FPI, EKI-
5624P/EKI-5624PI and EKI-5729P/EKI-5729PI)” on page 23 for fur-
ther details.
P1
P2
P-Fail
Loop
PoE
1
2
3
4
3
4
1
2
EKI-5725FP5FP
5
LNK/ACT
5
1
2
3
4
