PRODUCT OVERVIEW
10
The following view applies to EKI-5729F and EKI-5729FI.

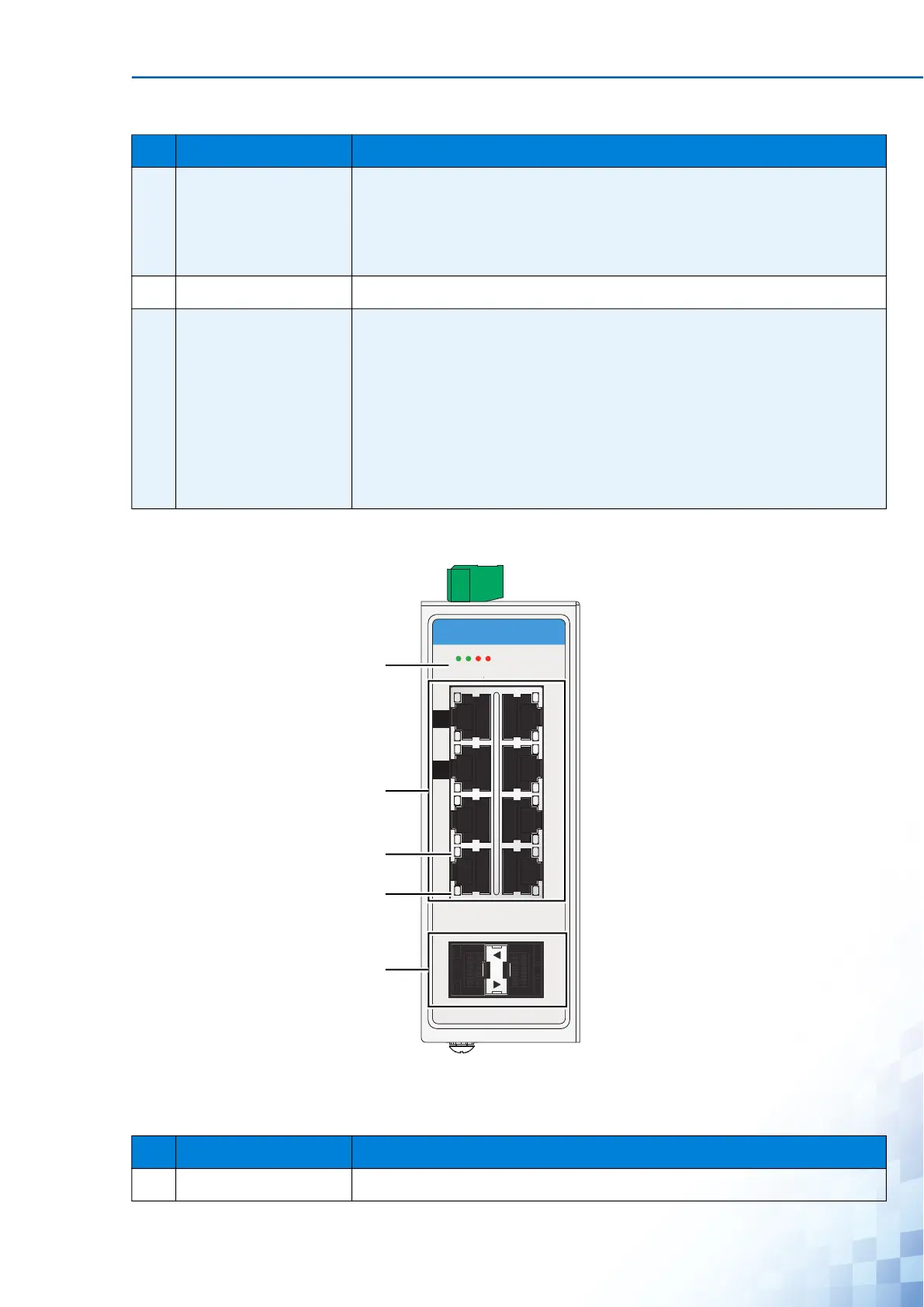

Figure 1-3. Front View
2 ETH port EKI-5528/EKI-5528I: Eight 10/100BaseT(X) ports.
EKI-5728/EKI-5728I: Eight 10/100/1000BaseT(X) ports.
Port numbers in black are designated for port based Quality of Ser-
vice (QoS) functionality.
3 LNK/ACT LED Link activity LED.
4 Speed LED Gigabit Ethernet:
Green: 1000M
Amber: 100M
Off: 10M
Fast Ethernet:
Amber: 100M
Off: 10M
Table 1-6. Front View
No. Item Description
1 System LED panel See “System LED Panel” on page 22 for further details.
Table 1-5. Front View (Continued)
No. Item Description
P2
P1
P-Fail
Loop
8
7
6
5
3
4
109
1
2
EKI-5729F
1
2
5
3
4
