EKI-5000 Series User Manual 14
1.3.4 Bottom View
1.3.4.1 8 x ETH Port Series
The following view applies to EKI-5528-PNMA, EKI-5528-EI, EKI-5528-MB, EKI-
5528-PN, EKI-5629C-EI, EKI-5629C-MB, EKI-5629C-PN, EKI-5528I-EI, EKI-5528I-
MB, EKI-5528I-PN, EKI-5629CI-EI, EKI-5629CI-MB, EKI-5629CI-PN, EKI-5728I-MB,
and EKI-5729FI-MB.

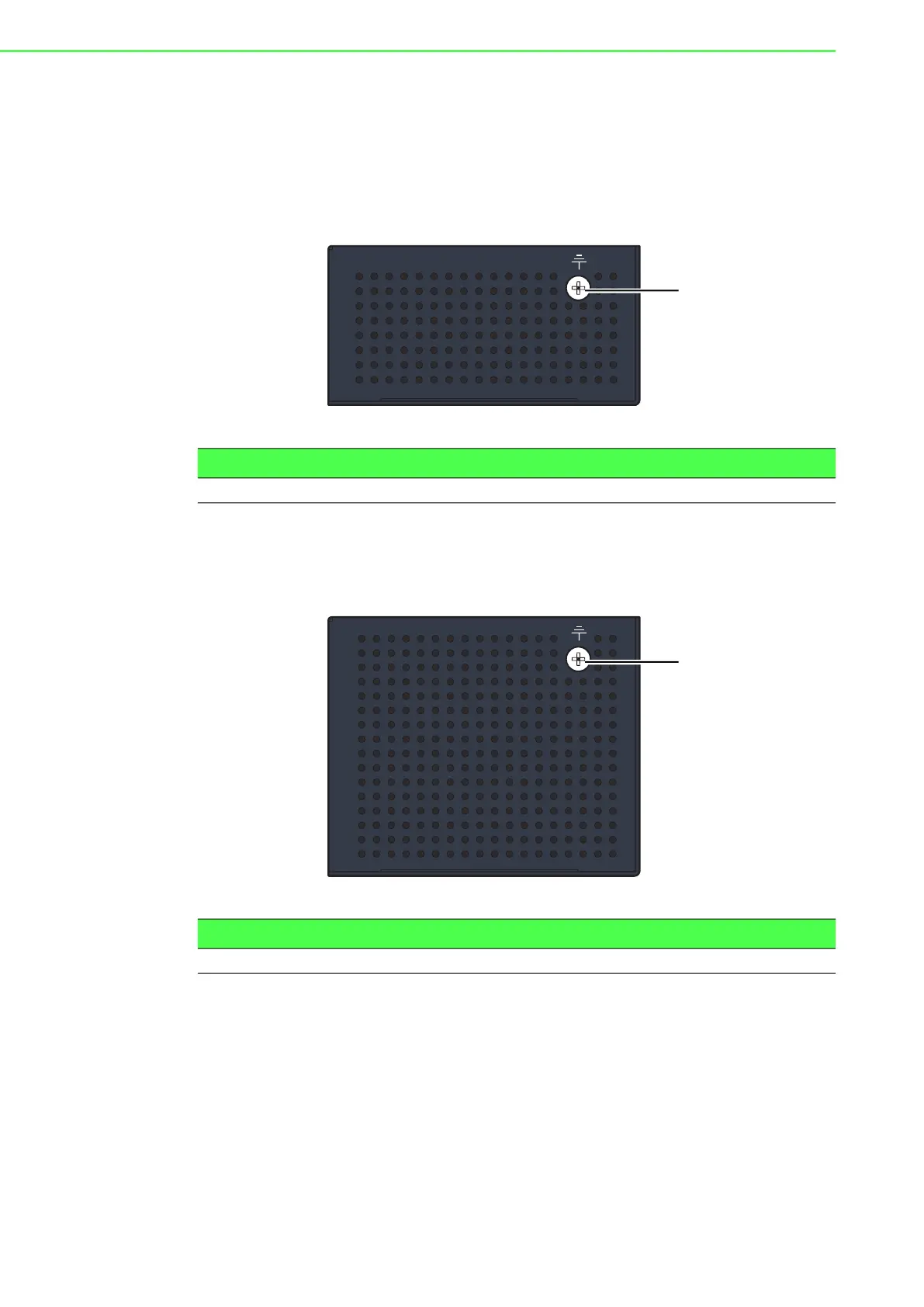

Figure 1.11 Bottom View
1.3.4.2 16 x ETH Ports Series
The following view applies to EKI-5526-EI, EKI-5526-MB, EKI-5526-PN, EKI-5626C-
EI, EKI-5626C-MB, EKI-5626C-PN, EKI-5526I-EI, EKI-5526I-MB, EKI-5526I-PN,
EKI-5626CI-EI, EKI-5626CI-MB, EKI-5626CI-PN, and EKI-5726I-MB.
Figure 1.12 Bottom View
No. Item Description
1.
Ground terminal Screw terminal used to ground chassis.
1
No. Item Description
1.
Ground terminal Screw terminal used to ground chassis.
1
