11 EKI-5000 Series User Manual
1.3.2 Rear View
1.3.2.1 8 x ETH Port Series
The following view applies to EKI-5528-PNMA, EKI-5528-EI, EKI-5528-MB, EKI-
5528-PN, EKI-5629C-EI, EKI-5629C-MB, EKI-5629C-PN, EKI-5528I-EI, EKI-5528I-
MB, EKI-5528I-PN, EKI-5629CI-EI, EKI-5629CI-MB, EKI-5629CI-PN, EKI-5728I-MB,
and EKI-5729FI-MB.

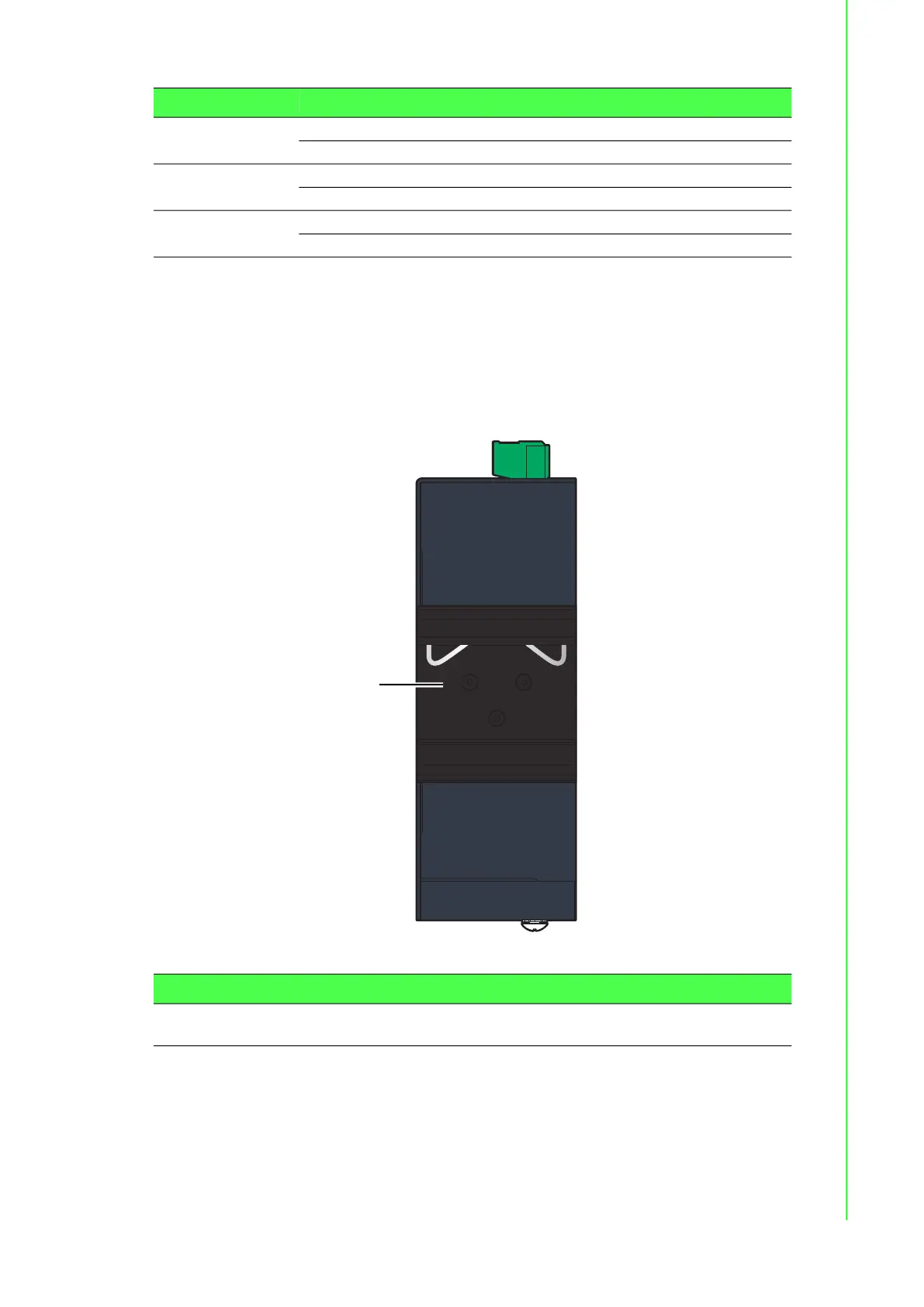

Figure 1.7 Rear View
2.
PW2 LED Solid green Powered up.
Off Powered down or not installed.
3.
P-Fail Solid red When PW1 or PW2 is disconnected, the LED lights.
Off When PW1 and PW2 is connected, the LED is off.
4.
Loop Solid red When loop detected, the LED lights.
Off No loop detected.
No. LED Name LED Color Description
No. Item Description
1.
DIN-Rail mounting
plate
Mounting plate used for the installation to a standard DIN rail.
1
