2.4 Network Connection
The EKI-2728 has 8 x RJ-45 ports that support connection to 10 Mbps Ethernet, 100
Mbps Fast Ethernet, or 1000 Mbps Gigabit Ethernet, and half or full duplex operation.
EKI-2728 can be connected to other hubs/switches through a twisted-pair straight-
through cable or a crossover cable up to 100m long. The connection can be made from
any TX port of the EKI-2728 (MDI-X) to another hub or switch either MDI-X or uplink
MDI port.
The EKI-2728 supports auto-crossover to make networking more easy and flexible.
You can connect any RJ-45 (MDI-X) station port on the switch to any device such as a
switch, bridge or router.
2.5 Power Connection
The EKI-2728 supports dual +12 ~ 48 V
DC
power inputs and power-fail relay output.

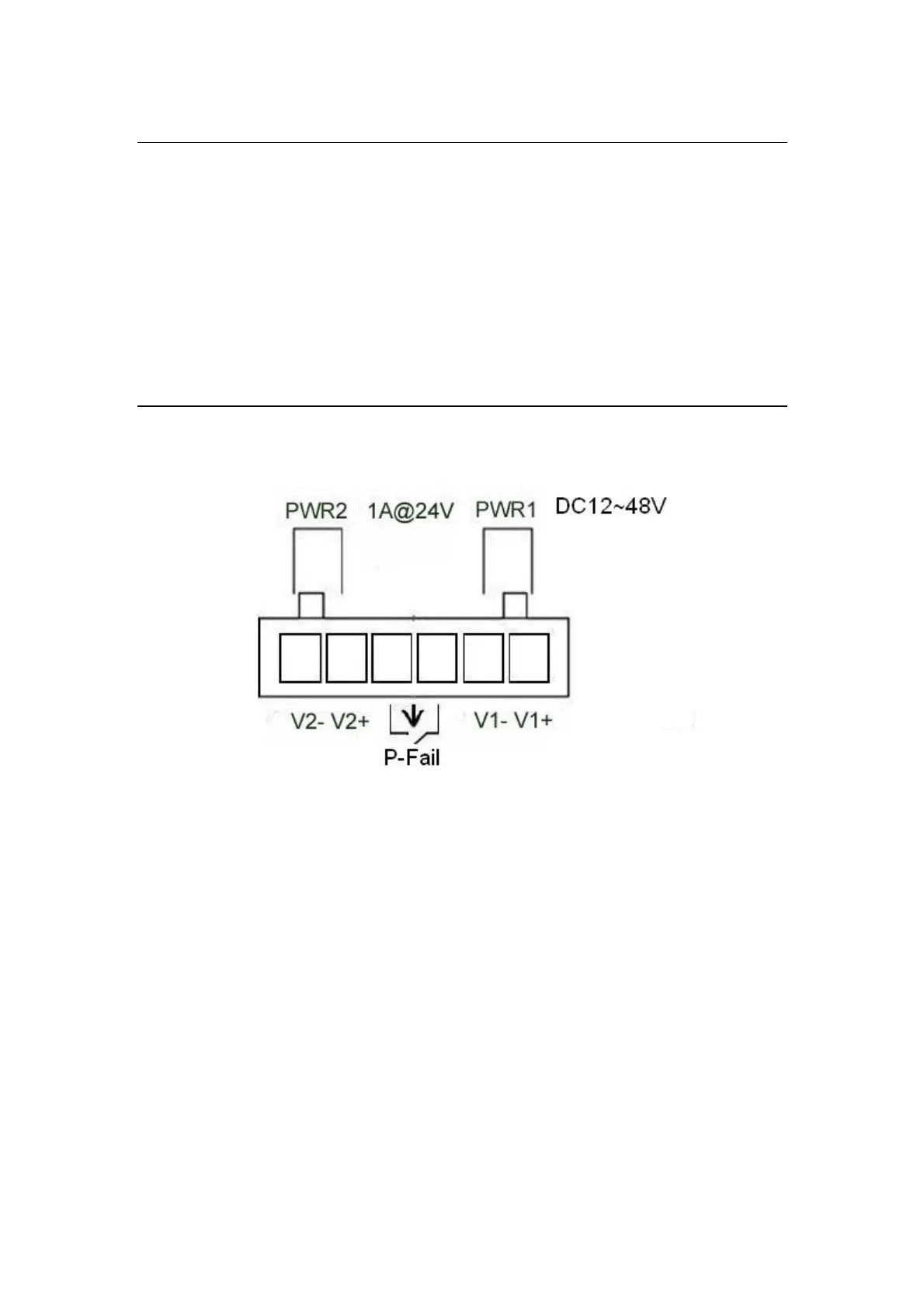

Figure 2.8: Pin Assignment of the Power Connector
You can connect an alarm indicator, buzzer or other signaling equipment through the
relay output. The relay opens if power input 1 or 2 fails (‘Open’ means if you connect
relay output with an LED, the light would be off).
EKI-2728 User Manual.doc 16
