ARK-2250 User Manual 8
2.1 Introduction
The following sections detail the internal jumpers settings and the external connector
pin assignments for different applications.
2.2 Jumpers
2.2.1 Jumper Description
You may configure ARK-2250 to match the needs of your application by setting jump-
ers. A jumper is a metal bridge used to close an electric circuit. It consists of two
metal pins and a small metal clip (often protected by a plastic cover) that slides over
the pins to connect them. To close a jumper, you connect the pins with the clip. To
open a jumper, you remove the clip. Sometimes a jumper will have three pins,
labeled 1, 2, and 3. In this case you would connect either pins 1 and 2, or 2 and 3.

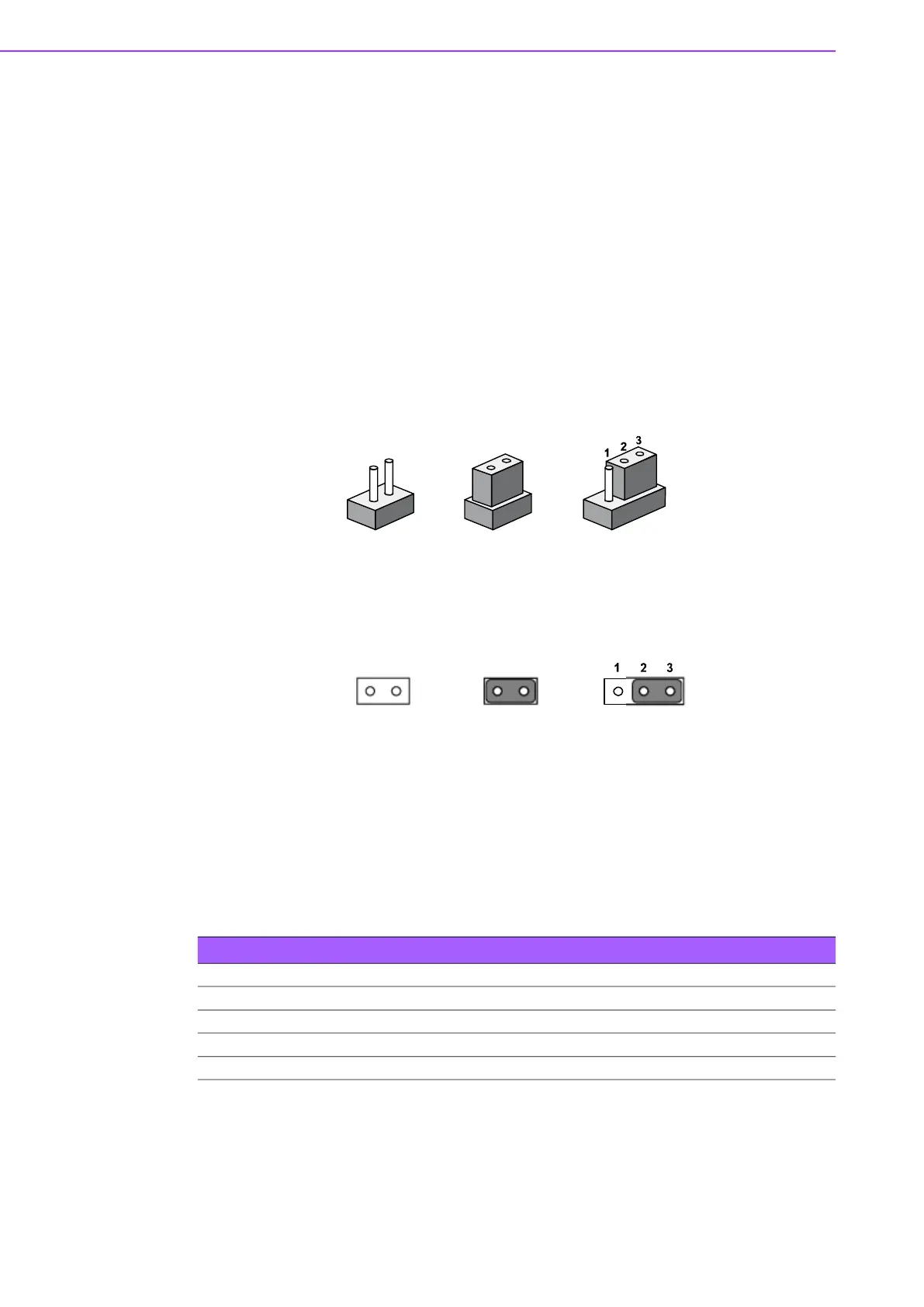

The jumper settings are schematically depicted in this manual as follows.
A pair of needle-nose pliers may be helpful when working with jumpers. If you have
any doubts about the best hardware configuration for your application, contact your
local distributor or sales representative before you make any changes. Generally, you
simply need a standard cable to make most connections.
2.2.2 Jumper List
closed 2-3closedopen
12 12
closed 2-3closedopen
Table 2.1: Jumper Settings
Location Function
J1 Auto Power On Setting
SW2 Clear CMOS
J5 COM3/COM4 Termination
J6 COM1/COM2 Termination
