EI-53 User Manual 12

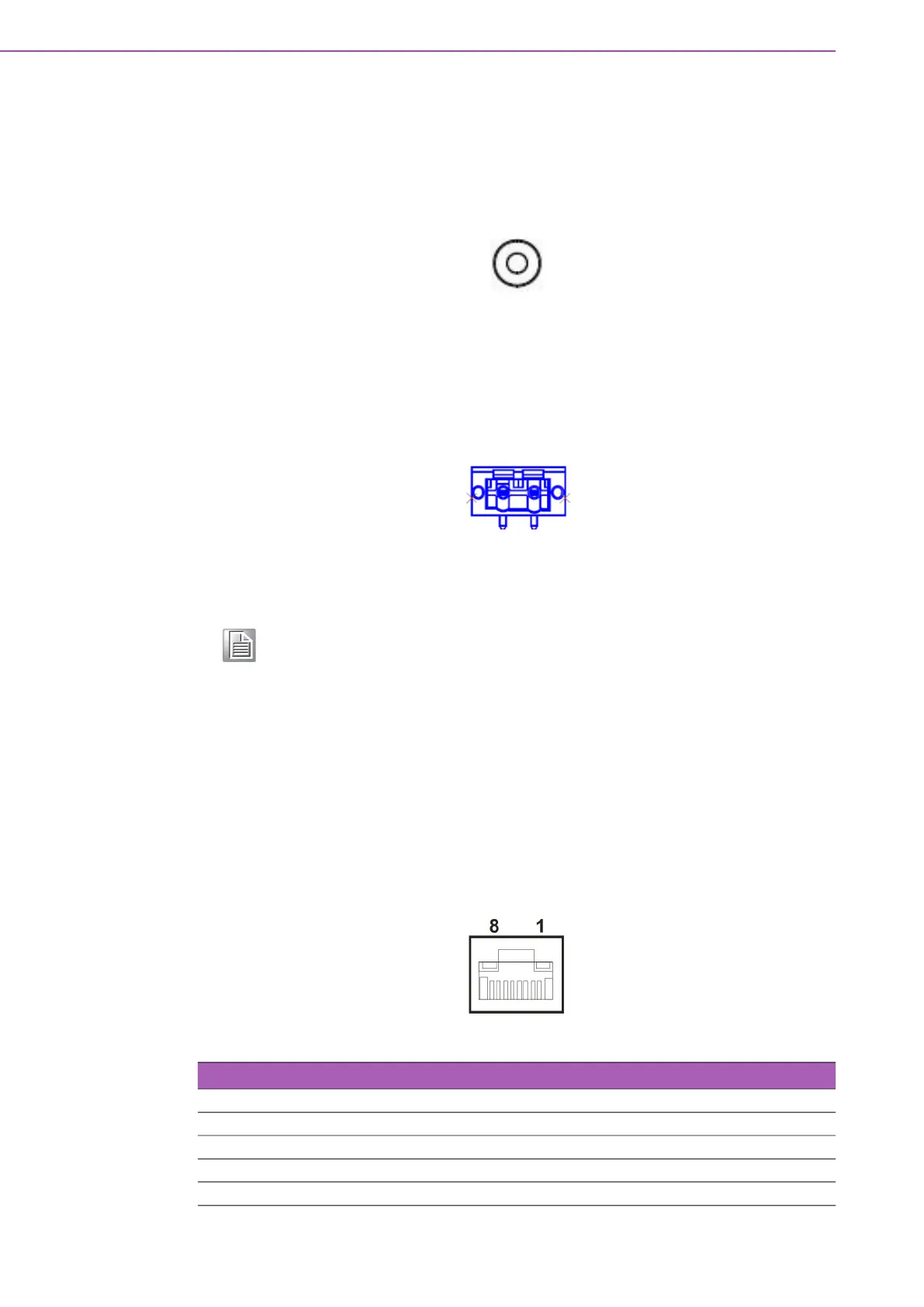

2.4 External I/O
2.4.1 Power On/Off Button
EI-53 features a Power On/Off button with an LED indicators on the top side that
show On status (Green LED).
Figure 2.8 Power On/Off Button
2.4.2 Power Input Connector
EI-53 supports one 2-pin Phoenix terminal power input connector. Connect the posi-
tive and negative power cables to the terminals in the power distribution connector
correctly at the same time.
Figure 2.9 Phoenix Terminal Connector
2.4.3 Ethernet Connector (LAN1/2)
EI-53 is equipped with one Intel® I219-LM and one Intel® I226-LM Ethernet control-
lers that are fully compliant with IEEE 802.3u and 802.3bz 10/100/1000/2500 Mbps
CSMA/CD standards and connected to LAN1 and LAN2. The Ethernet port provides
a standard RJ45 jack connector with LED indicators on the front side to show its
Active/Link status (Green LED) and Speed status (Orange/Yellow LED).
Figure 2.10 Ethernet Connector (LAN1/2)
Note! 1. For supply connections use wires suitable for at least 75°C.
2. The terminal block is suitable for 14 AWG. Torque value 7lb-in User
copper conductors only. Must be installed by skilled person.
3. The terminal block uses two sets of interfaces to make it split to
meet the maximum current limit, and a single pin will be limited
below 16A.
+ -
Table 2.6: Ethernet Connector Pin Definition
Pin 10/100/1000BaseT Signal Name
1 TX+
2 TX-
3 RX+
4 MIDI2+
