ECU-150 Series User Manual 12
3.1 Wiring
3.1.1 Power Supply Wiring
ECU-150 supports power input ranging from and 10V
DC
to 30V
DC
. The terminal
block is suitable for 16-26 AWG, Torque value 3 Lb In. Use copper conductors only.
Must be installed by skilled personnel.

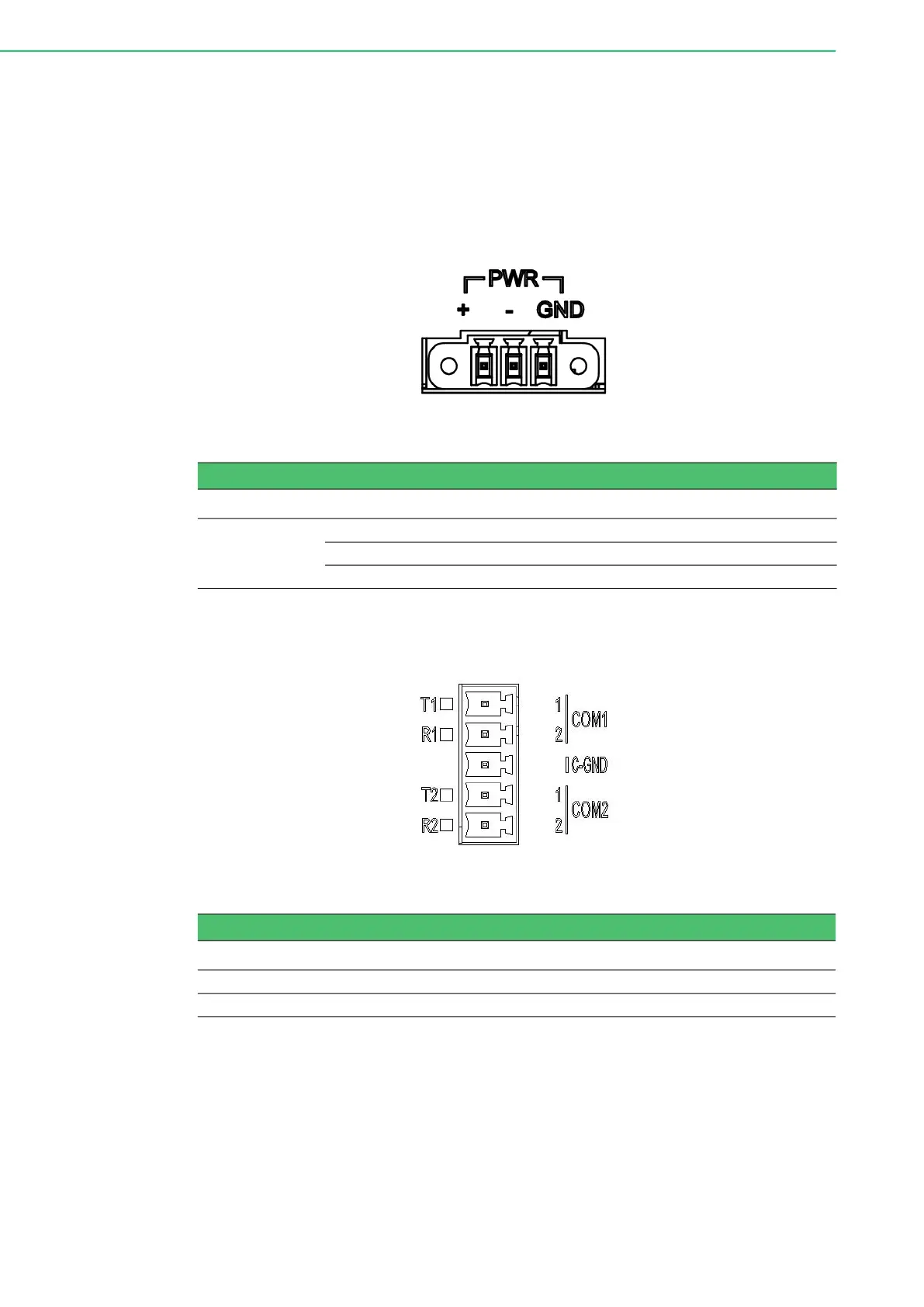

Figure 3.1 Power Supply Wiring
3.1.2 Communication Ports
Figure 3.2 RS-232/485 Serial Ports (COM1~ COM2)
Table 3.1: DC Power Input Connector Pin Definition
Function Pin Screen Printing Function Description
Power Input
1 + PWR V+ DC power input PIN
2 - PWR V- DC power input PIN
3 GND GND
Table 3.2: RS-232/485 Serial Ports (Pin Assignments)
Pins 1 2 3
RS-232 Tx Rx GND
RS-485 Data- Data+ GND
