13 DS-580 User Manual
Chapter 2 Hardware Installation
2.3.4 Ethernet Connector (LAN)
DS-580 provides two RJ45 LAN interface connectors,they are fully compliant with
IEEE 802.3u 10/100/1000 Base-T standards. The Ethernet port provides a standard
RJ-45 jack connector with LED indicators on the front side to show its Active/Link sta-
tus and speed status.

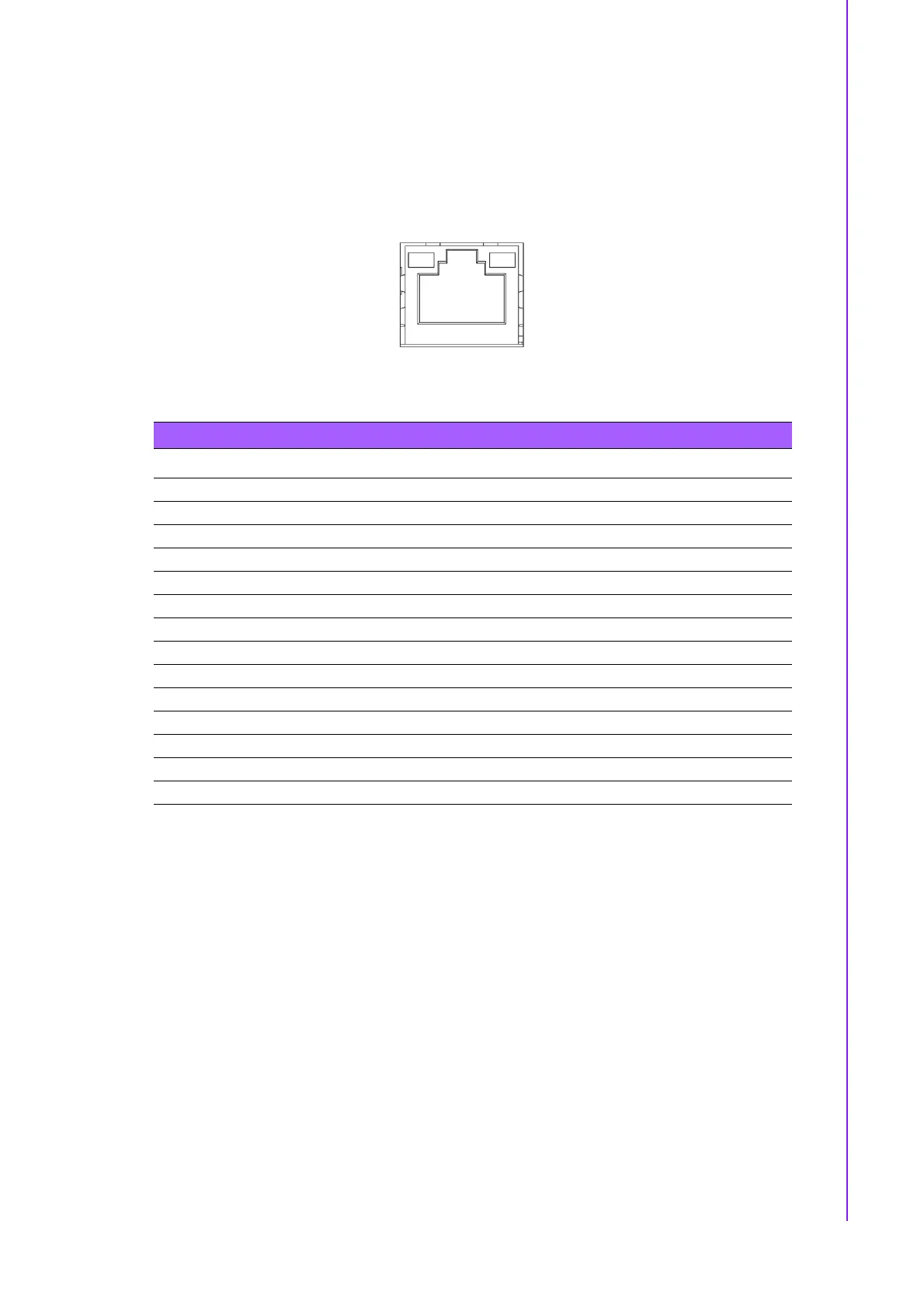

Figure 2.11 LAN connector
Table 2.5: LAN Connector Pin Assignments
Pin Signal Name
1MDI0+
2MDI0-
3MDI1+
4MDI1-
5GND
6GND
7MDI2+
8MDI2-
9MDI3+
10 MDI3-
11 VCC
12 ACT
13 Link100#
14 Link1000#
