11 DS-580 User Manual
Chapter 2 Hardware Installation
2.3.2 HDMI Connector
DS-580 HDMI (High-Definition Multimedia Interface) connectors provide all-digital
audio/video interface to transmit the uncompressed audio/video signals and are
HDCP compliant. Connect the HDMI audio/video device to this port. HDMI technol-
ogy can support a maximum resolution of 3840 x 2160p (Ultra HD 4K) but the actual
resolutions supported depend on the monitor being used.

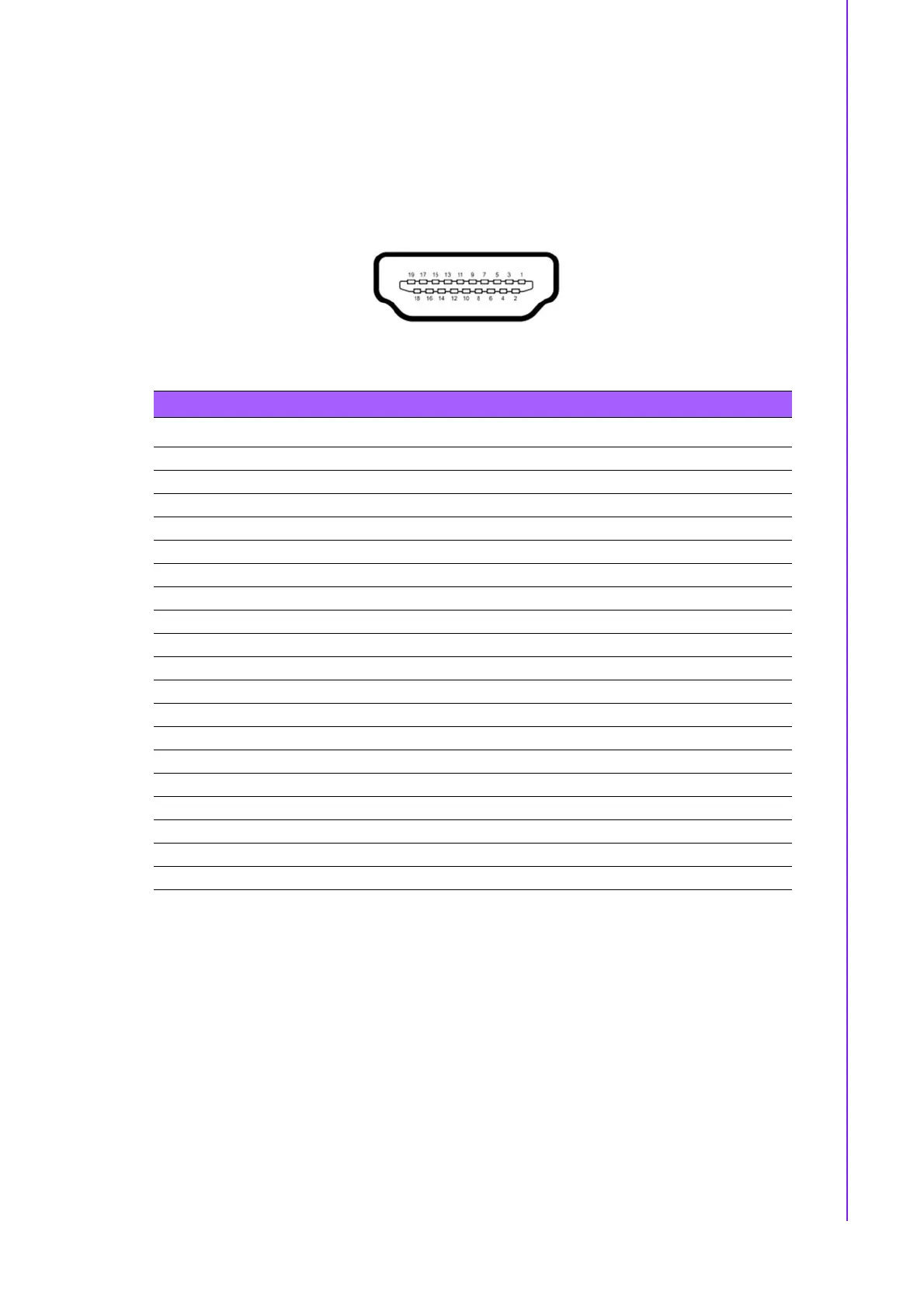

Figure 2.9 HDMI connector
Table 2.3: HDMI Connector Pin Assignments
Pin Signal Name
1TMDS Data2+
2GND
3TMDS Data2-
4TMDS Data1+
5GND
6TMDS Data1-
7TMDS Data0+
8GND
9TMDS Data0-
10 TMDS Clock+
11 GND
12 TMDS Clock-
13 NC
14 NC
15 SCL
16 SDA
17 GND
18 +5 V Power
19 Detect
