7 DS-450 User Manual
Chapter 2 Hardware Configuration
2.1.3 USB 3.0 Gen2
DS-450 supports 2 x USB 3.0 interfaces. The USB interfaces complies with USB
UHCI, Rev. 3.0 standards. Please refer to Table 2.5 for its pin assignments. USB 3.0
connectors contain legacy pins to interface with USB 2.0 devices, and a new set of
pins for USB 3.0 connectivity.

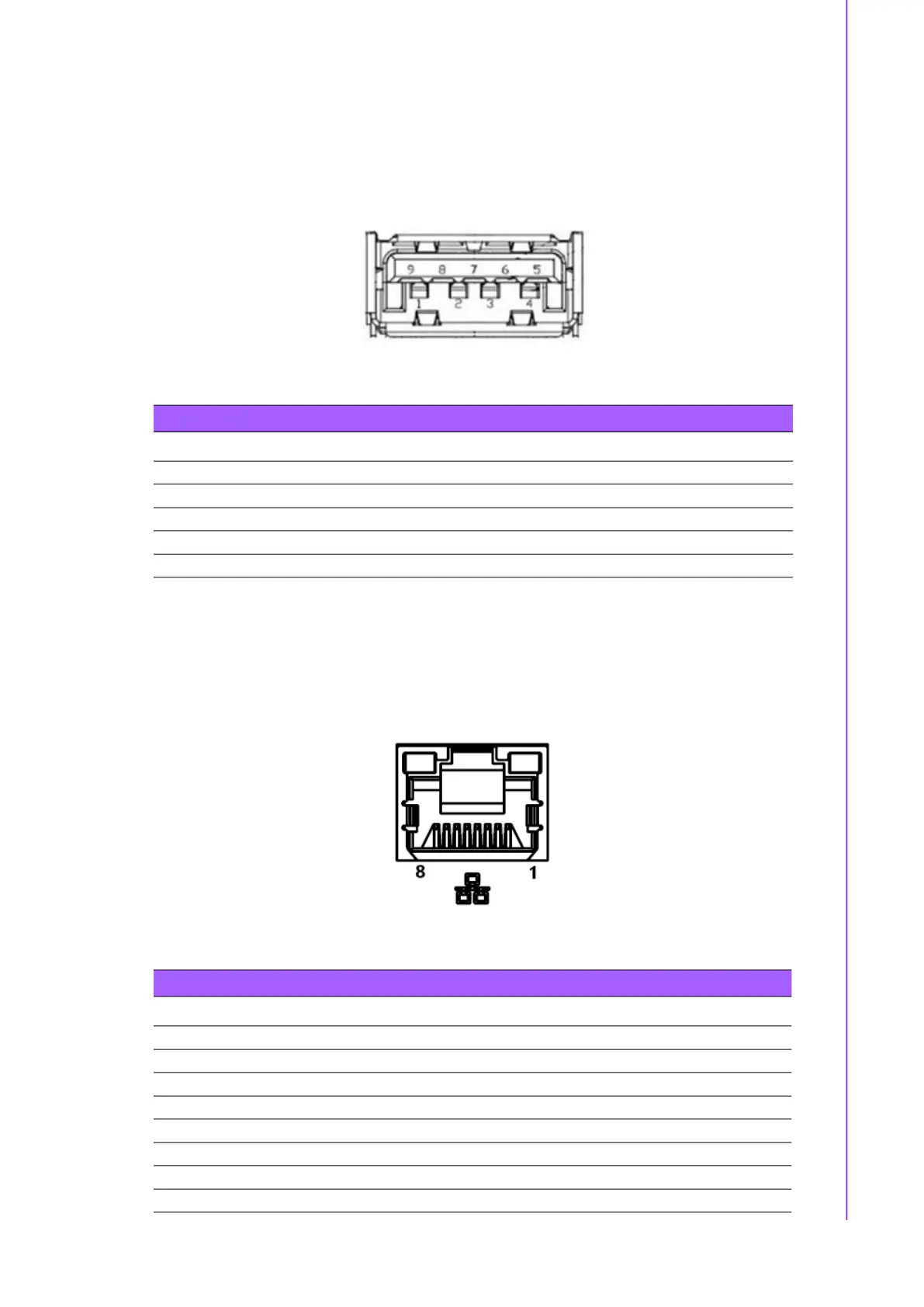

Figure 2.5 USB connector
2.1.4 LAN Connector
DS-450 provides two RJ-45 LAN interface connector, fully compliant with
IEEE802.3u 10/100/1000 Base-T CSMA/CD standards. The Ethernet port provides a
standard RJ-45 jack connector with LED indicators to show its Active/Link status and
speed status.
Figure 2.6 RJ45 connector
Table 2.1: USB 3.0 Connector
Pin Signal Name Pin Signal Name
1 +5V 2 USB_Data-
3 USB_Data+ 4 GND
5 SSRX- 6 SSRX+
7 GND 8 SSTX-
9 SSTX+
Table 2.2: LAN Port Pin Assignments
Pin Signal
1 MDI0+
2 MDI0-
3 MDI1+
4 MDI1-
5 GND
6 GND
7 MDI2+
8 MDI2-
