DS-230
Series User Manual
20
2.1.5 LAN Connector
DS-230 provides one RJ-45 LAN interface connector, fully compliant with IEEE802.3u
10/100/1000/2500 Base-T CSMA/CD standards. The Ethernet port provides a standard RJ-
45 jack connector with LED indicators to show its Active/Link status and speed status.

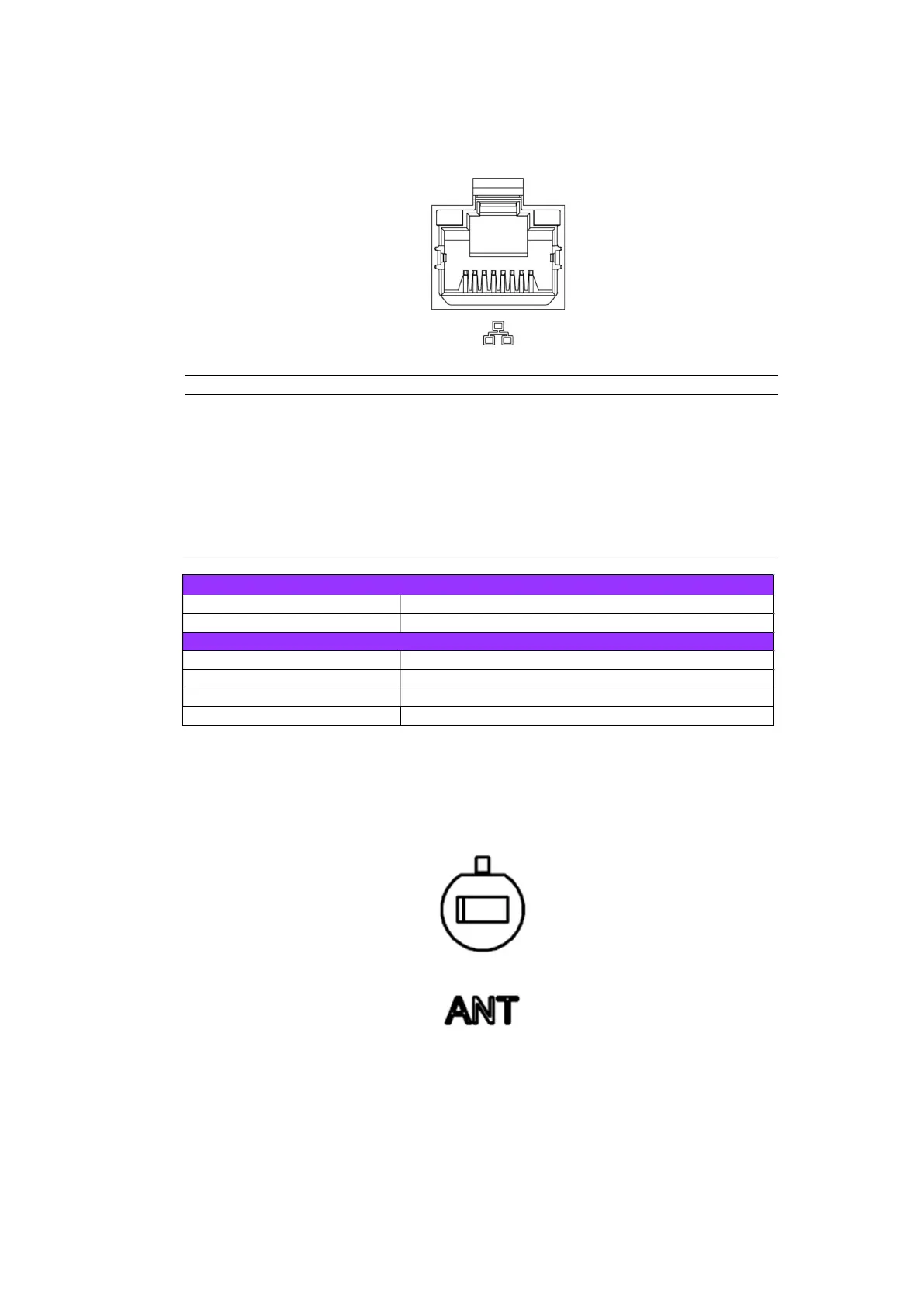

Figure2.9：RJ45 connector
LAN Port Pin Assignments
Pin Signal
1 MDI0+
2 MDI0-
3 MDI1+
4 MDI1-
5 GND
6 GND
7 MDI2+
8 MDI2-
Right side LED: Green LED
Link Status Always turn on without transmitting/receiving data
Activity status Flash
Left side LED: Green/Orange LED
Status Display
10Mbps Always off
100Mbps Green
1000Mbps Orange
2.1.6 Wi-Fi Antenna
DS-230 provides two WiFi antenna connectors to connect with SMA antenna.
Figure2.10：SMA connector
